Test I: Traction Control System Cannot Be Disabled

PINPOINT TEST I: THE TRACTION CONTROL SYSTEM CANNOT BE DISABLED

Test I1:

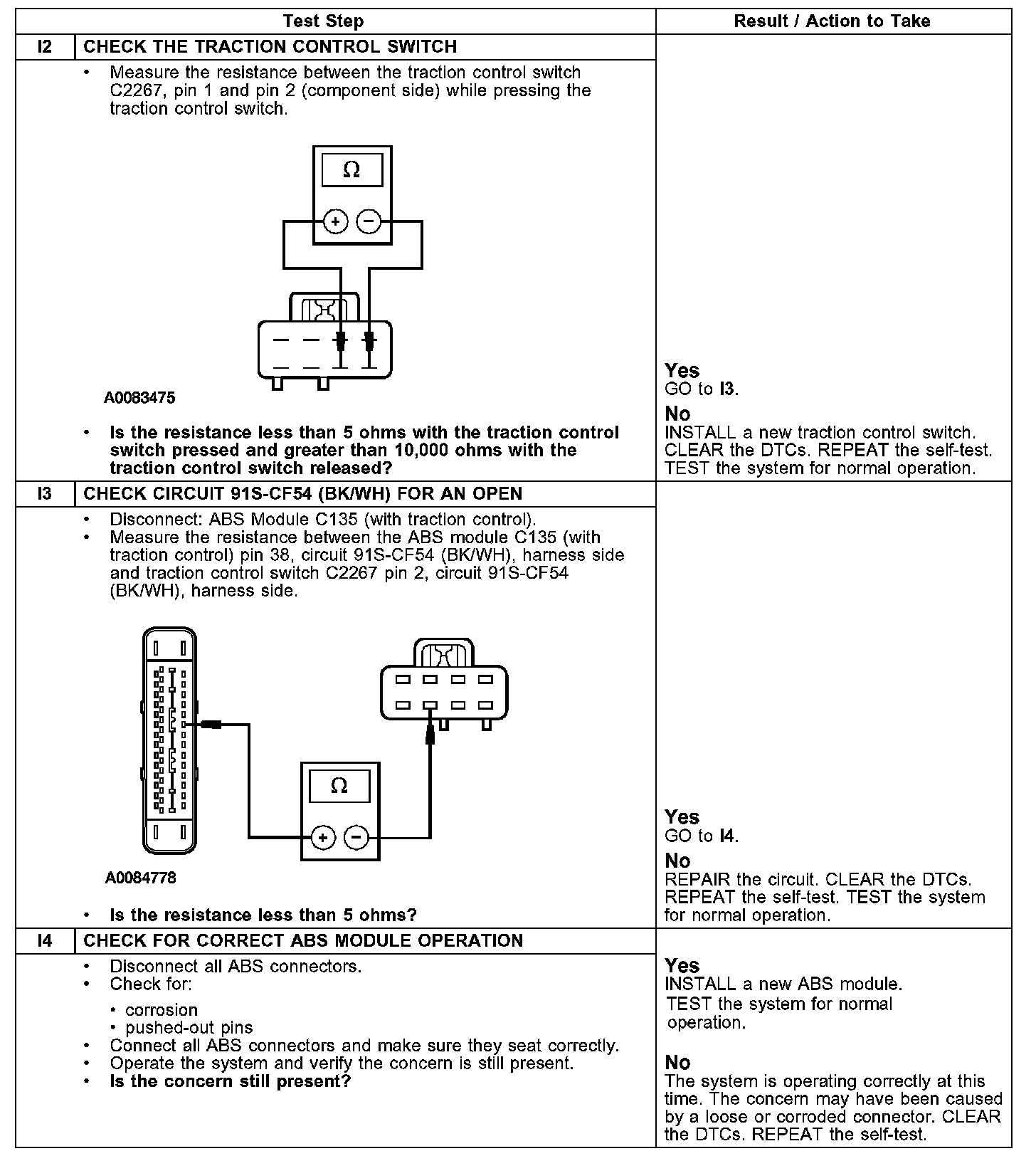

Test I2-I4:





CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.
