Fog/Driving Lamp: Service and Repair

FOG LAMP

Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Raise and support the vehicle.

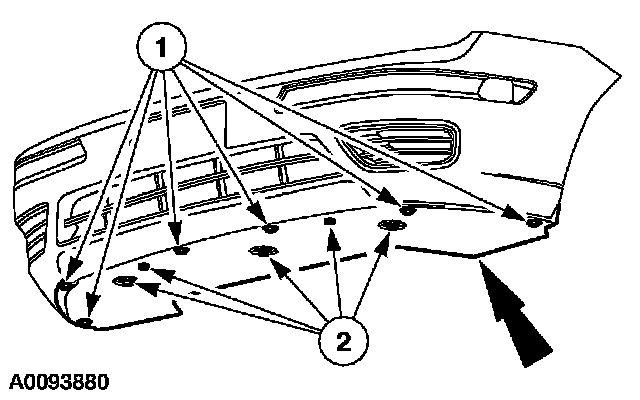

2. NOTE: Two bolts are located in the wheel well opening and not shown in the graphic.

Remove the lower radiator air deflector.
1 Remove the 8 lower radiator air deflector bolts.
2 Remove the pin-type retainers.

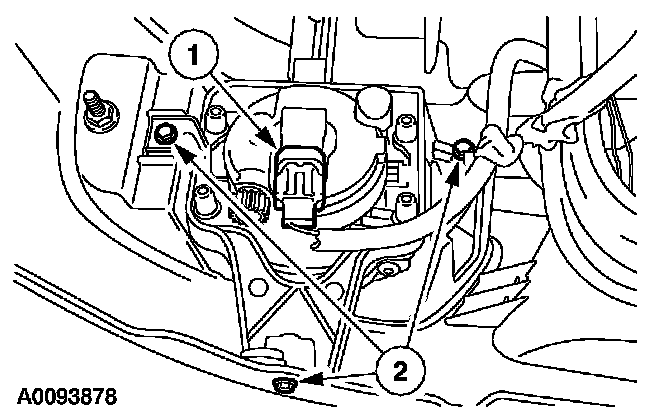

3. Remove the front fog lamp assembly.
1 Disconnect the electrical connector.
2 Remove the front fog lamp bolts.

4. To install, reverse the removal procedure.
- If necessary, adjust the fog lamps.
