Transfer Shaft

Transfer Shaft

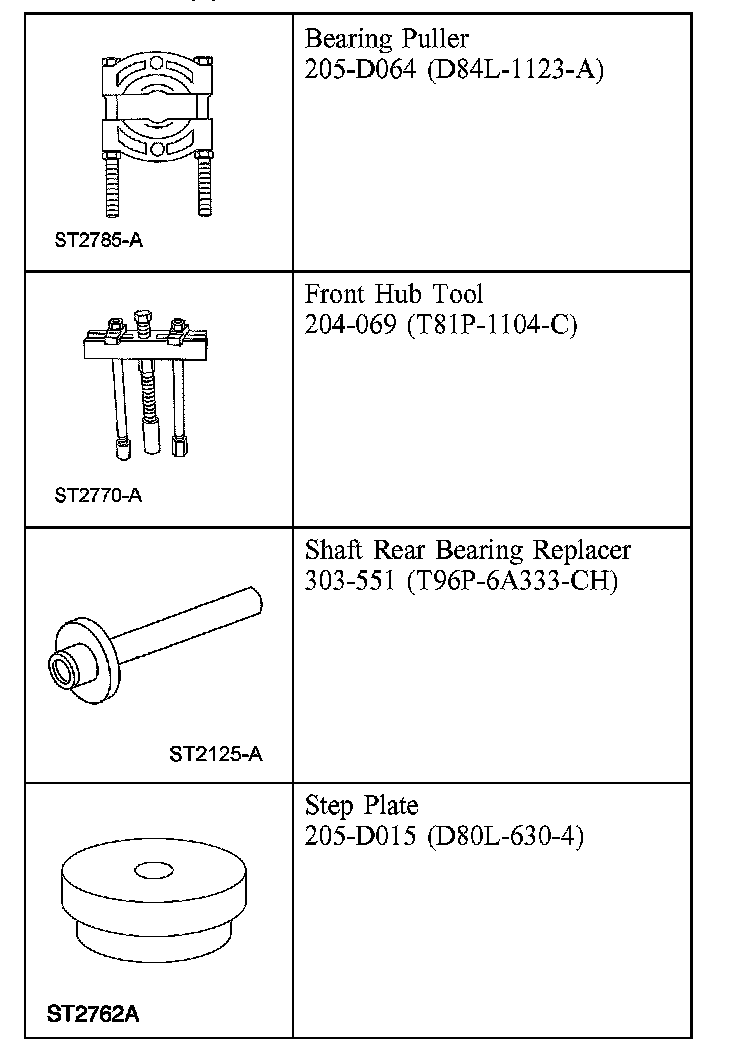

Special Tool(s)

Disassembly

1. Using the special tools, remove the right-hand side transfer shaft gear bearing.

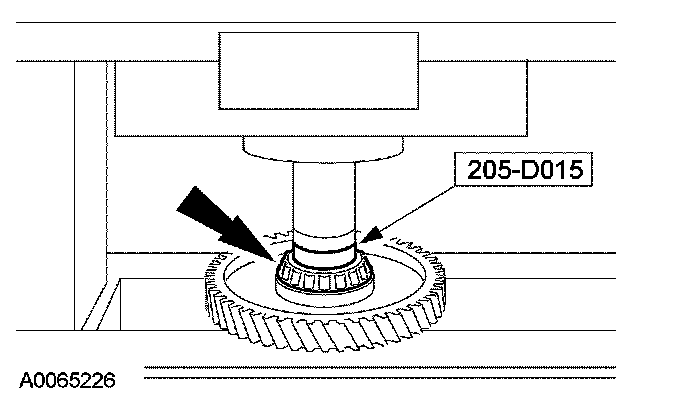

2. Using the special tool and a press, remove the left-hand side transfer shaft gear bearing while separating the gears.

Assembly

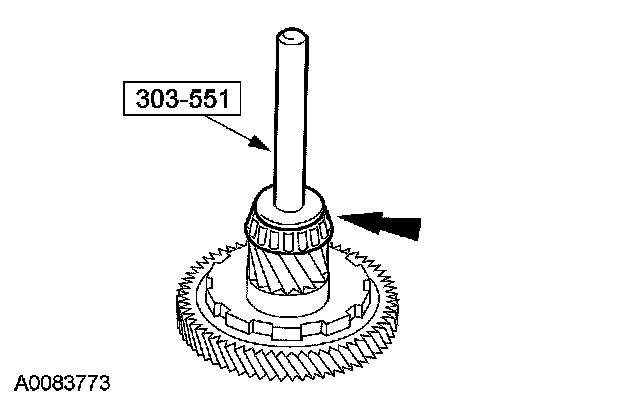

1. Using the special tool, install the right-hand side transfer shaft gear and park gear assembly.

2. Using the special tool, assemble the gears and install the left-hand side transfer shaft gear bearing.
