Windshield Wiper Motor

WINDSHIELD WIPER MOTOR

Removal

1. NOTE: Make sure the windshield wiper motor is in the park position.

Remove the cowl panel.







2. Remove the cowl panel support brace.

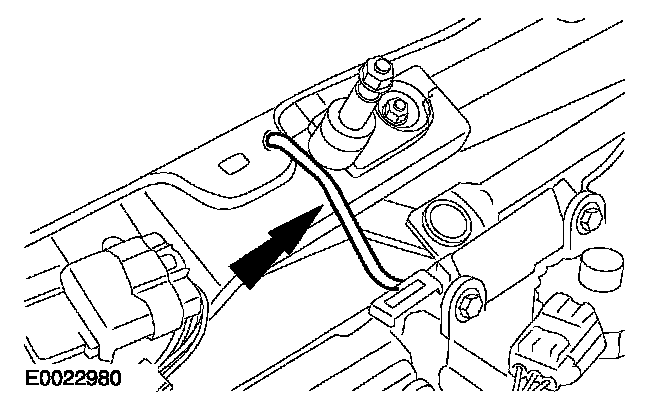

3. Disconnect the windshield wiper motor electrical connector.

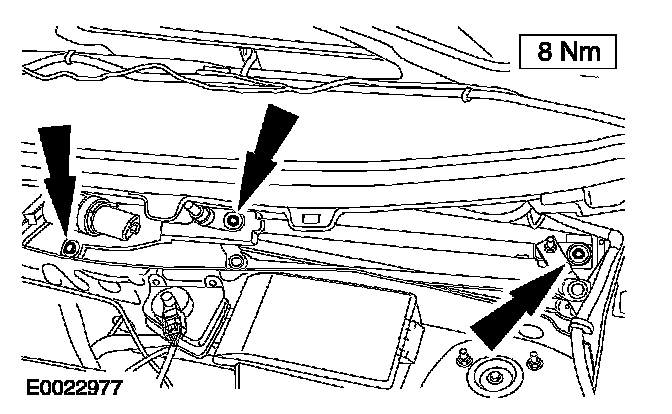

4. Remove the bolts and the windshield wiper motor and linkage.
- Remove the wiper motor protective cap.







5. Mark the position of the windshield wiper crank in relation to the wiper motor bracket to aid installation.

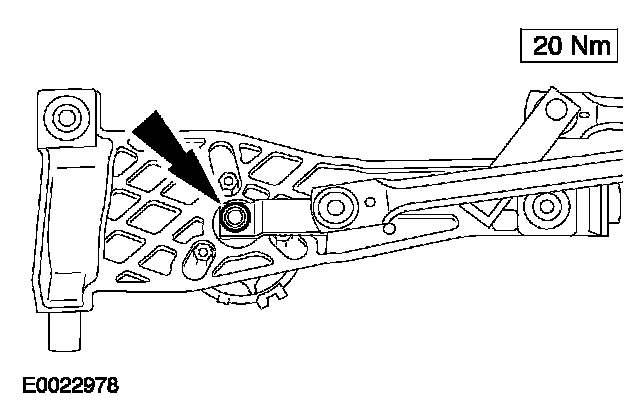

6. Remove the windshield wiper crank nut.

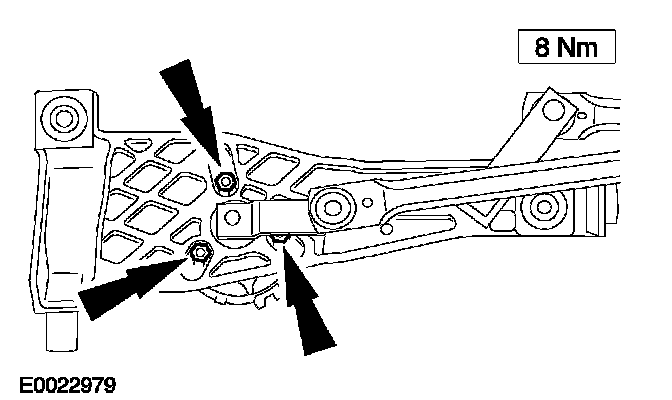

7. Remove the bolts and the windshield wiper motor.

Installation
1. To install, reverse the removal procedure.
