Test L: The Smart Lock Does Not Operate Correctly

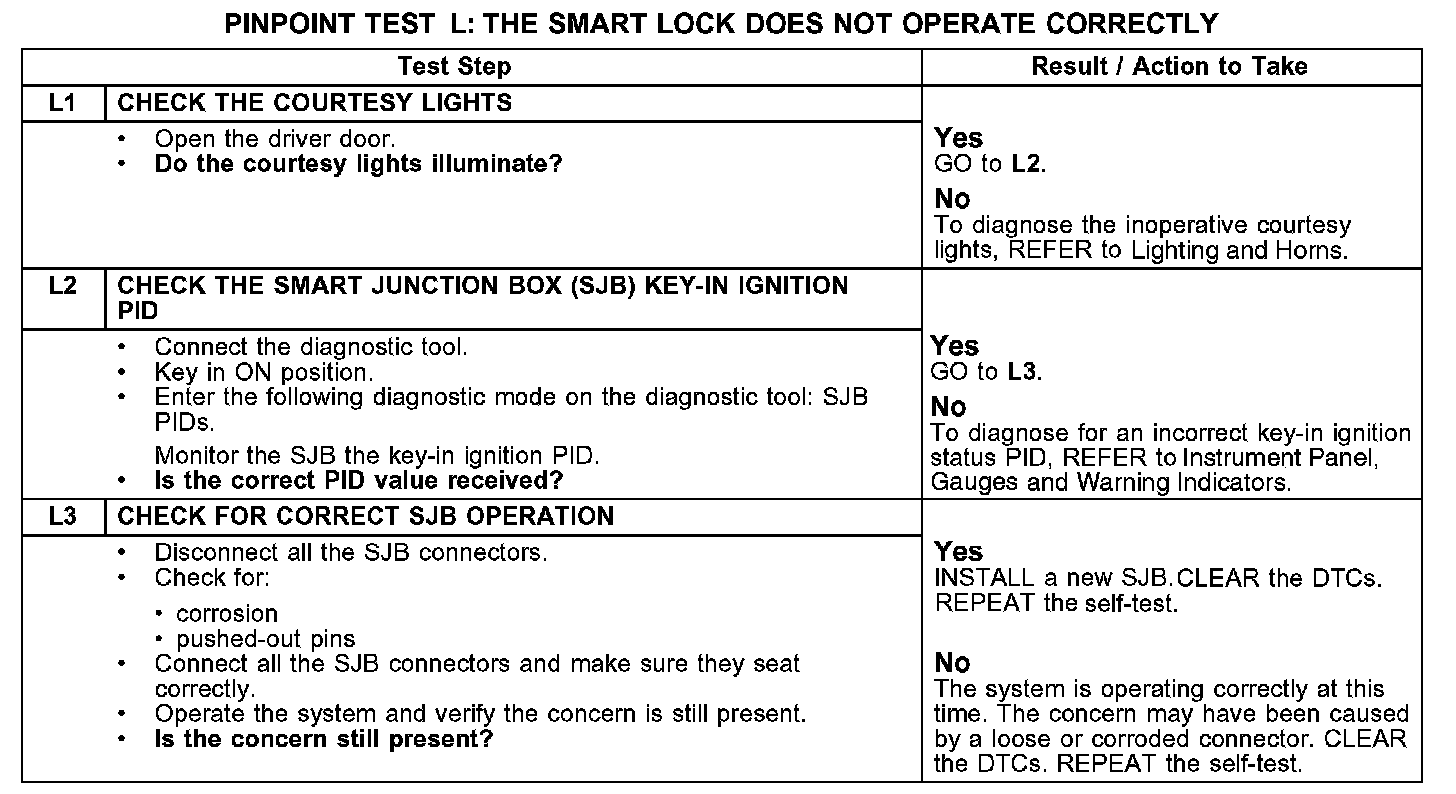

PINPOINT TEST L: THE SMART LOCK DOES NOT OPERATE CORRECTLY

L1-L3:

Normal Operation
Smart unlocking unlocks the door when the following conditions are met:
- key in the ignition
- the driver door is open
- all the passenger doors are closed
- the keycode programming and transmitter identification code (TIC) programming modes are not active

Possible Causes
- driver door ajar switch
- smart junction box (SJB)
