Test M: DTC C1991 - Module Calibration Failure

PINPOINT TEST M: DTC C1991 - MODULE CALIBRATION FAILURE

NOTE: The stability assist lamp flashes when a system calibration is required. Calibration is required after certain diagnostic trouble codes (DTCs) are cleared.

NOTE: Make sure the vehicle is not on a hoist and is sitting on level ground before carrying out stability assist module calibration.

Normal Operation
The stability assist system needs to be recalibrated whenever a component specific to the system is disconnected or a new component is installed.

Possible Causes
^ anti-lock brake system (ABS) module
^ sensor cluster
^ steering wheel rotation sensor

Test M1:

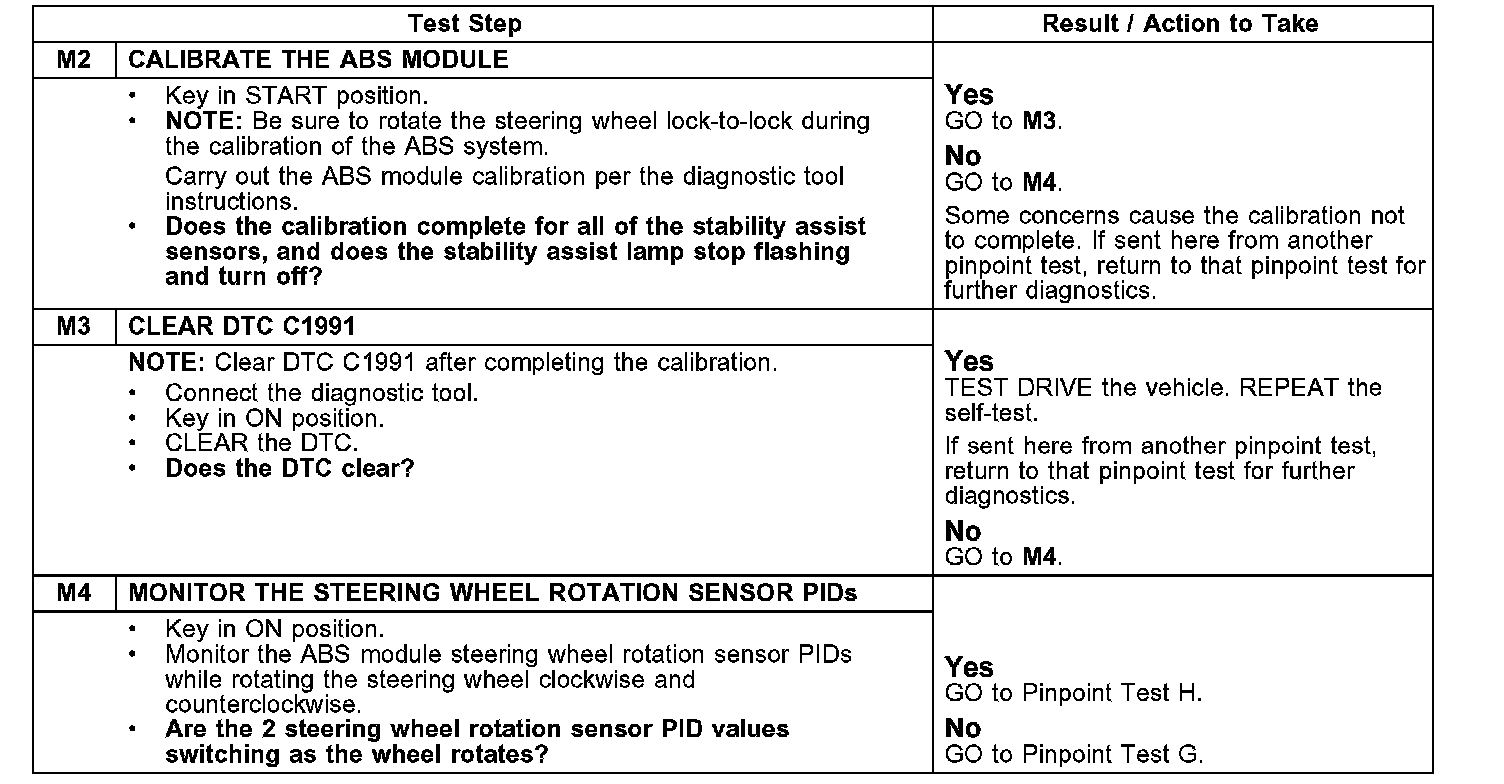

Tests M2-M4:
