Fog/Driving Lamp: Service and Repair

FOG LAMP

Removal and Installation

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

1. Remove the front wheel and tire.

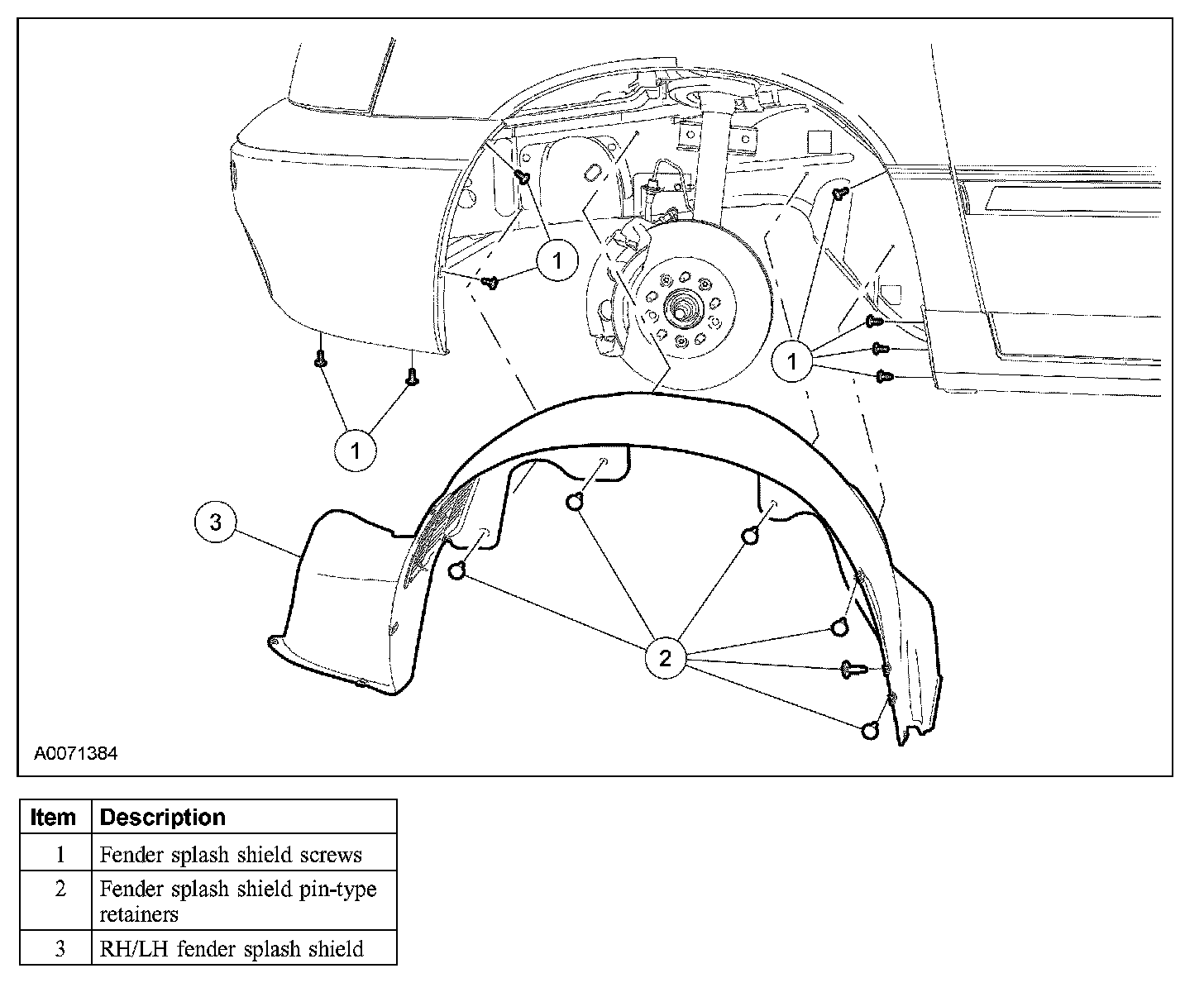

2. Remove the 8 fender splash shield screws.
3. Remove the 6 fender splash shield pin-type retainers.
4. Remove the fender splash shield.
5. Disconnect the electrical connector.

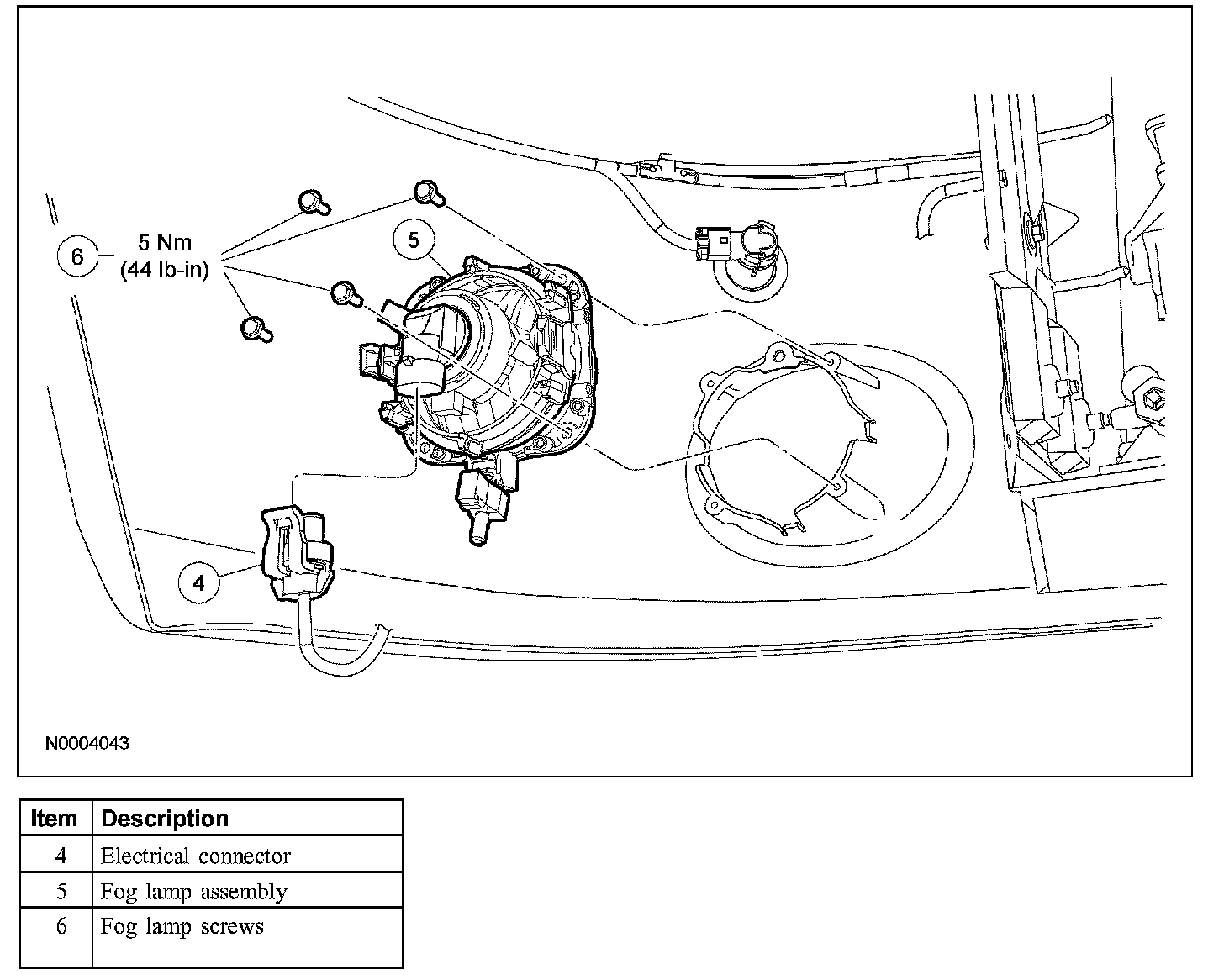

6. Remove the 4 fog lamp screws.
7. Remove the fog lamp assembly.
8. To install, reverse the removal procedure.
