Restraints Control Module (RCM) Diagnostic Trouble Code (DTC) Priority Table

DIAGNOSTIC TROUBLE CODES (DTCs)

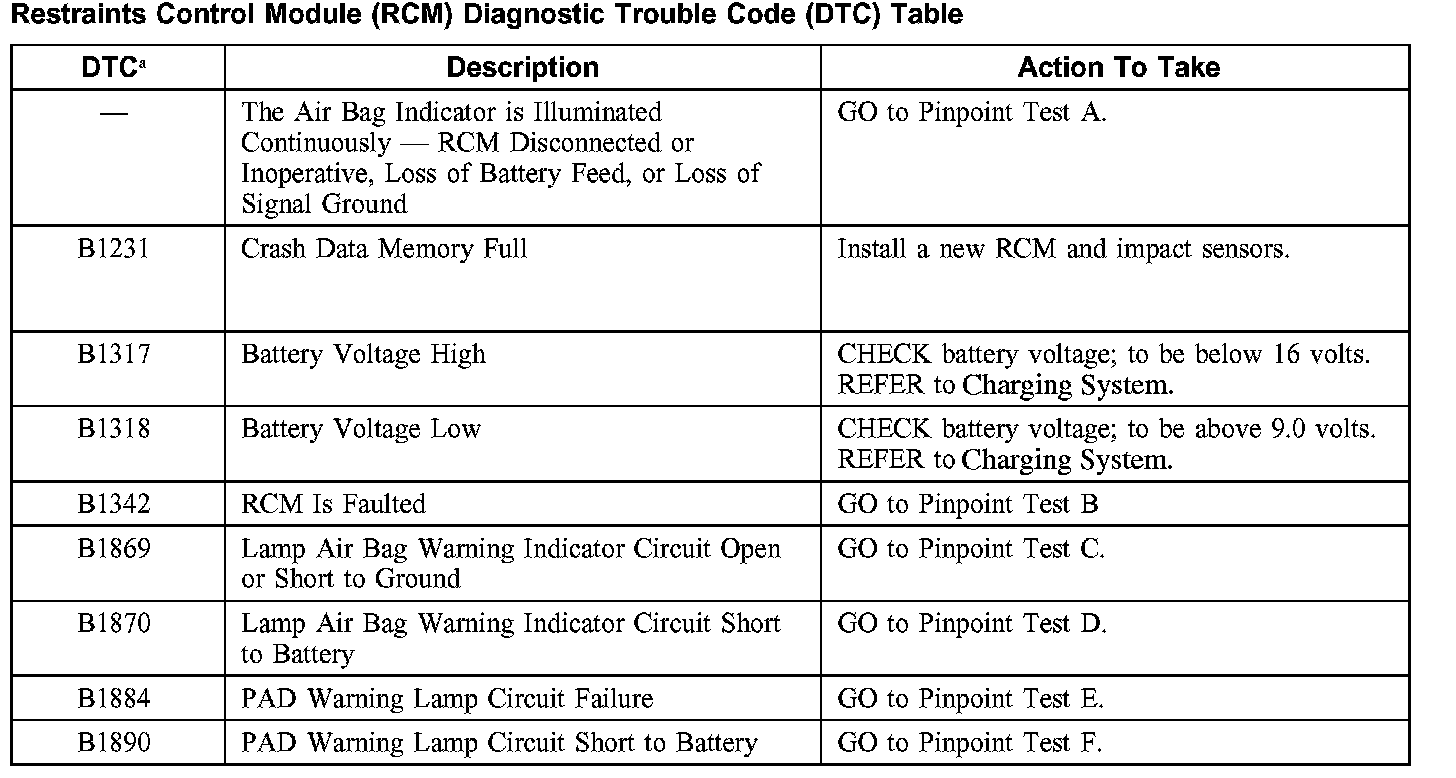

B1231-B1890:

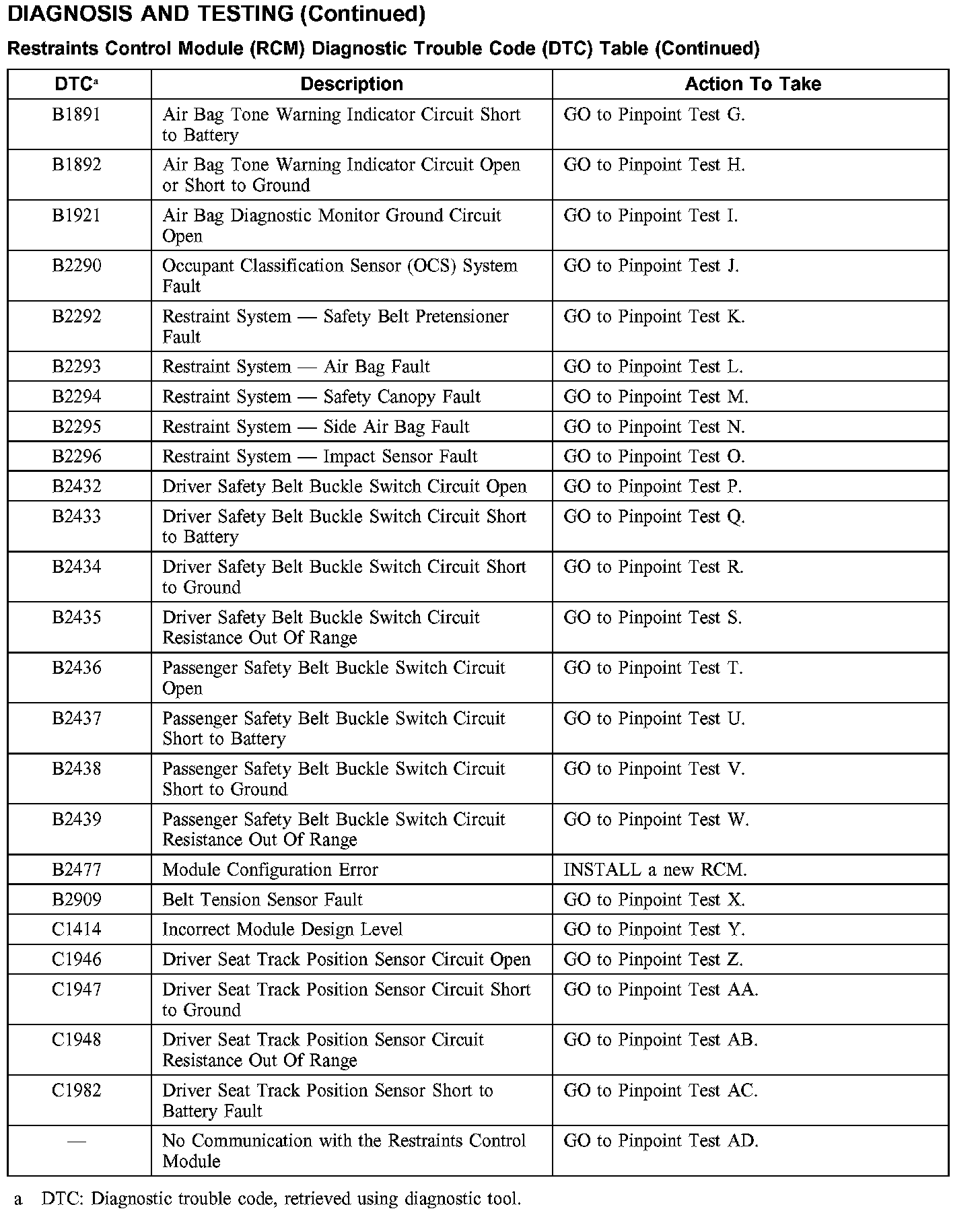

B1891-B1982:






The DTCs can be retrieved from the restraints control module (RCM) with a diagnostic tool via the data link connector (DLC).
