Seat - Exploded View, Second Row

SEAT - EXPLODED VIEW, SECOND ROW

Removal and Installation

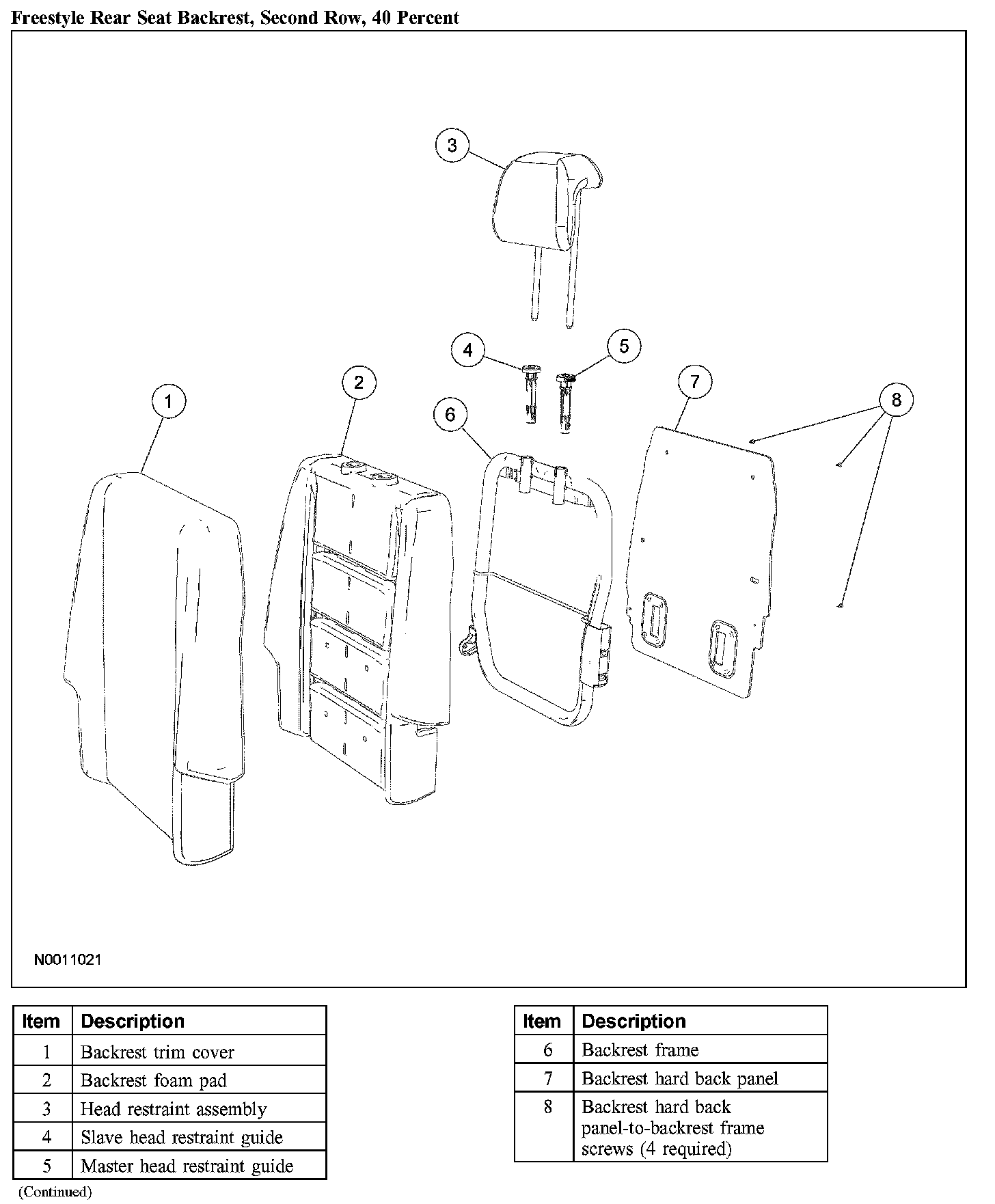

Rear Seat Backrest, Second Row, 40 Percent:

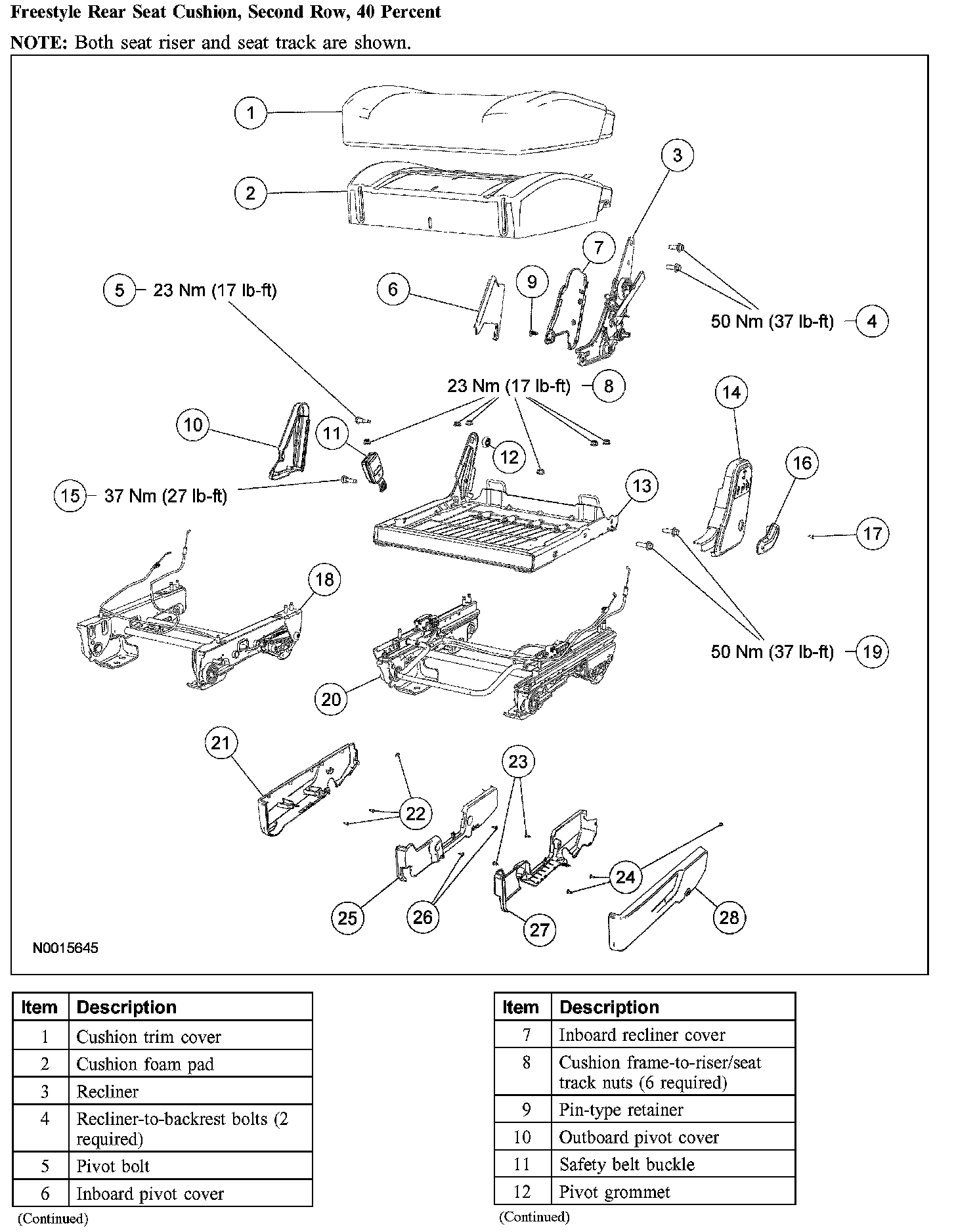

Rear Seat Cushion, Second Row, 40 Percent (Part 1):

Rear Seat Cushion, Second Row, 40 Percent (Part 2):

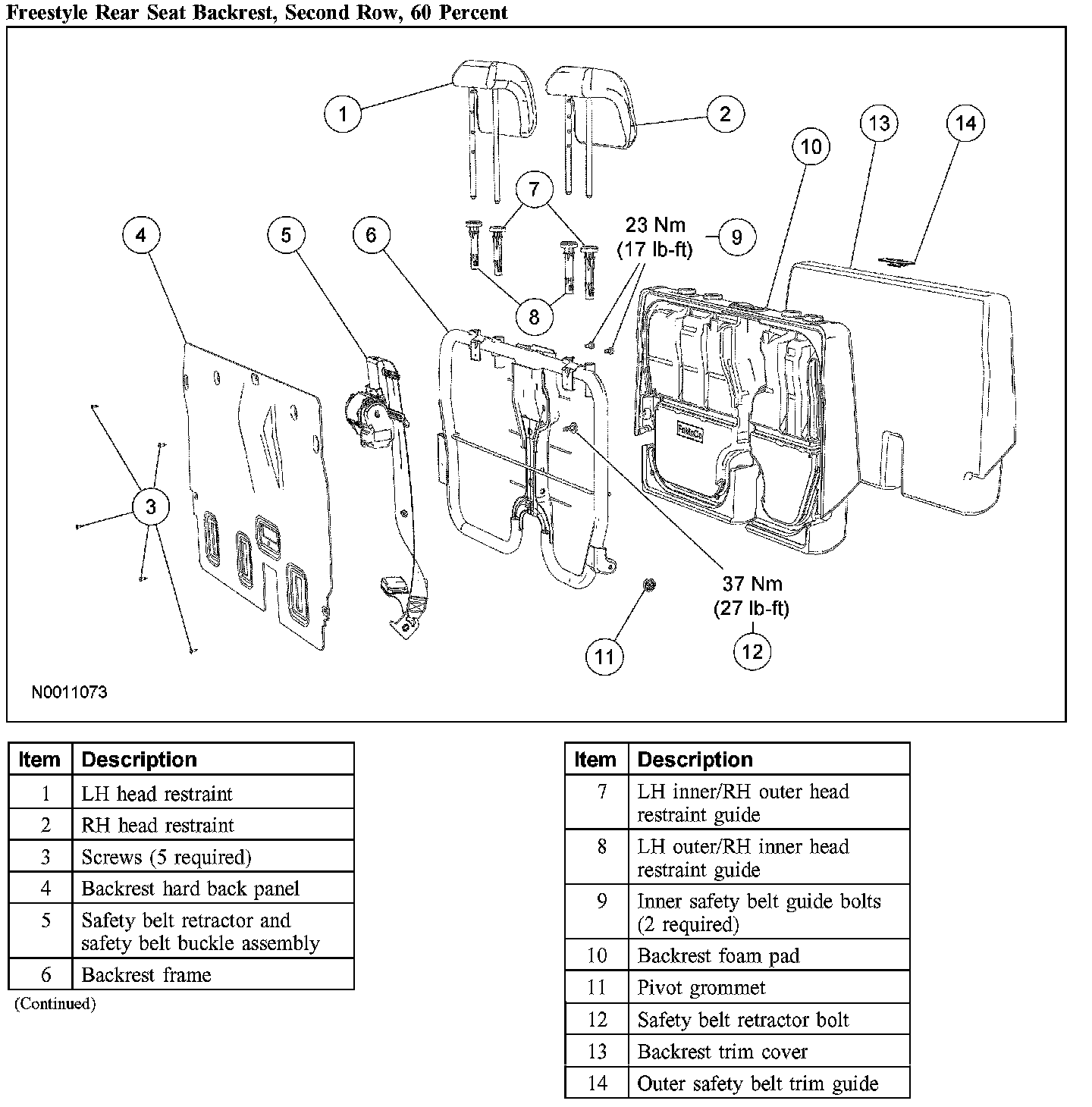

Rear Seat Backrest, Second Row, 60 Percent:

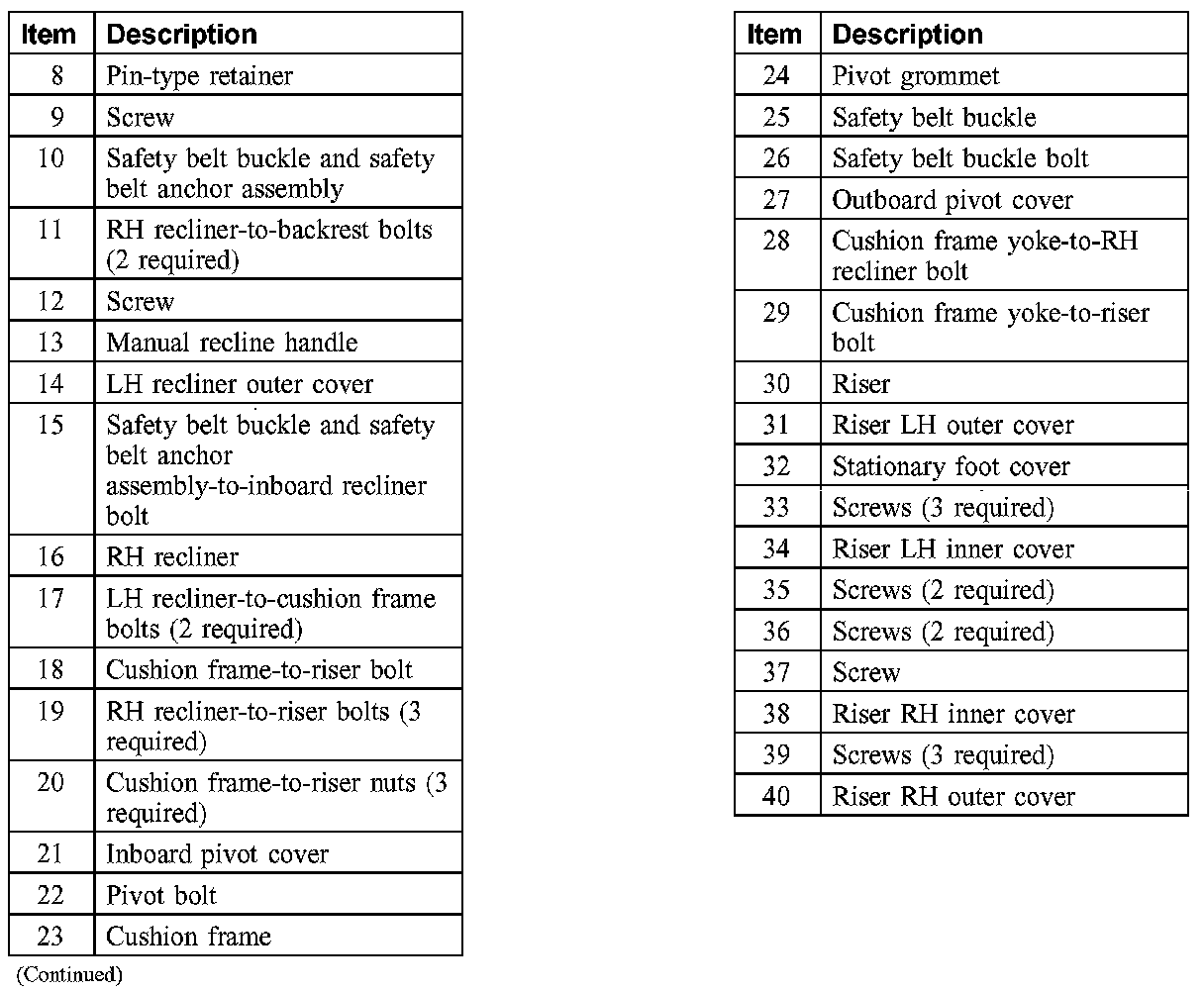

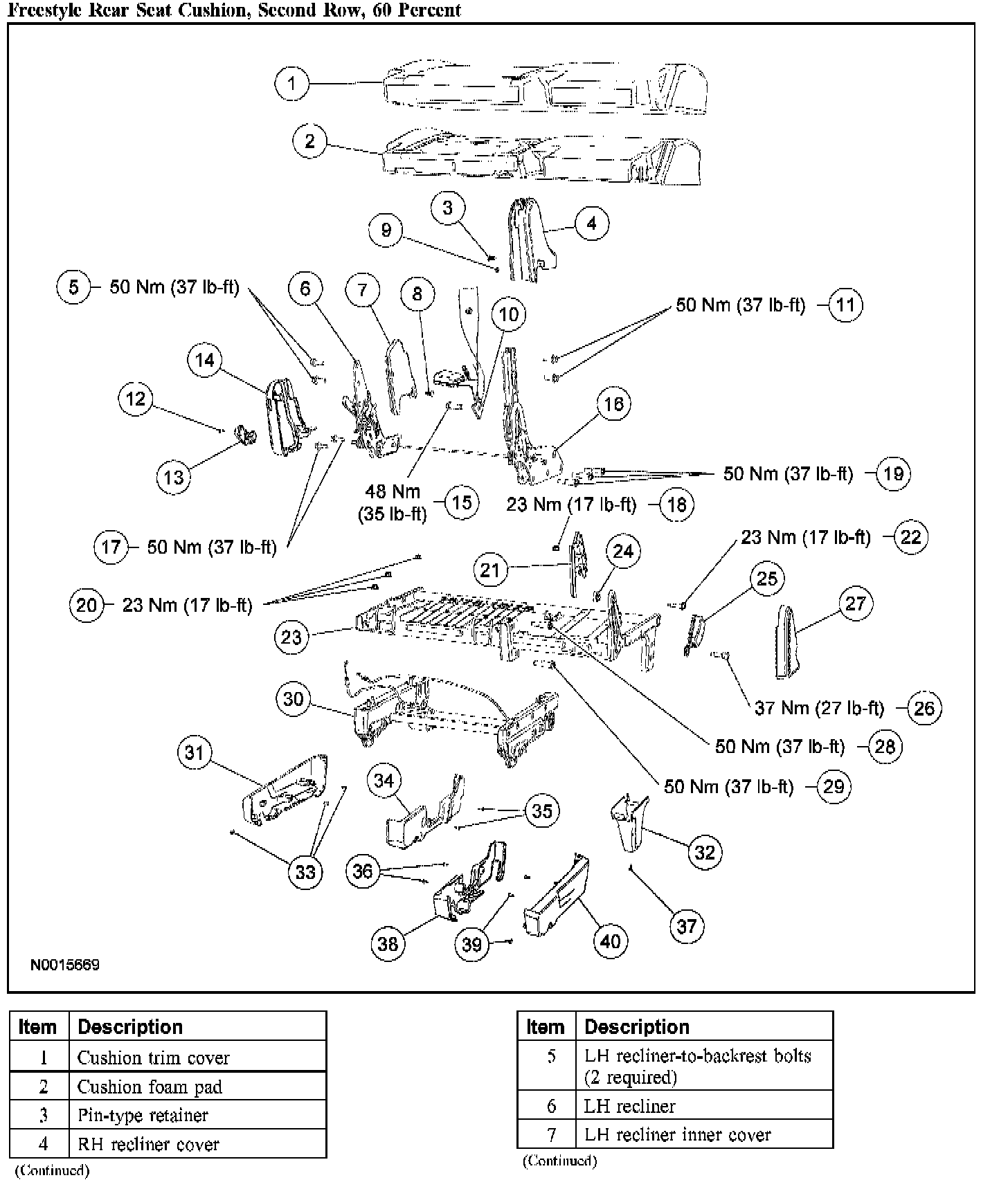

Rear Seat Cushion, Second Row, 60 Percent (Part 1):

Rear Seat Cushion, Second Row, 60 Percent (Part 2):

1. For additional information, refer to the procedures.
