Fluid - Transfer Case: Service and Repair

Transfer Case Draining and Filling

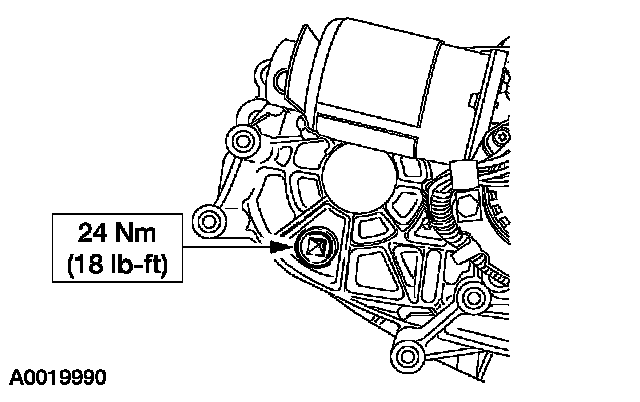

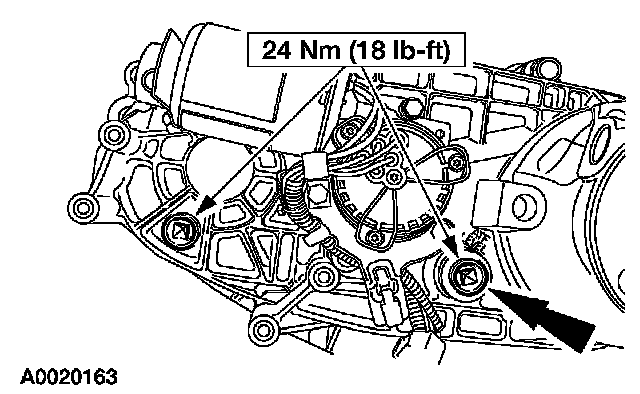

1. Remove the drain plug and drain the fluid.
^ Clean and install the drain plug after fluid is drained.





2. CAUTION: Incorrect fluid fill can result in transfer case failure.

NOTE: Clean the area around the fill plug.

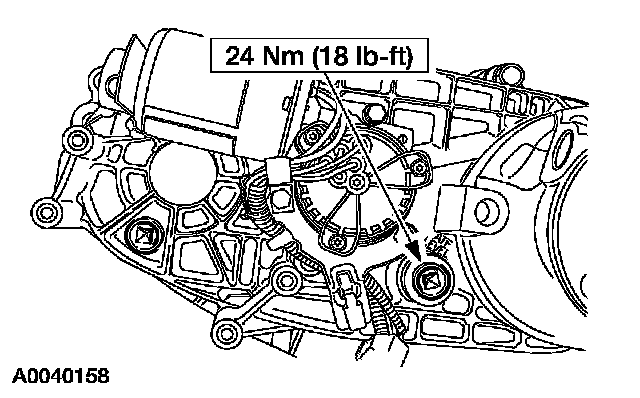

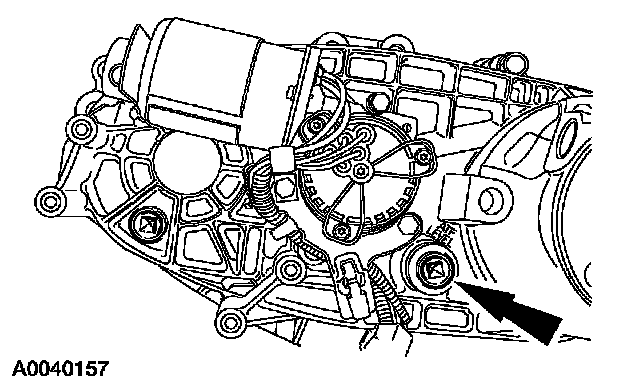

Remove the fill plug and fill the transfer case.

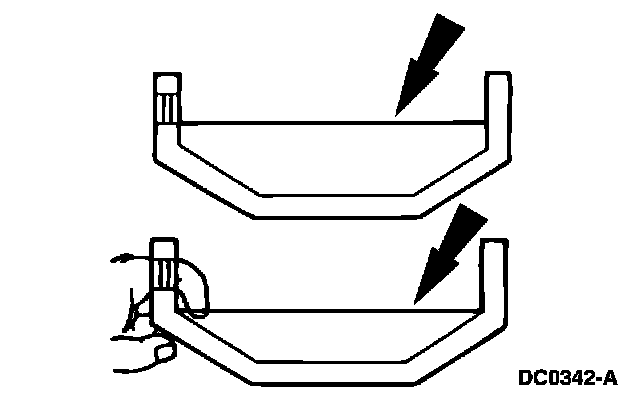

^ The fluid must be just below the fill plug hole. Because the fluid can be reached with a finger does not mean the fluid is at the correct level. Make sure the fluid is level with the filler opening for the correct fluid level.
^ The total transfer case fill capacity is 1.2 liter (2.5 pints).









3. Install the fill plug.
