Connector Circuit Reference

Connector Circuit Reference

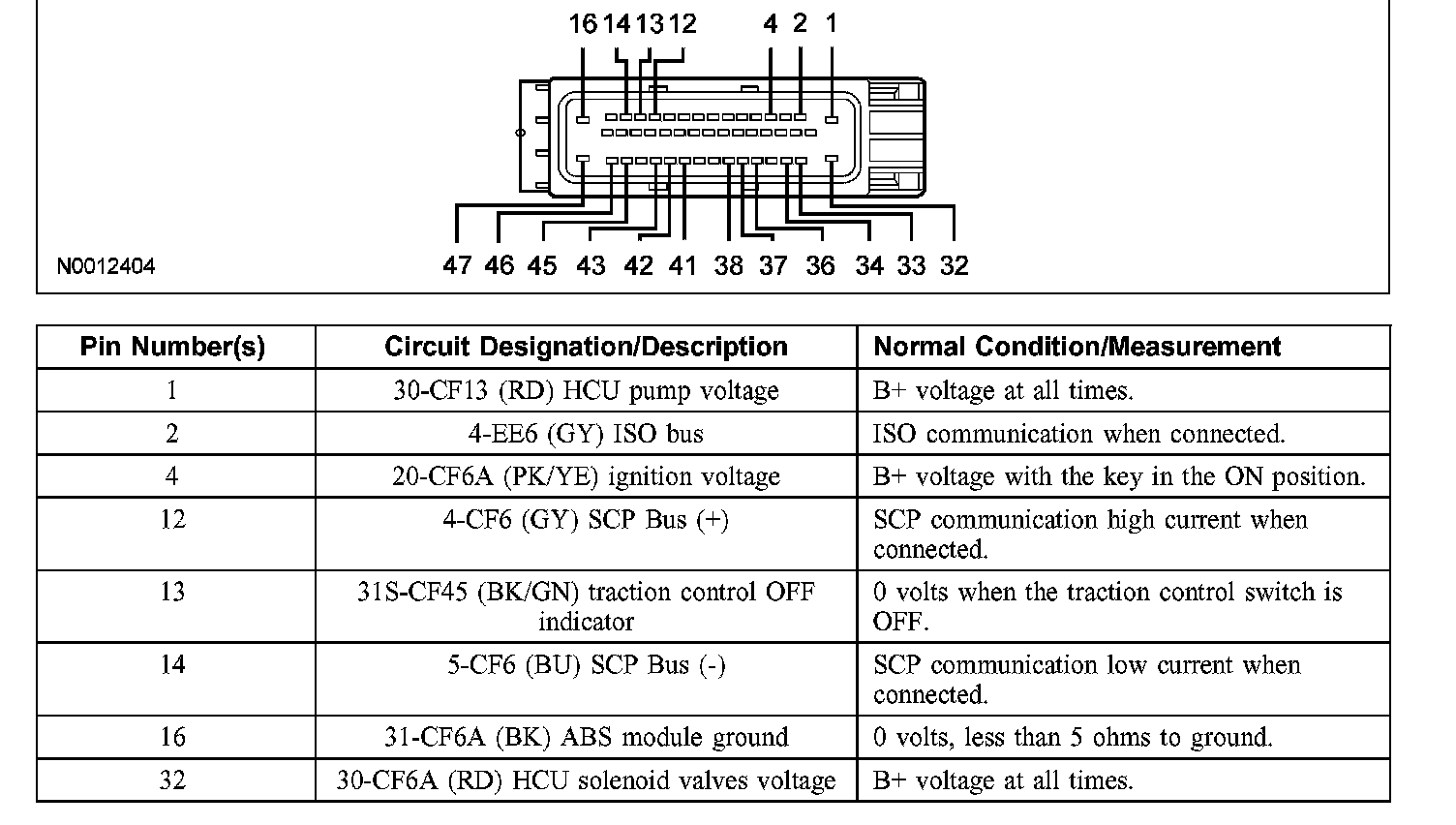

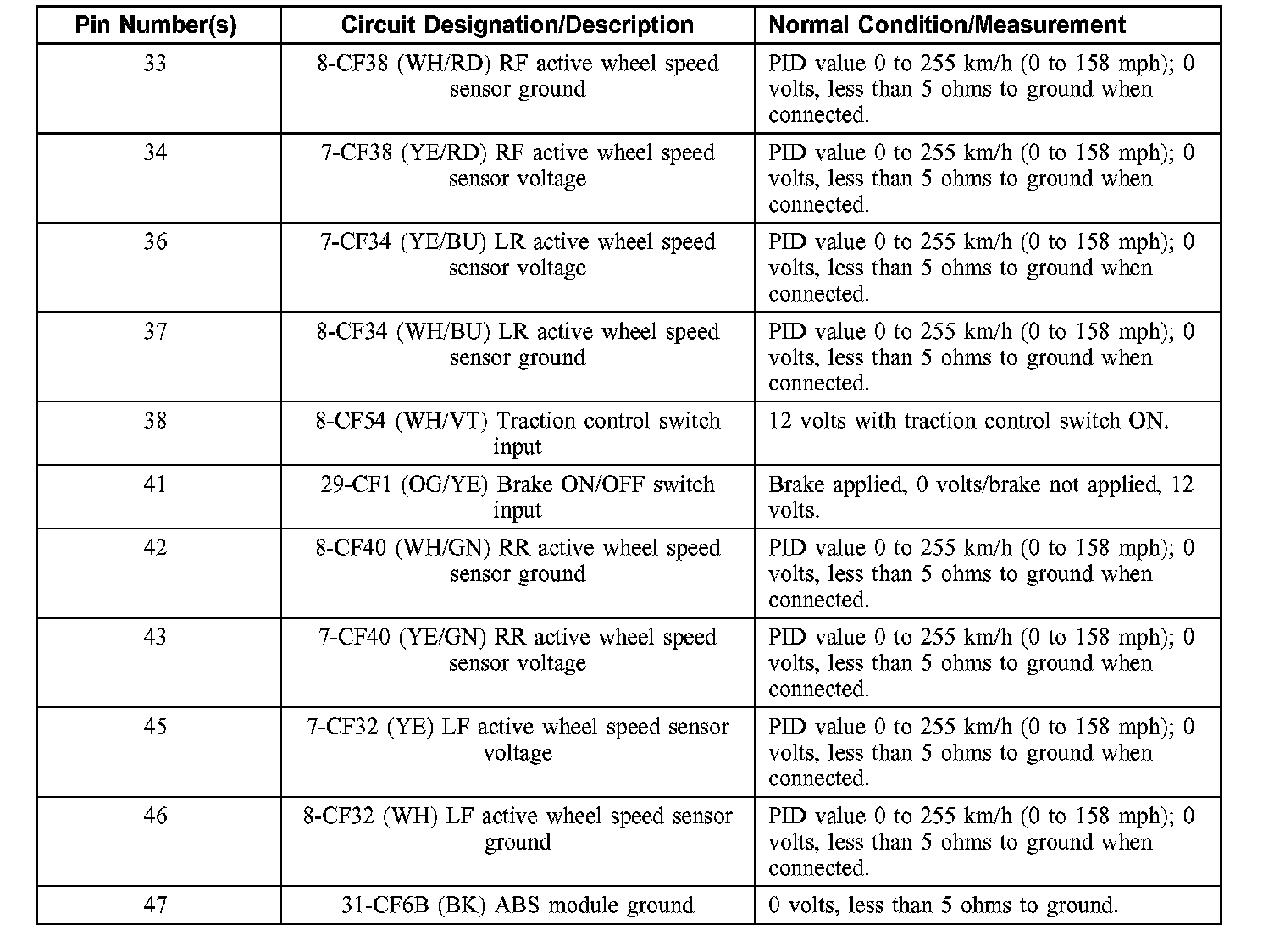

Anti-Lock Brake System (ABS) Connector C135

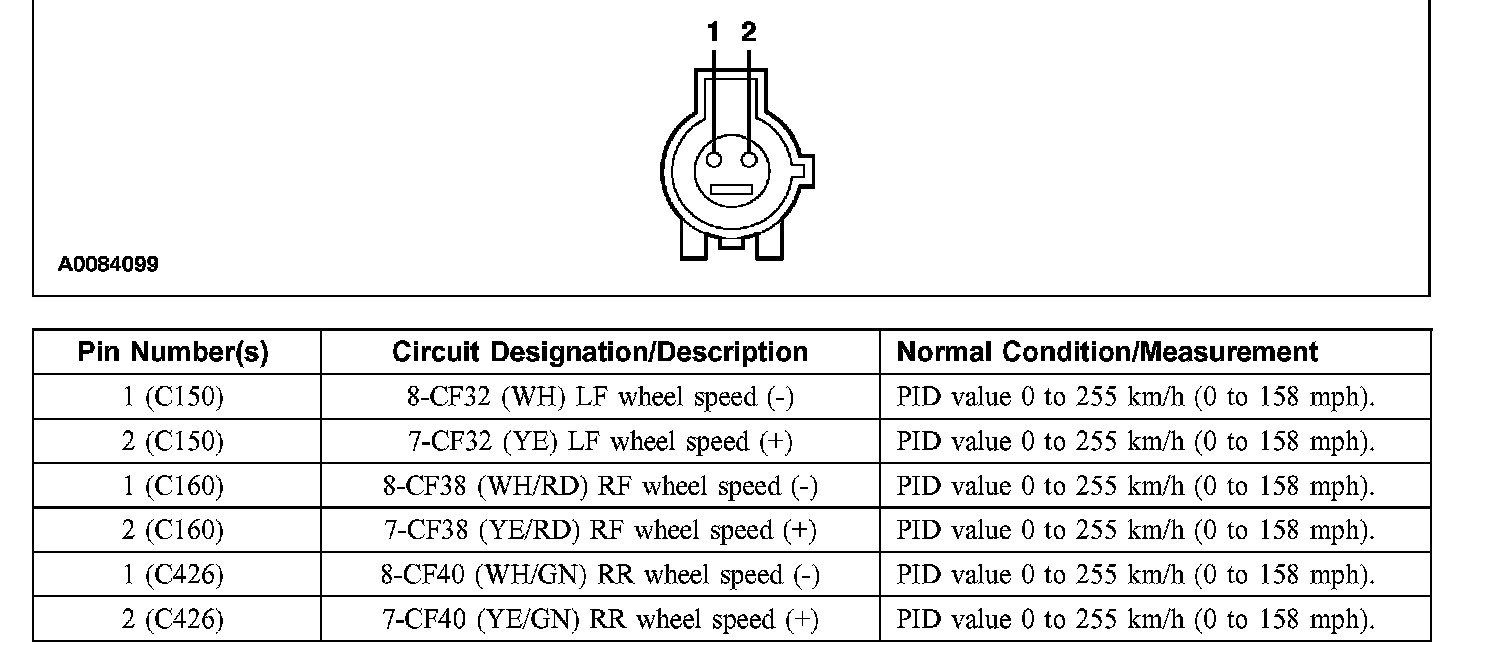

LH Front Wheel Speed Sensor C150, RH Front Wheel Speed Sensor C160, RH Rear Wheel Speed Sensor C426, LH Rear Wheel Speed Sensor C440





Traction Control Cancel Switch C280 (Traction Control Actuator)
