Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation

1. With the vehicle in NEUTRAL, position on a hoist.

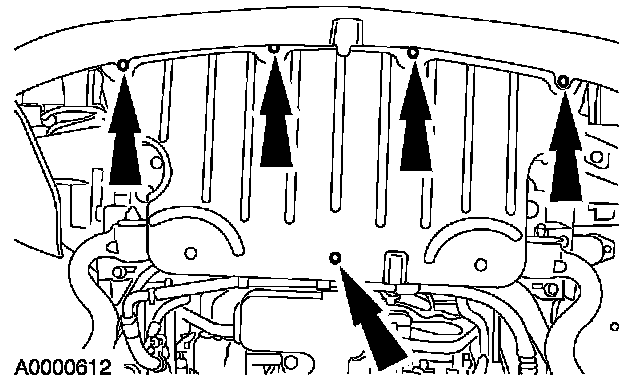

2. Remove the front lower splash shield.
3. Rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt.

4. CAUTION: Incorrect drive belt installation will cause premature drive belt failure.

NOTE: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
