Power Window Switch: Service and Repair

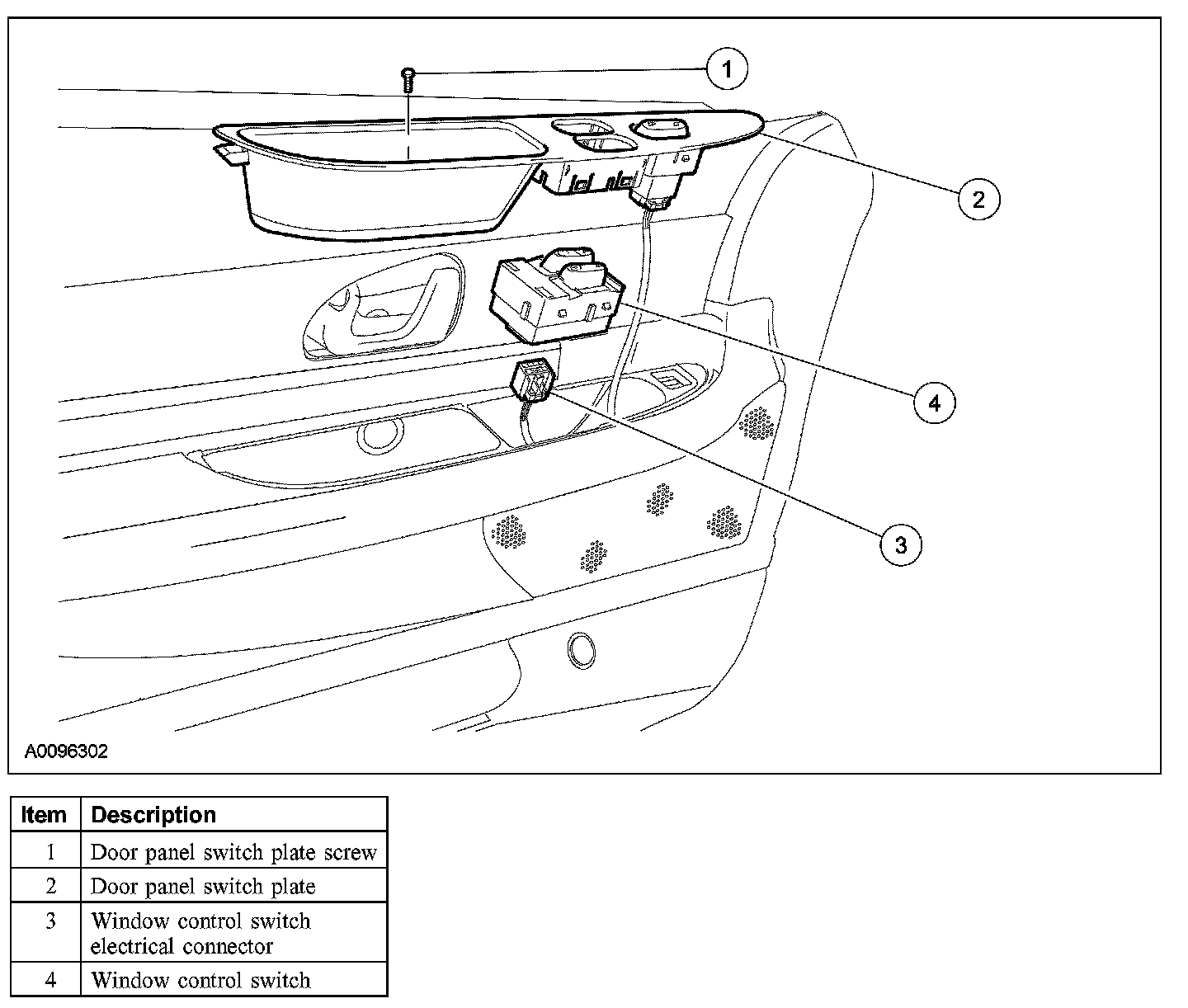

WINDOW CONTROL SWITCHRemoval and Installation 1.
NOTE: Remove the door handle cup cover to access the screw.
Remove the door panel switch plate screw.
2.
Remove the switch plate by lifting the front of the plate and moving it forward.
3.
Disconnect the window control switch electrical connector.
4.
Remove the window control switch.
5.
To install, reverse the removal procedure.
