Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

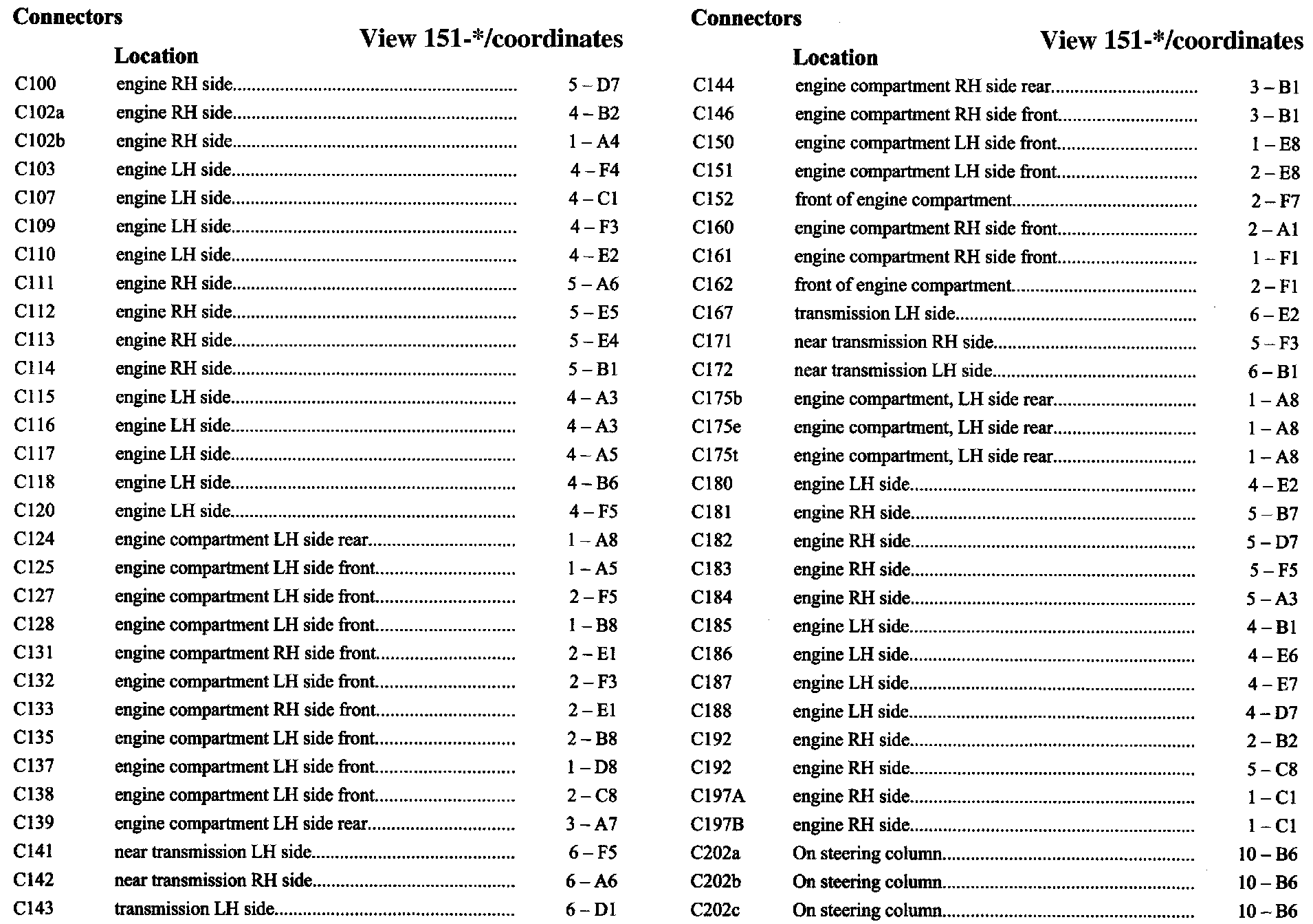

C100-C202c:
C203-C305:

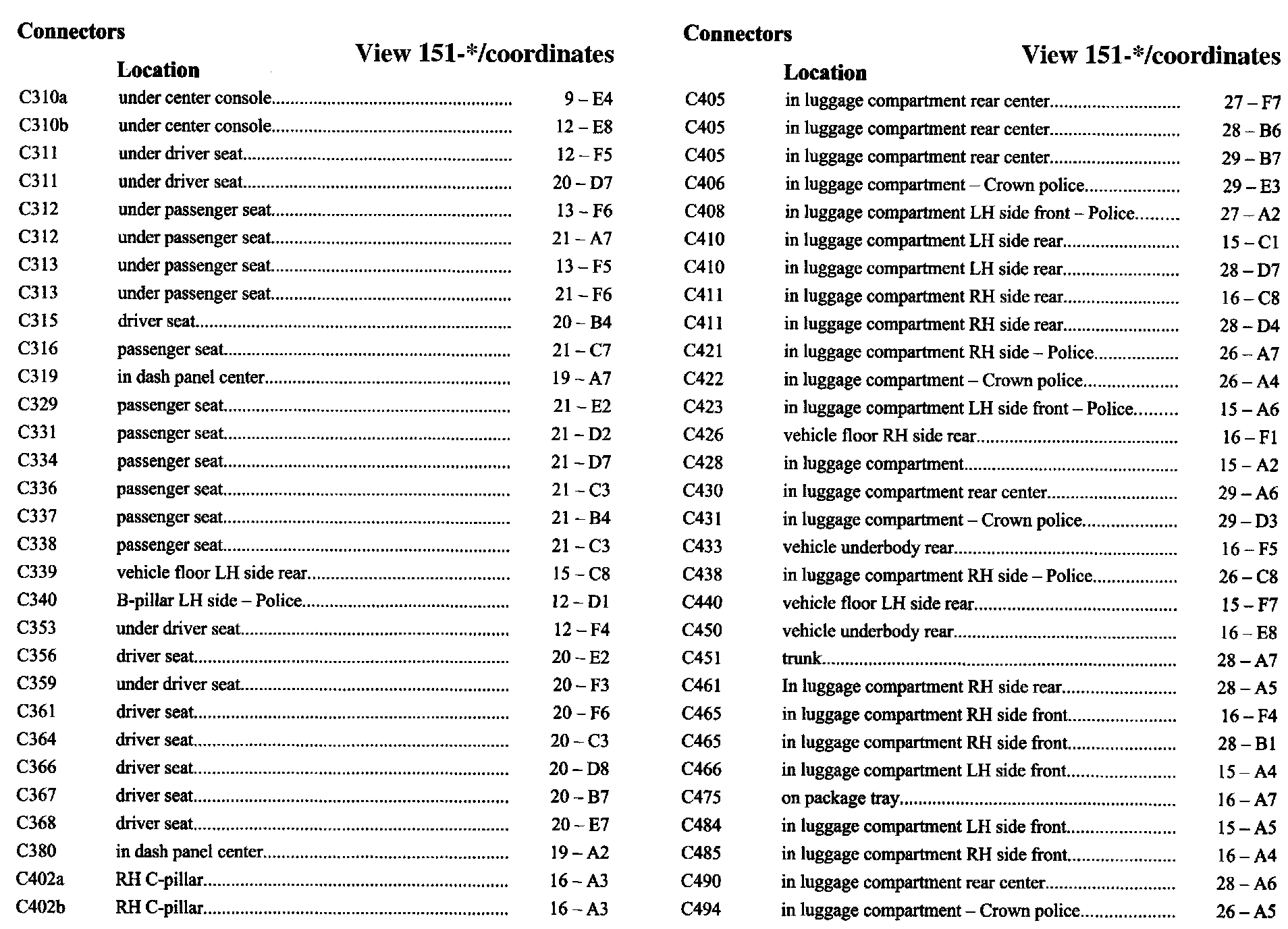

C310a-C494:

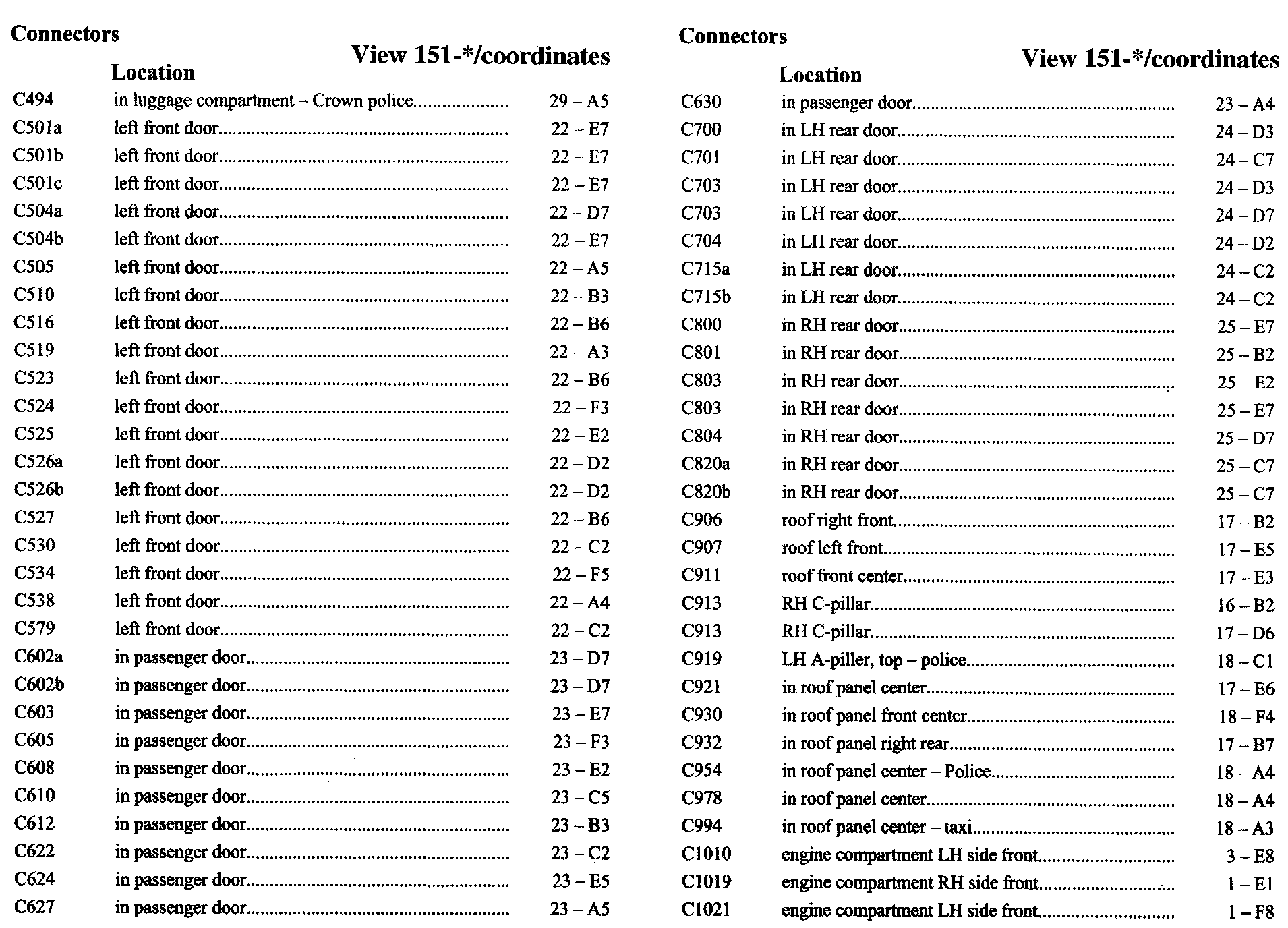

C494-C1021:

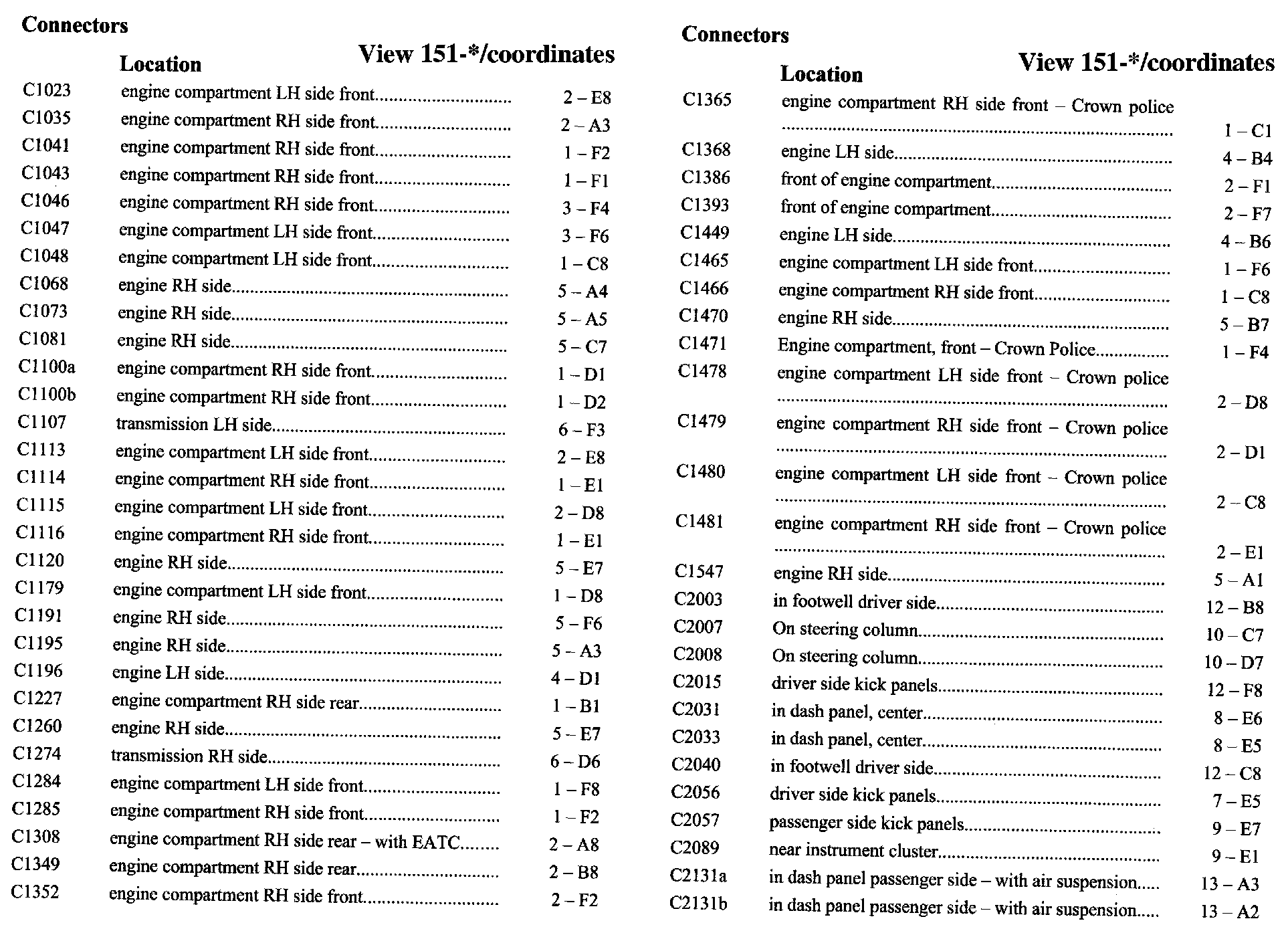

C1023-C2131b:

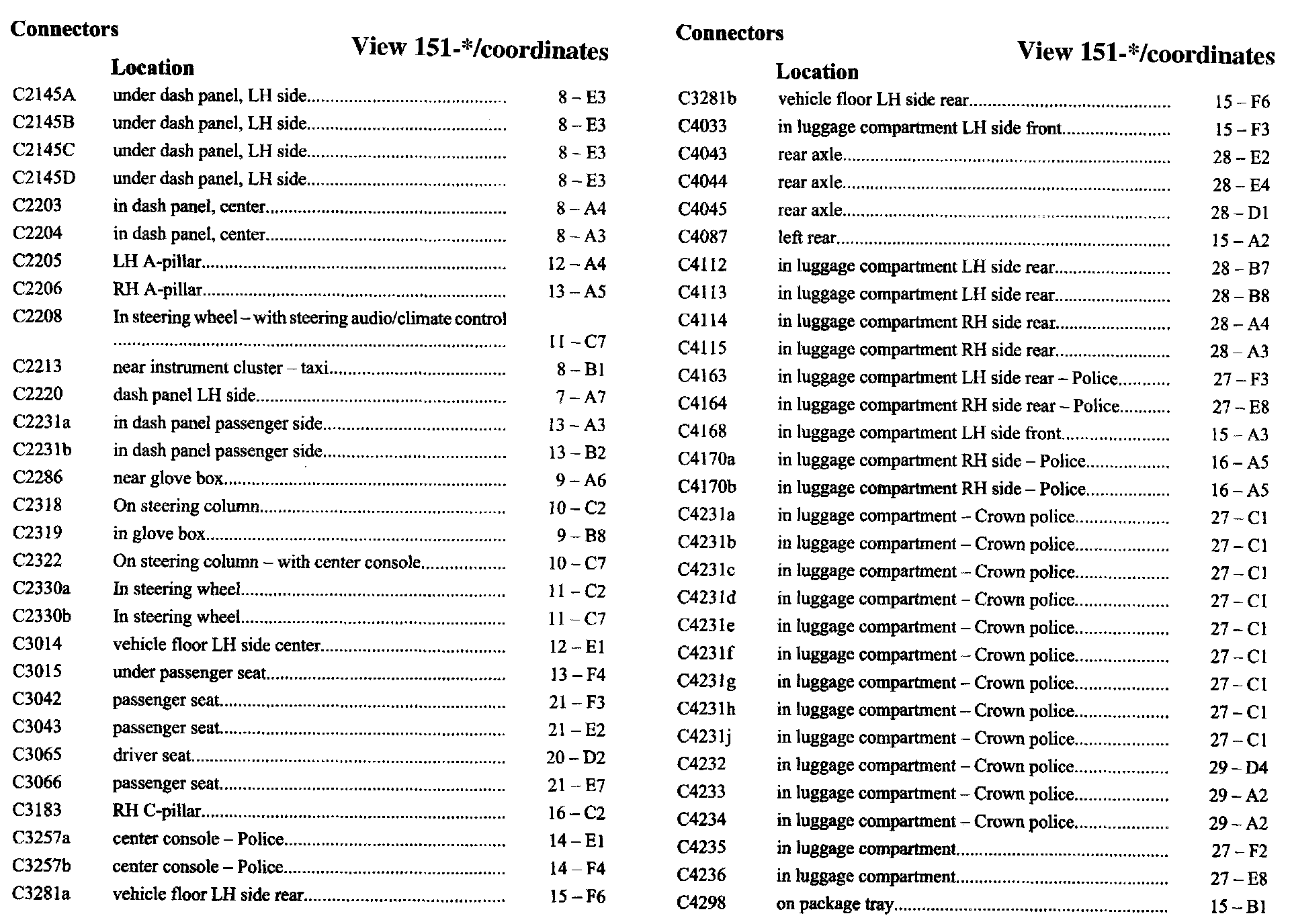

C2145A-C4298:

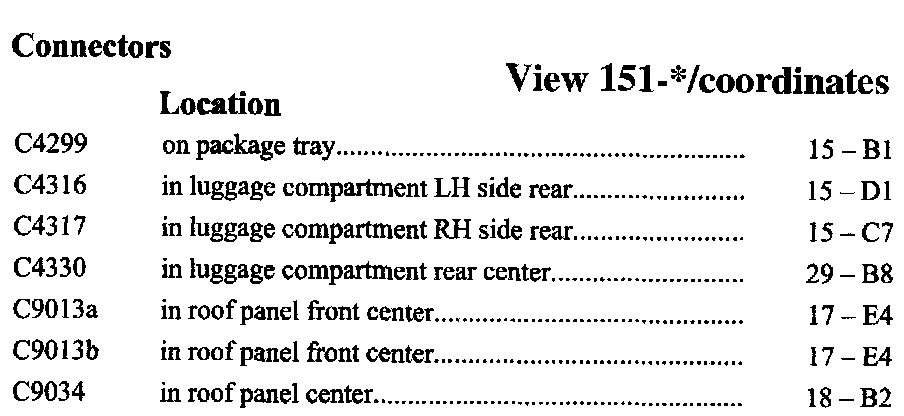

C4299-C9034:
