Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID







Removal and Installation

1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire Suppression System.

Remove the evaporative emission (EVAP) canister assembly.

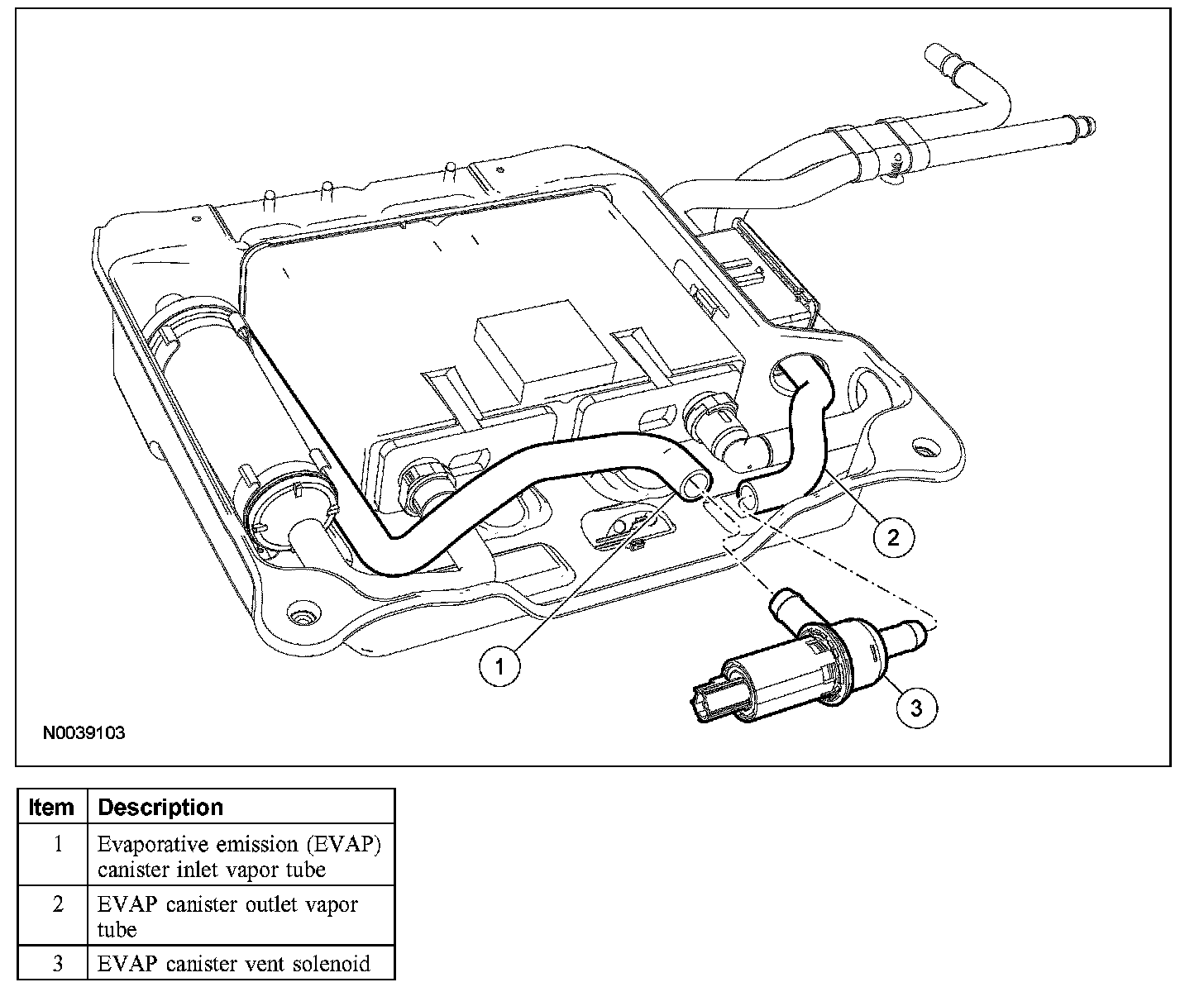

2. Disconnect the EVAP canister vent solenoid inlet and outlet vent tubes.
3. Remove the EVAP canister vent solenoid.

4. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to Fire Suppression System.

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
- Carry out the Leak Test. Evaporative Emission System Leak Test
- Carry out the Evaporative Emission Repair Verification Drive Cycle. Evaporative Emission Repair Verification Drive Cycle
