Front

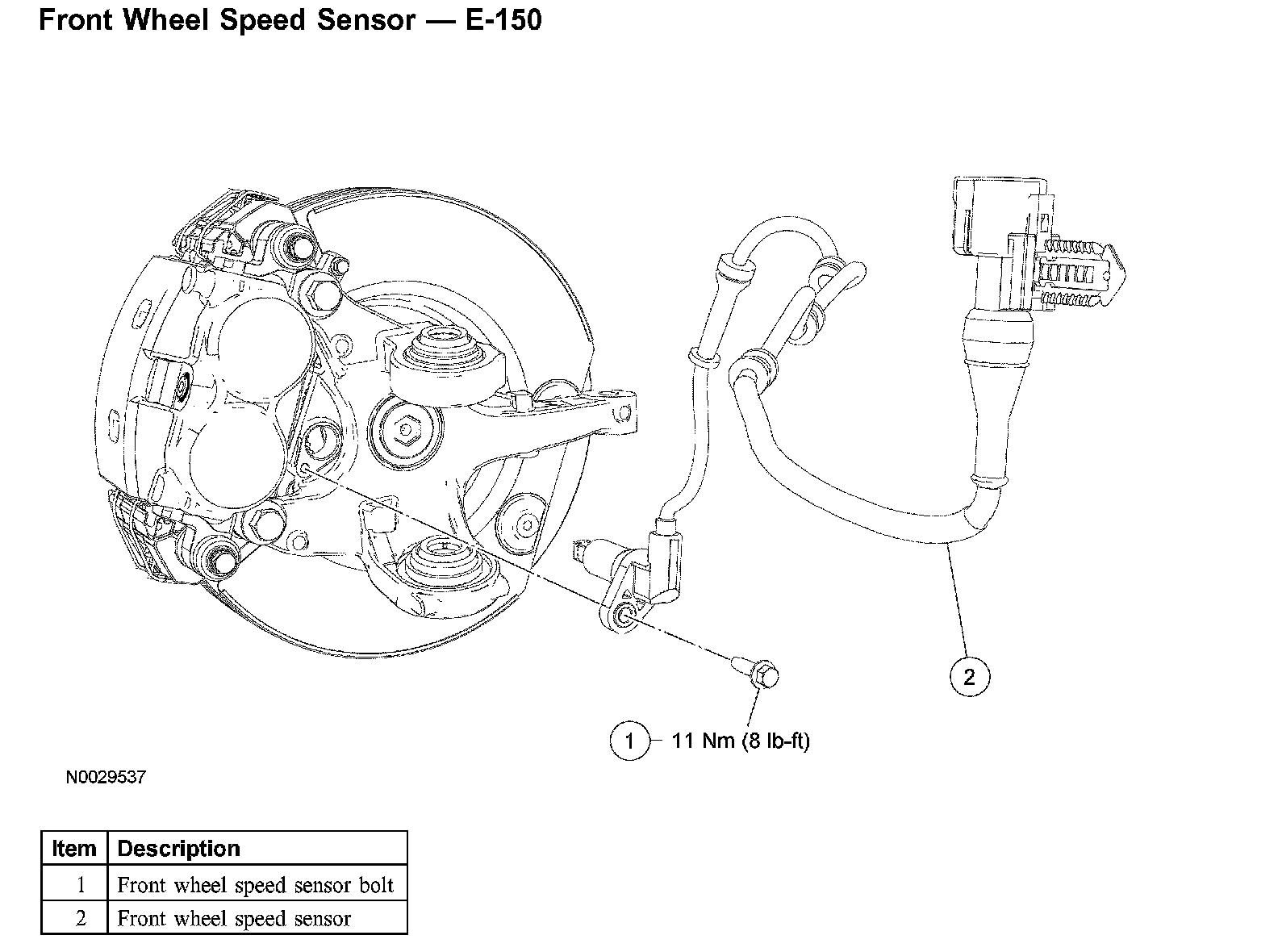

Front Wheel Speed Sensor - E-150 Front Wheel Speed Sensor - E-150:
Removal and Installation 1.
Disconnect the
wheel speed sensor wiring harness from the front brake hose.
^
Disconnect the sensor wiring harness from the retainers.
2.
Remove the bolt and remove the front
wheel speed sensor.
^
To install, tighten to
11 Nm (8 ft. lbs.).
3.
To install, reverse the removal procedure.
