Test L: Navigation System Will Not Switch On

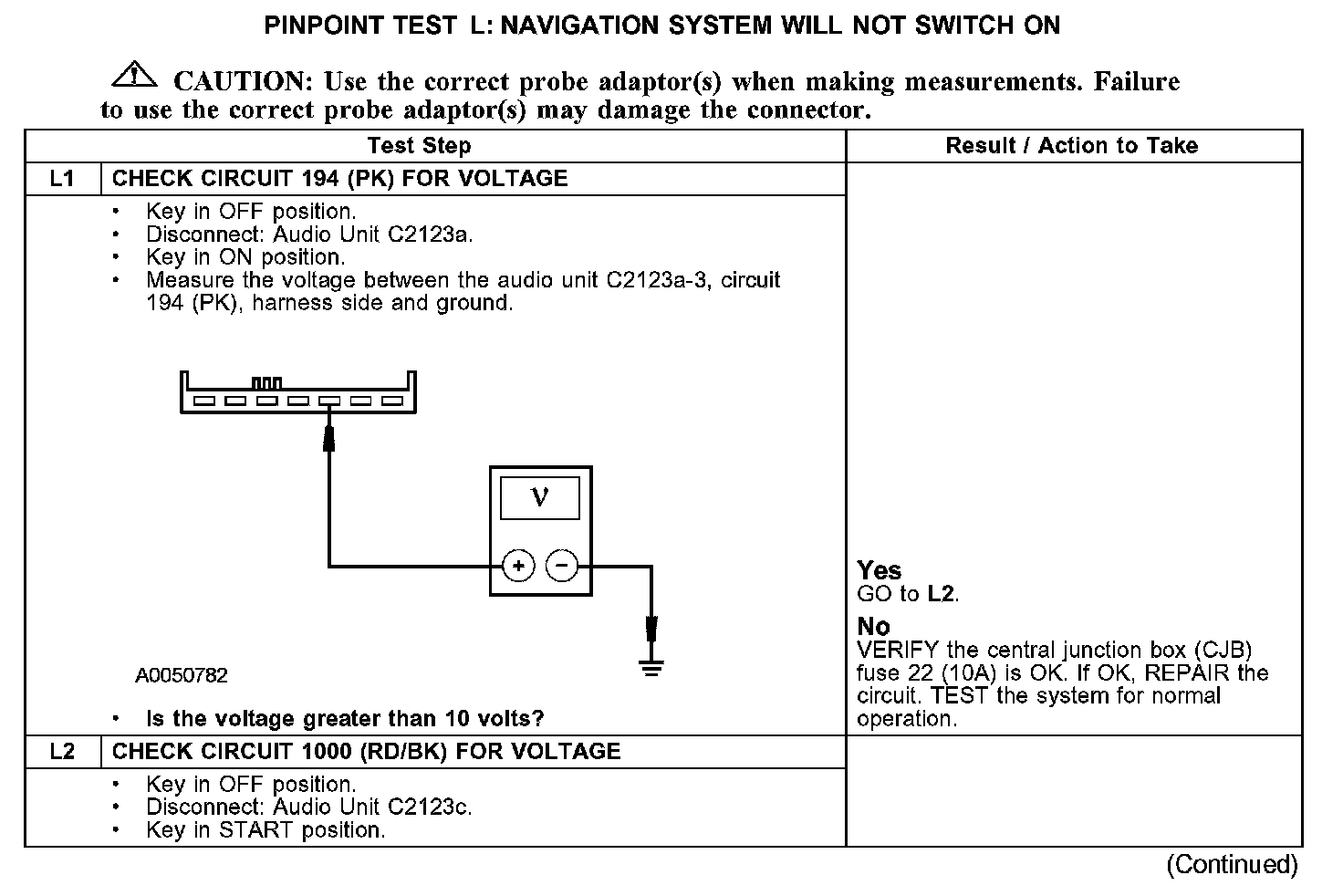

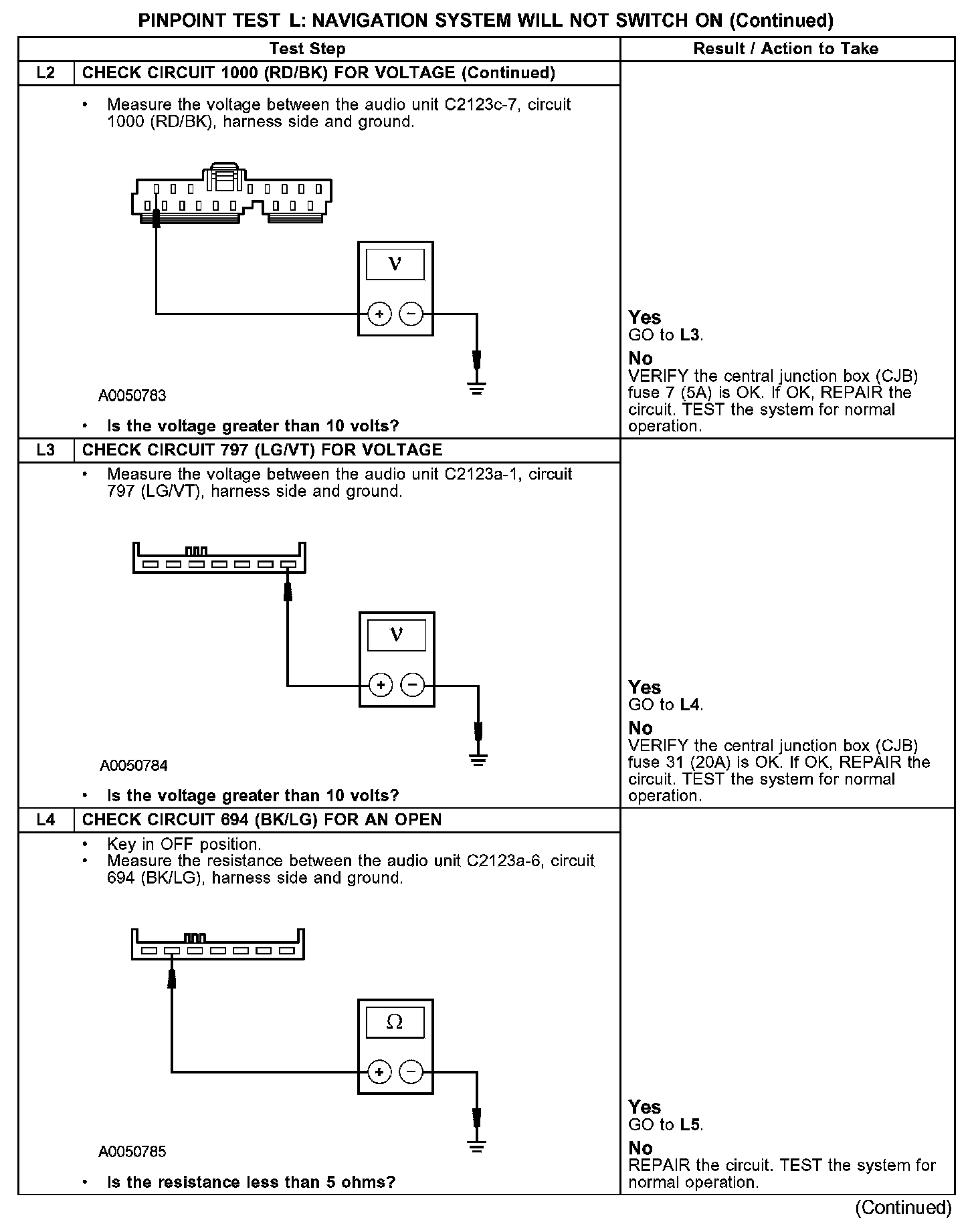

PINPOINT TEST L: NAVIGATION SYSTEM WILL NOT SWITCH ON

L1-L2:

L2-L4:

L5:

Normal Operation
The audio unit receives voltage through circuits 194 (PK), 797 (LG/VT), and 1000 (RD/BK). Ground is provided to the audio unit through circuit 694 (BK/LG).

Possible Causes
- fuse(s)
- circuit 194 (PK) open
- circuit 694 (BK/LG) open
- circuit 797 (LG/VT) open
- circuit 1000 (RD/BK) open
- audio unit
