Body Support - Number 1

BODY SUPPORT - NUMBER 1

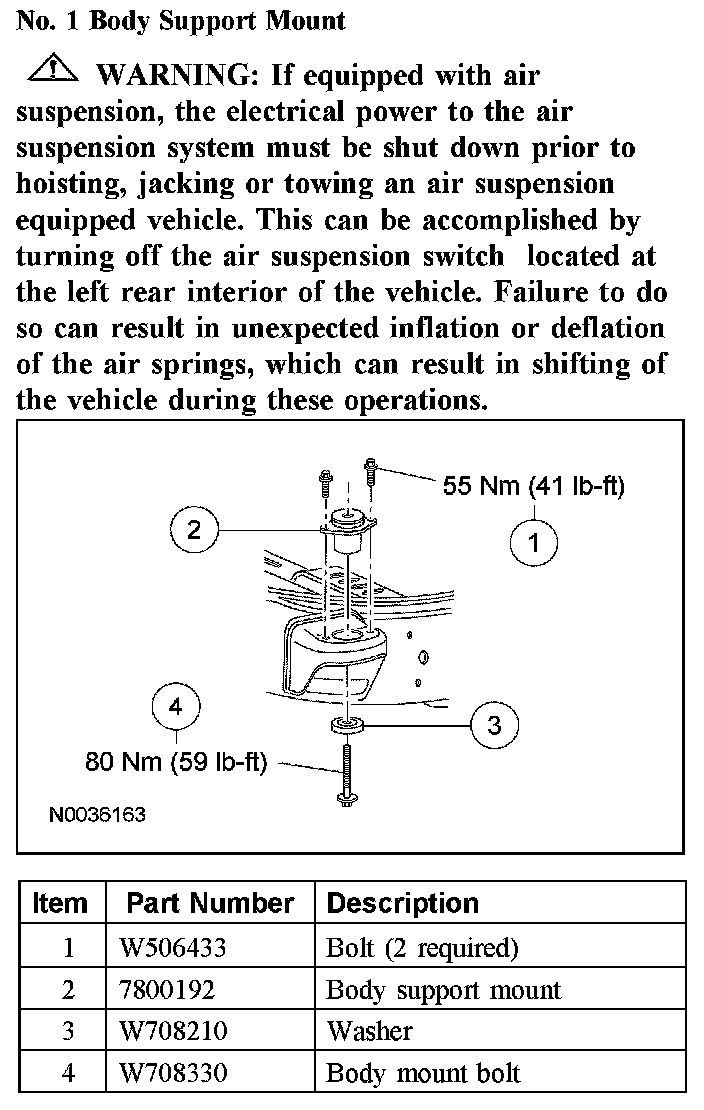

No.1 Body Support Mount:






Removal and Installation

NOTE: Left side shown, right side similar.







1. Remove the body mount bolt.
- To install, tighten to 80 Nm (59 lb-ft).

2. Loosen the remaining body mount bolts.







3. Raise the vehicle body enough to remove the body mount bolts and body mount.
- To install, tighten to 55 Nm (41 lb-ft).

4. NOTE:
- No lubricants of any kind are to be used during body mount installation.
- Do not reuse body mount fasteners. New fasteners must be installed for each fastener that has been removed or loosened.

To install, reverse the removal procedure.
