Drilling Precautions
DRILLING PRECAUTIONS 1.

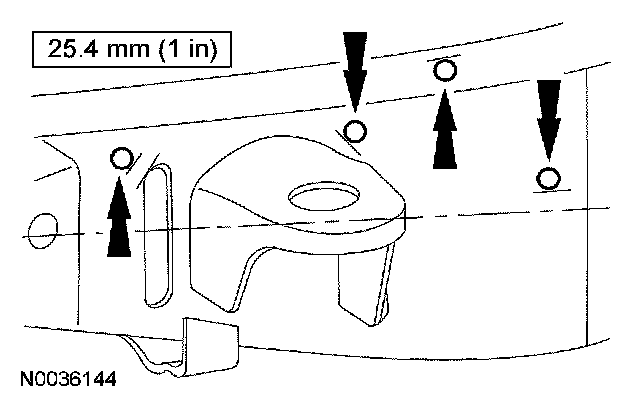

If a hole must be drilled in the
frame, make sure the hole meets the following requirements:
-
The hole is at least the specified distance from the edge of the nearest hole.
-
The edge of the drilled hole is at least the specified distance from the edge of the flange.
-
The drilled hole is at least the specified distance from any other existing bracket or component of the
frame.
