Connecting Rod, Engine
Connecting RodRod-to-pin clearance 0.009 - 0.0235 mm (0.0004 - 0.0093 inch)
Pin bore diameter 22.012 - 22.024 mm (0.8666 - 0.8671 inch)
Length (center-to-center) 169.1 mm (6.6575 inch)
Maximum allowed bend 0.038 mm (0.0015 inch)
Maximum allowed twist a 0.05 mm (0.0020 inch)
Bearing bore diameter (with assembled liners) 53.049 - 53.027 mm (2.0885-2.0877 inch)
Bearing-to-crankshaft clearance 0.064 - 0.026 mm (0.0025 -0.0010 inch)
Side clearance 0.475 - 0.125 mm (0.0187 - 0.0049 inch)
a The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of rod centerline.

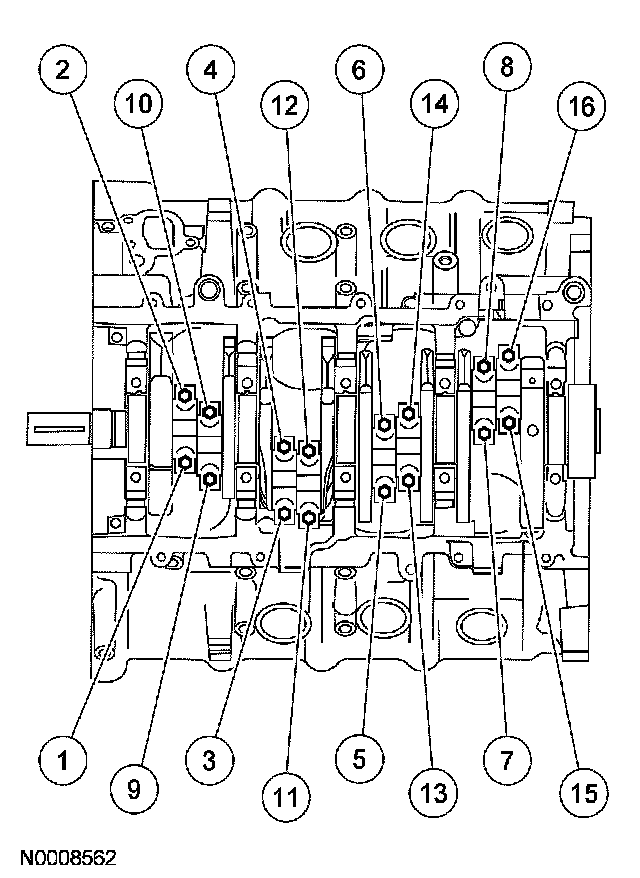

Discard the bolts
New connecting rod bolts
First pass 43 Nm (32 ft. lbs.)
Final pass tighten 105°
