Test A: No Communication With The Speed Control Actuator

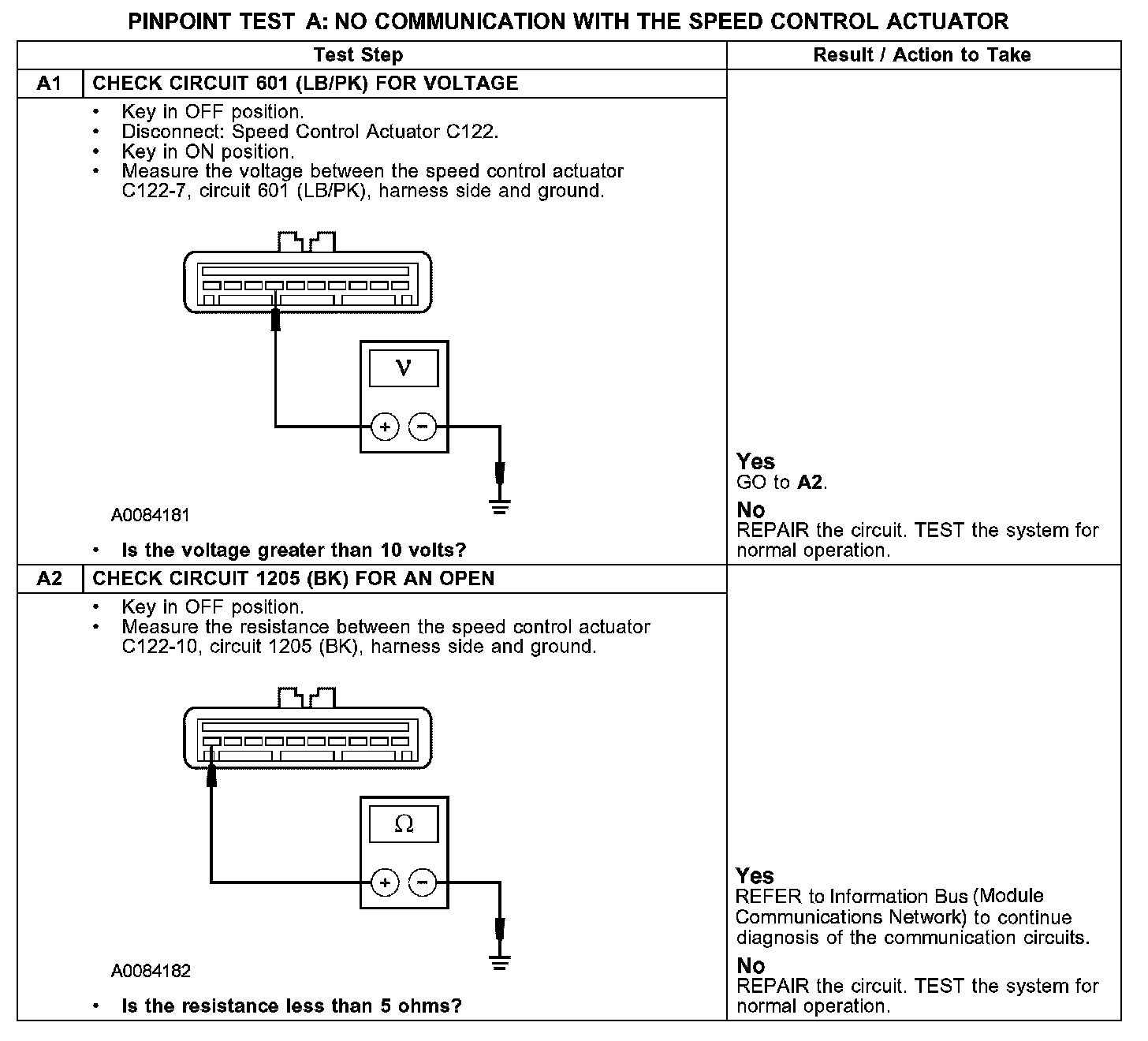

PINPOINT TEST A: NO COMMUNICATION WITH THE SPEED CONTROL ACTUATOR

A1-A2:

Normal Operation
The speed control actuator sends and receives signals through the standard corporate protocol (SCP) network. The speed control actuator receives voltage through circuit 601 (LB/PK) and is grounded through circuit 1205 (BK).

Possible Causes
- Circuit 601 (LB/PK) open
- Circuit 1205 (BK) open
- Speed control actuator
