Pump Shaft
Pump Shaft 1.
NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, install a new shaft and main control.
Remove the Teflon seals and inspect the shaft.
2.
NOTE: Make sure that the seals are installed correctly.

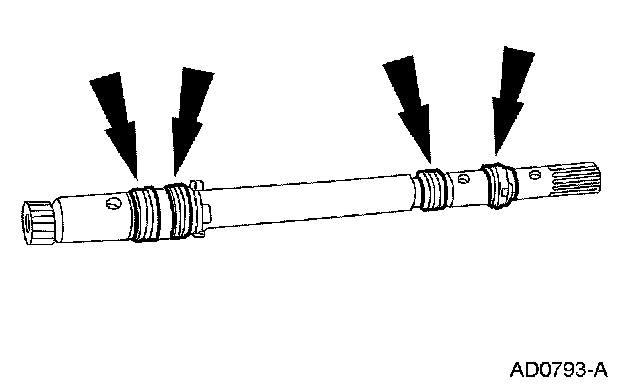

Install 4 new seals on the pump shaft.
