Water Pump
Coolant pump inlet tube bolt
25 Nm (18 ft. lbs.)
Coolant pump pulley bolts
11 Nm (8 ft. lbs.)
Idler pulley bolt
47 Nm (35 ft. lbs.)
Coolant pump inlet tube bracket bolts
10 Nm (89 inch lbs.)
Coolant pump bolts

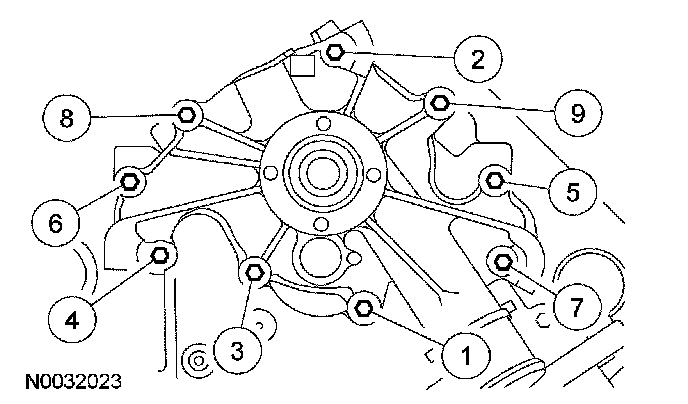

Tighten the coolant pump-to-engine front cover nuts and bolts to 28 Nm (21 ft. lbs.).
^
Tighten in the sequence shown.
