Pinpoint Tests
Pinpoint Test A: No Communication With the DEMNormal Operation The DEM receives a 12-volt input from the SJB from mini-fuse 19 (10A) through circuit 972 (BK/WH). Ground is provided through circuit 570a (BK).
Possible Causes ^
SJB mini-fuse 19 (10A)
^
Circuitry
-
circuit 972 (BK/WH)
-
circuit 570a (BK)
^
DEM
^
CAN communication network
A1-A2:

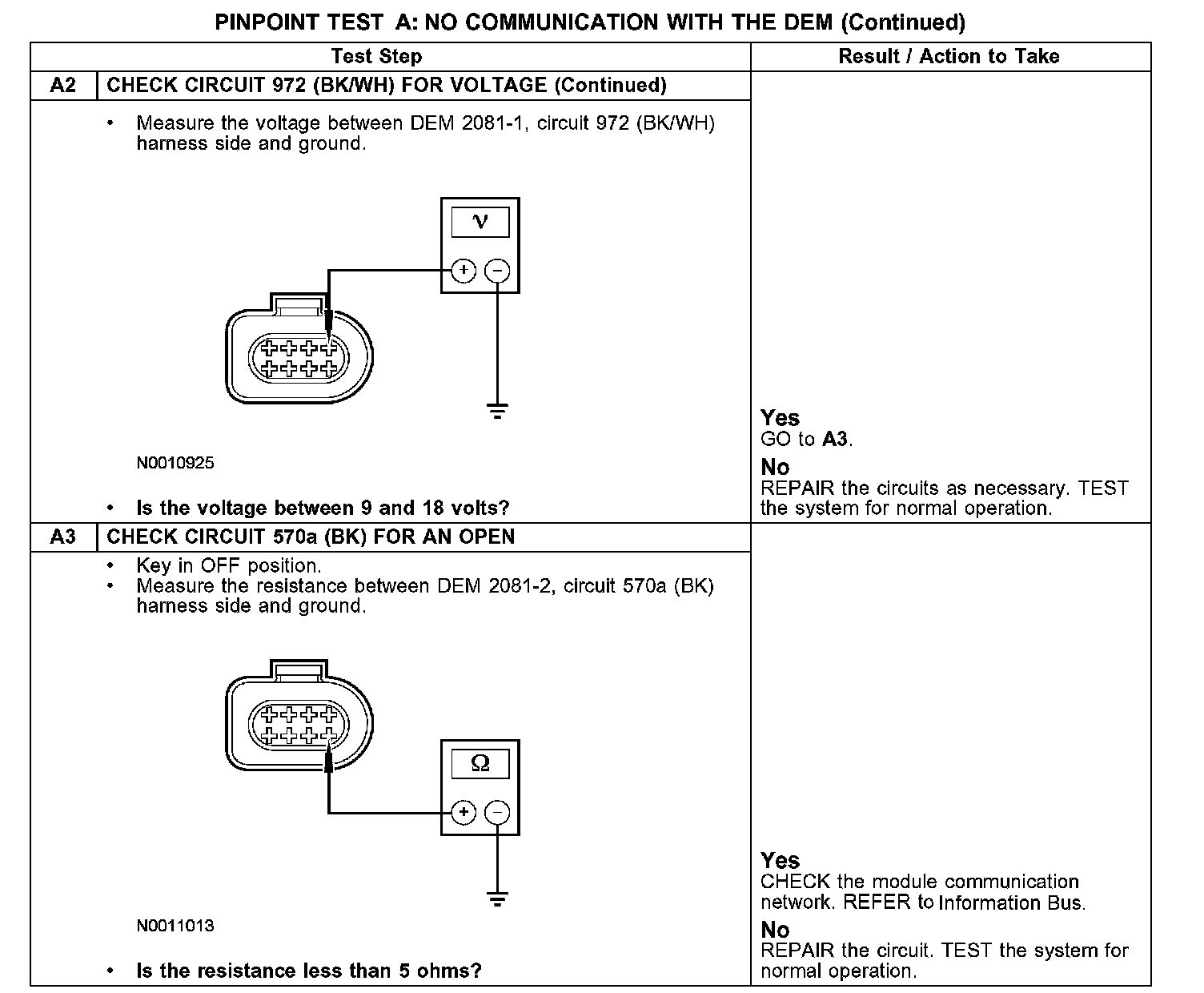

A2-A3:
