Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation

All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

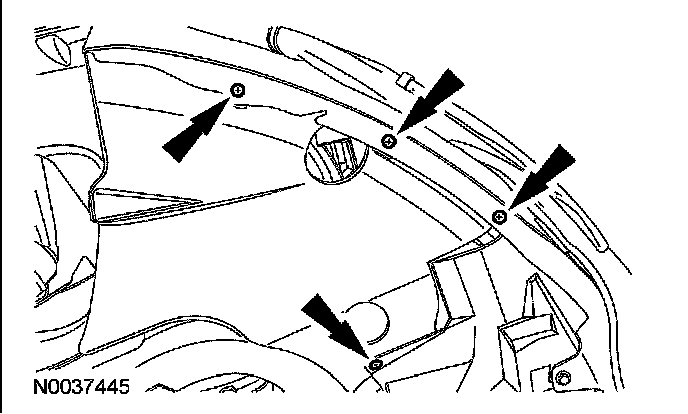

2. Remove the 4 screws and position the RH fender splash shield aside.
3. Remove the 6 pin-type retainers and the RH splash shield.

Early build vehicles

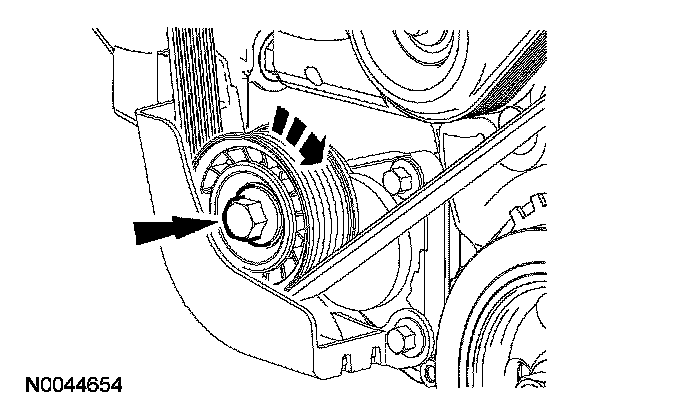

4. Using the pulley bolt, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

Late build vehicles

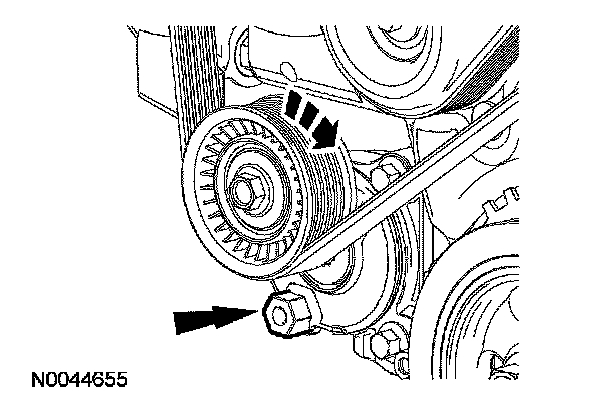

5. Using the hex feature, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

All vehicles
6. To install, reverse the removal procedure.
