Driver Seat Module (DSM)

DRIVER SEAT MODULE (DSM)







Removal and Installation

1. CAUTION:
- Prior to the removal of the module, it is necessary to upload the module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed.
- Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery.

2. Remove the driver seat.

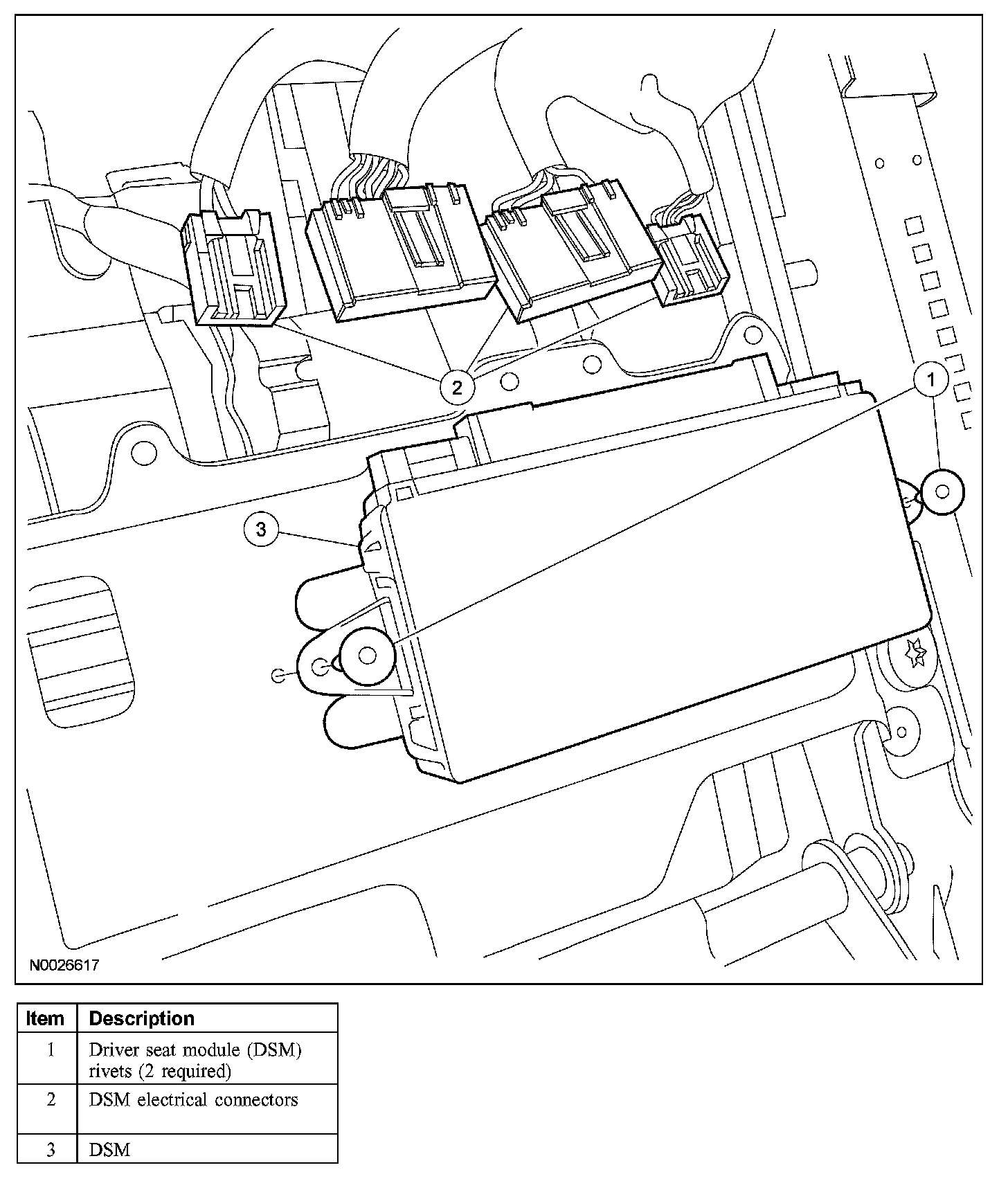

3. Drill out the 2 rivets.
4. Disconnect the 4 electrical connectors and remove the DSM.
5. To install, reverse the removal procedure.
- Download the DSM configuration from the diagnostic tool into the new DSM.
