Alternator: Service and Repair

GENERATOR

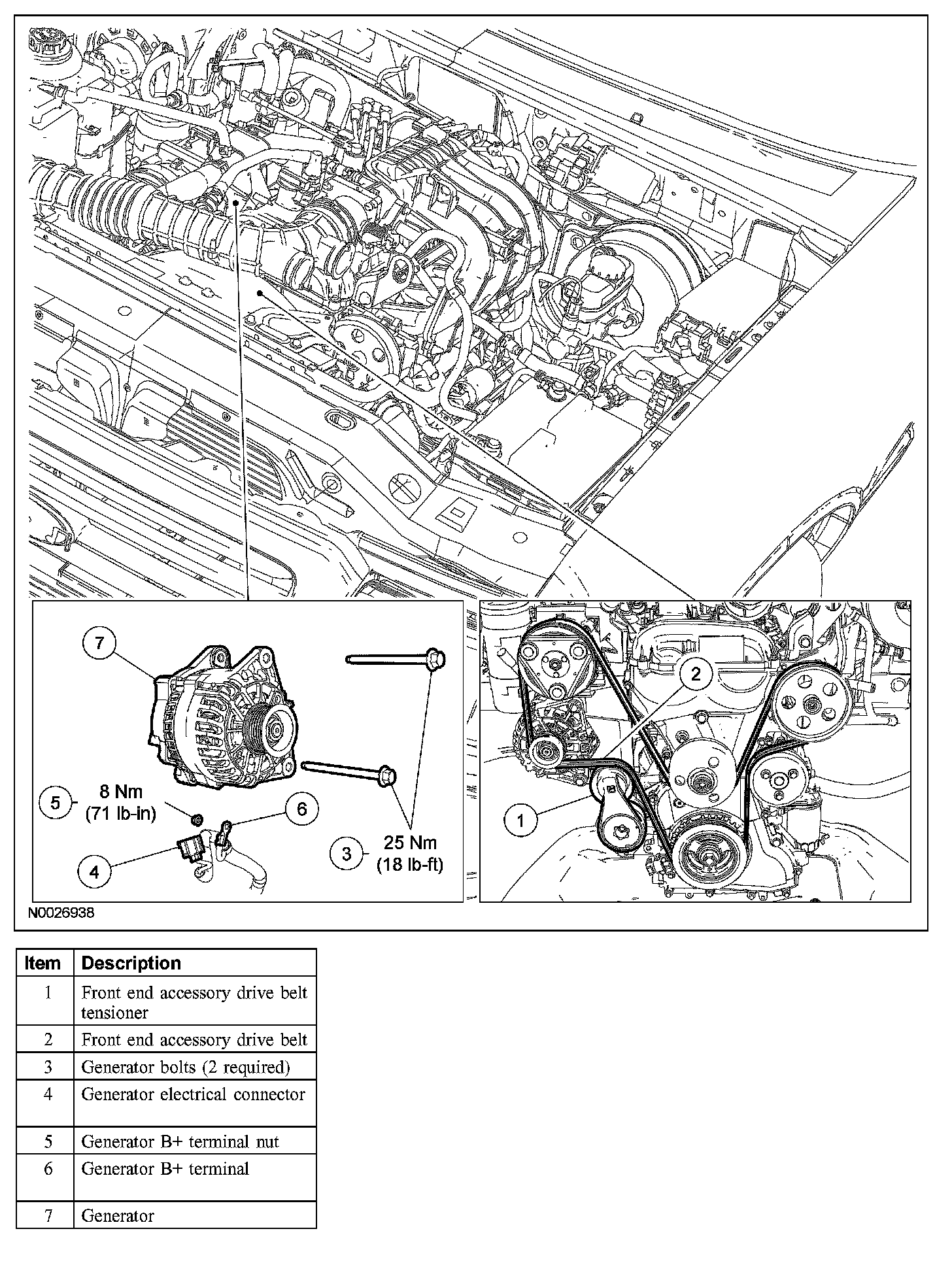

Removal and Installation
1. Disconnect the battery.
2. Remove the air cleaner outlet pipe.
3. Rotate the front end accessory drive belt tensioner counterclockwise and position the accessory drive belt aside.
4. Remove the 2 bolts and position the generator aside.
- To install, tighten to 25 Nm (18 lb-ft).

5. Disconnect the electrical connector from the generator.
6. Position the protective cover aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 8 Nm (71 lb-in).

7. Remove the generator.
8. To install, reverse the removal procedure.
