Installation

INSTALLATION

Transmission

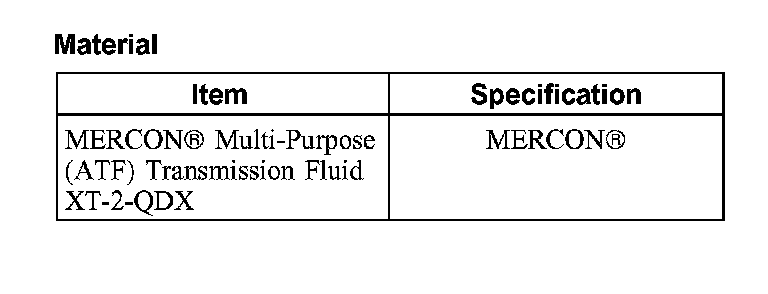

Material:





1. NOTE: Before securing the engine to the transmission, connect the hydraulic line to the clutch slave cylinder.

NOTE: Install the transfer case with a new gasket. Tighten the bolts that retain the transfer case to the extension housing in a clockwise direction beginning with the upper LH bolt.

NOTE: Install the front driveshaft with new bolts and washers and the rear driveshaft with new bolts.

NOTE: Align the index marks when installing the front and rear driveshafts.

NOTE: Check and, if necessary, fill the transmission with the specified type and quantity of fluid.

To install, reverse the removal procedure.
