Damper Replacement

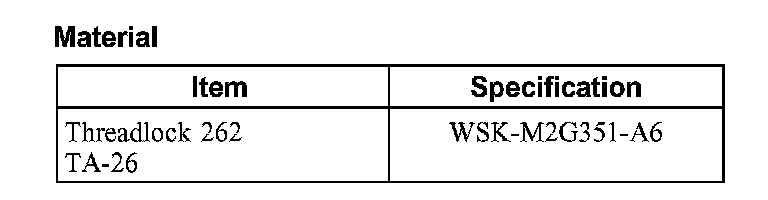

DamperMaterial:
Removal 1.
With the vehicle in NEUTRAL, position it on a hoist.
2.

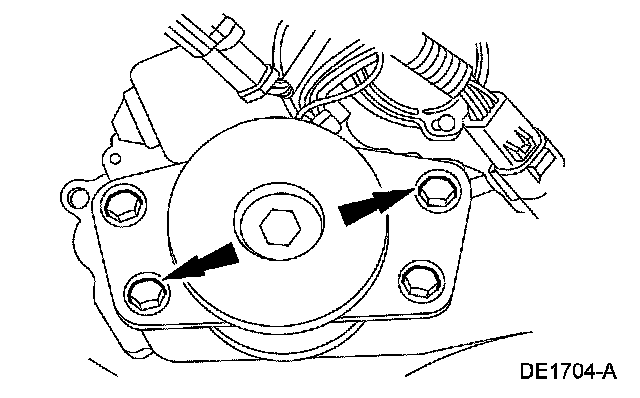

Remove the 4 bolts and the damper.
Installation 1.
NOTE: If new bolts are not available, coat the threads of the used bolts with threadlock.
Follow the removal procedure in reverse order.
^
Tighten to
34 Nm (25 ft. lbs.).
