Temperature Control Switch

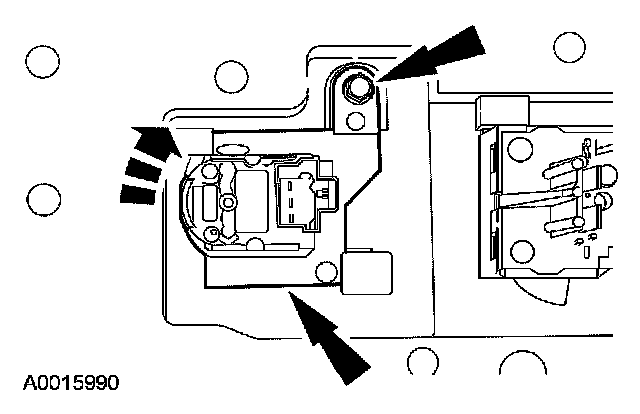

TEMPERATURE CONTROL SWITCHRemoval and Installation 1.
Remove the integrated control panel.
2.
Remove the temperature control knob.
3.
Remove the screw and rotate the temperature control switch clockwise to remove.
4.
To install, reverse the removal procedure.
