Rear Toe Adjustment - Sedan

Rear Toe Adjustment - Sedan

1. Using alignment equipment and the manufacturer's instructions, measure the rear toe.

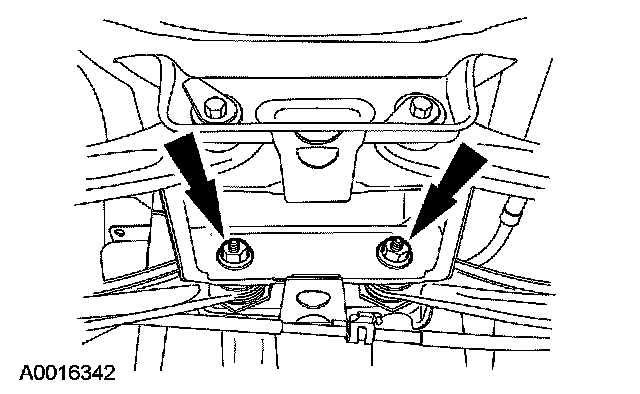

2. Loosen the nuts approximately one full turn.

3. Rotate the adjusting cam to achieve the specified toe setting.

4. CAUTION: Make sure that the toe settings are not disturbed while tightening the nuts.

While holding the adjusting cam, tighten the nuts to 80 Nm (59 ft. lbs.).
5. Recheck the toe settings, adjust as necessary.
