Battery Cable: Service and Repair

BATTERY CABLES

Part 1:

Part 2:

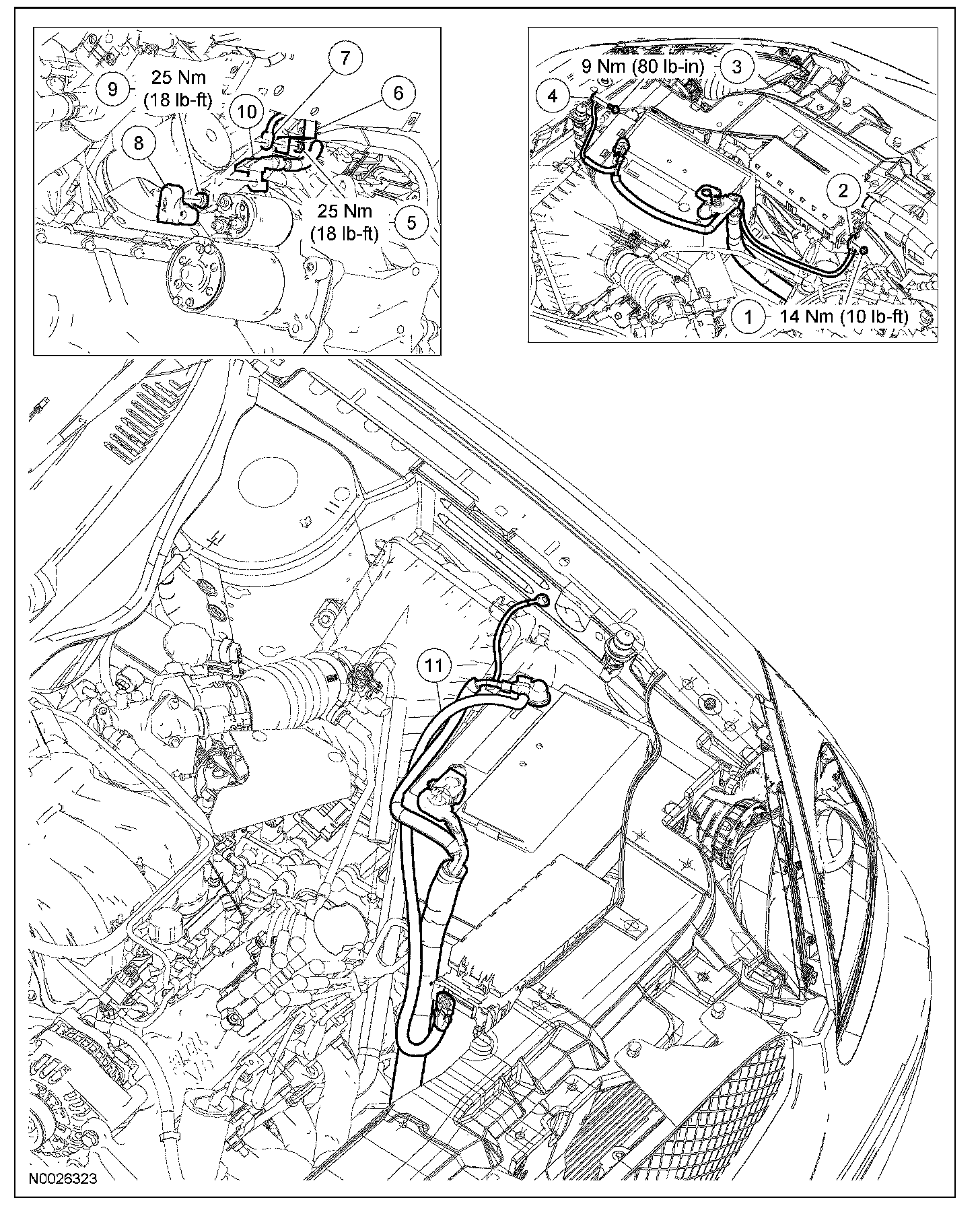

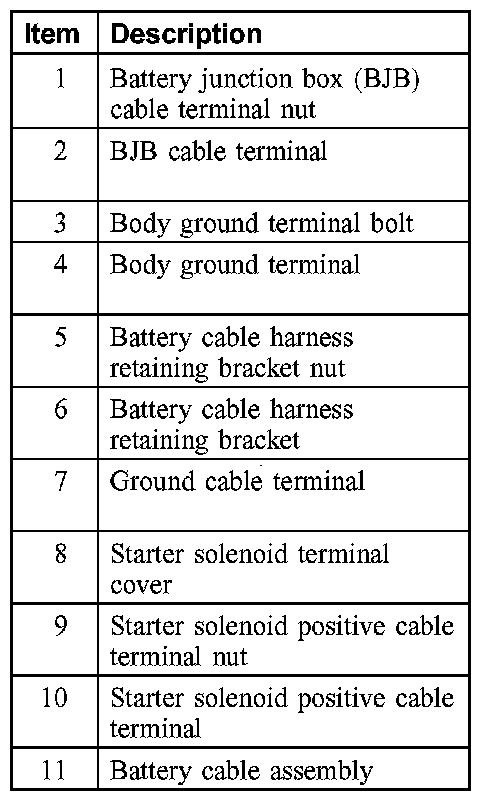

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery.
3. Remove the nut and disconnect the battery cable terminal from the BJB.
- To install, tighten to 14 Nm (10 lb-ft).

4. Remove the bolt and position the body ground terminal aside.
- To install, tighten to 9 Nm (80 lb-in).

5. Remove the nut and position the battery cable harness retaining bracket and battery ground cable terminal aside.
- To install, tighten to 25 Nm (18 lb-ft).

6. Remove the starter solenoid terminal cover.
7. Remove the nut and position the starter solenoid positive cable terminal aside.
- To install, tighten to 25 Nm (18 lb-ft).

8. Remove the battery cable harness assembly from the vehicle.
9. To install, reverse the removal procedure.
