Procedures

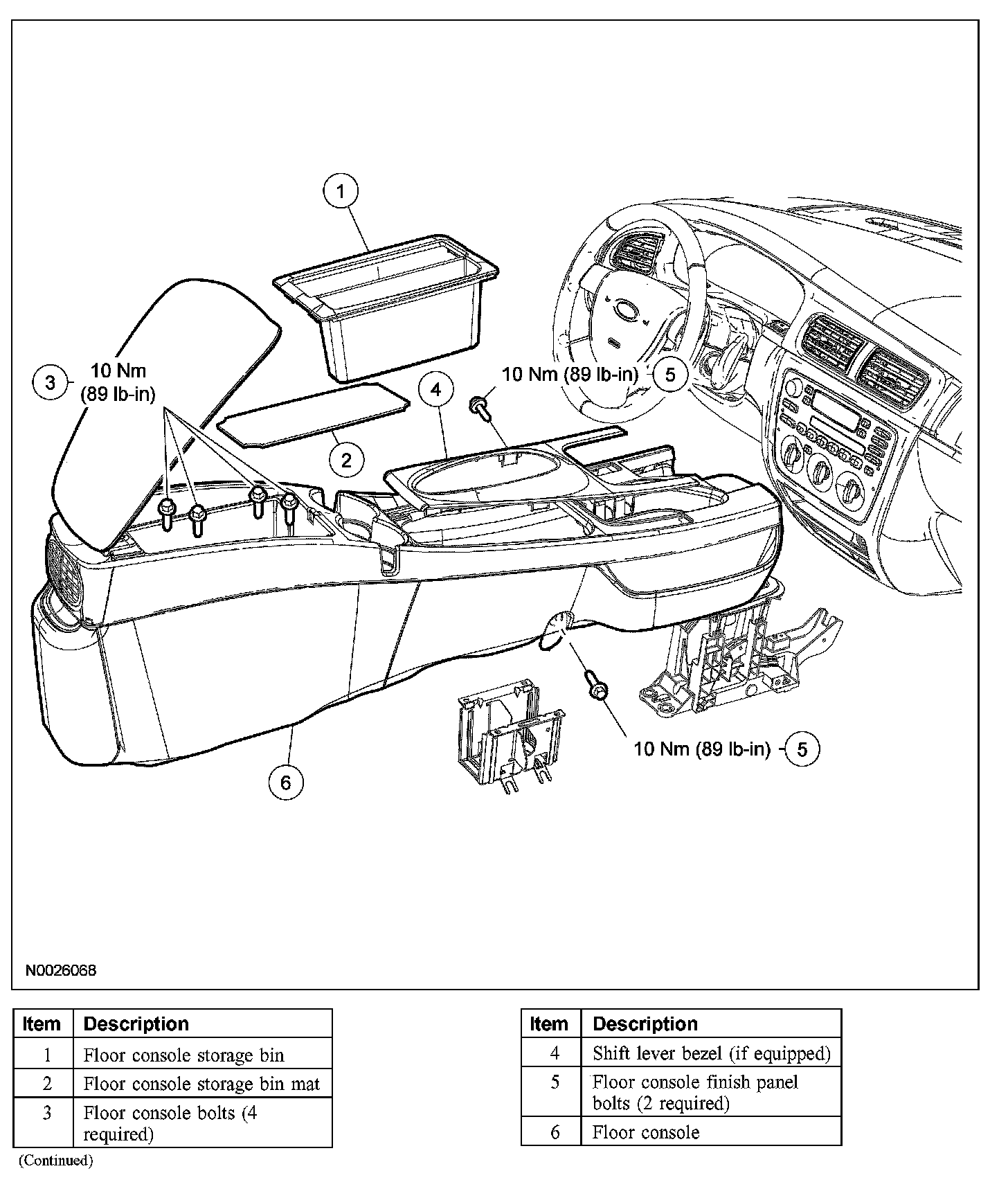

FLOOR CONSOLE







Removal and Installation
1. If equipped, remove the compact disc (CD) changer.
2. If equipped, remove the floor console storage bin.
3. Remove floor console storage bin mat and the 4 floor console bolts.
- To install, tighten to 10 Nm (89 lb-in).

4. Remove the floor console finish panel.
5. Open the 2 floor console finish panel covers and remove the 2 bolts.
- To install, tighten to 10 Nm (89 lb-in).

6. Remove the floor console.
7. To install, reverse the removal procedure.
