Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

Wheel Speed Sensor - Front:





Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

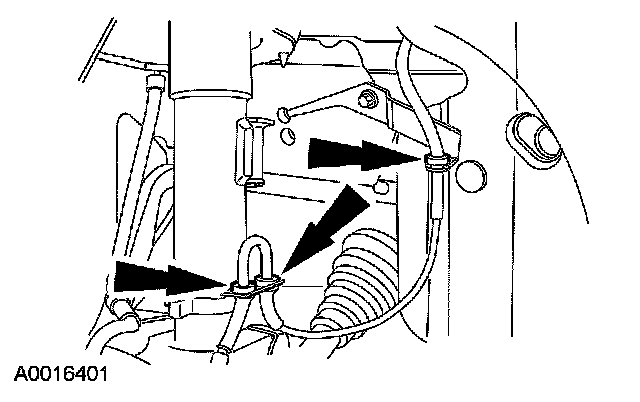

2. Disengage the wiring from the routing brackets.

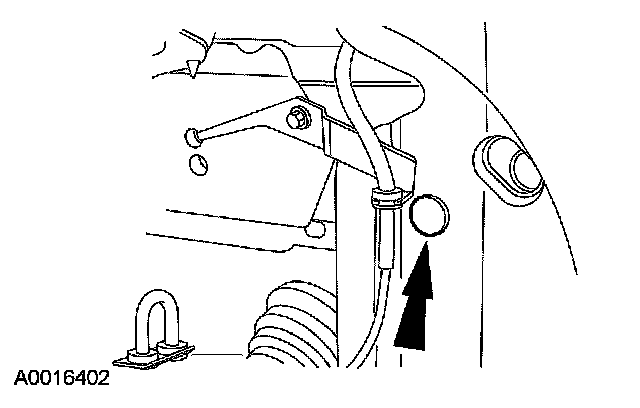

3. Remove the fender splash shield pin-type retainer.
4. Pull back on the splash shield and disconnect the front wheel speed sensor electrical connector.

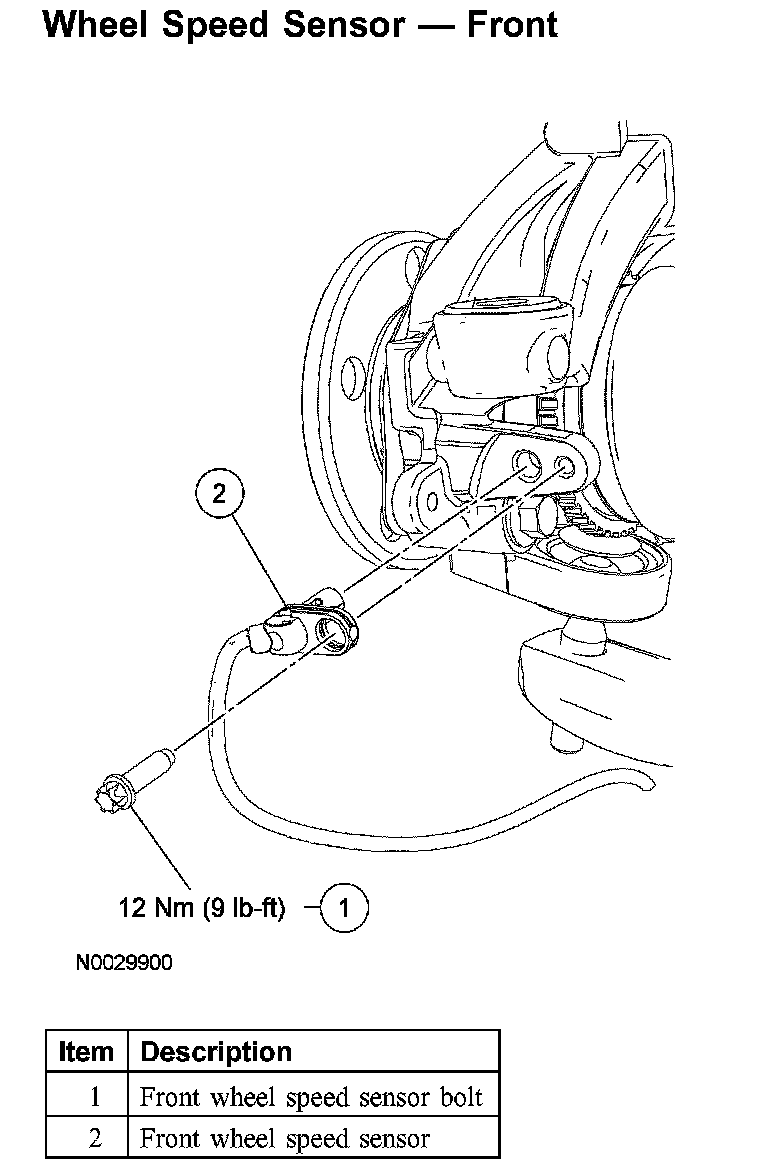

5. Remove the bolt and front wheel speed sensor.
^ To install, tighten to 12 Nm (9 ft. lbs.).
6. To install, reverse the removal procedure.
