Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID

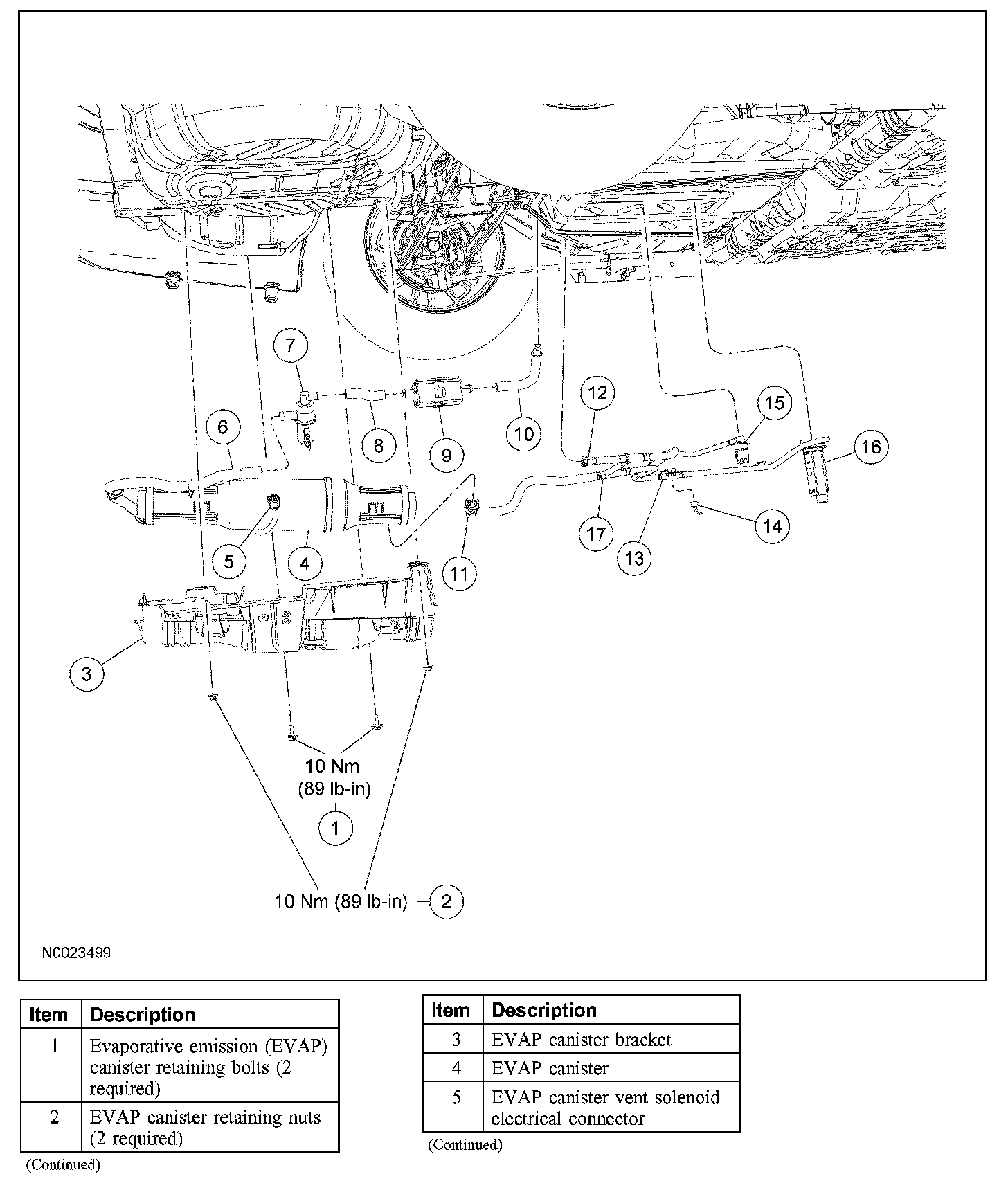

Evaporative Emission (EVAP) System Components - Exploded View (Part 1):

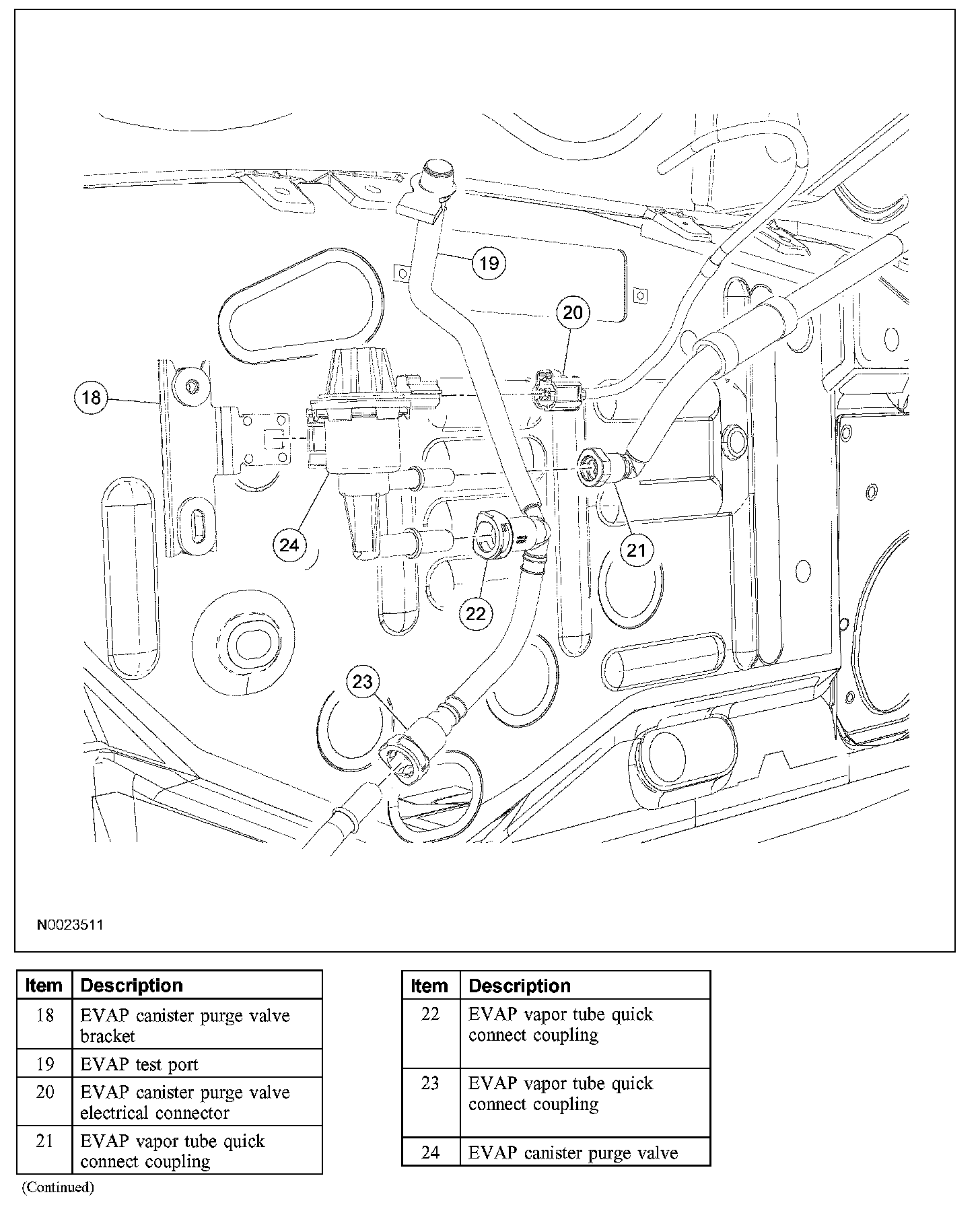

Evaporative Emission (EVAP) System Components - Exploded View (Part 2):






Evaporative Emission (EVAP) System Components - Exploded View (Part 3):






Exploded View

Removal and Installation
1. Remove the evaporative emission (EVAP) canister assembly.
2. Disconnect the electrical connector from the EVAP canister vent solenoid.
3. Disconnect the EVAP tube from the EVAP canister vent solenoid.
4. Pull outward and remove the EVAP canister vent solenoid from EVAP canister assembly.
- To install, apply clean engine oil to the O-ring.

5. To install, reverse the removal procedure.
