Climate Control Assembly

CLIMATE CONTROL ASSEMBLY

Removal and Installation
1. Depower the supplemental restraint system (SRS).

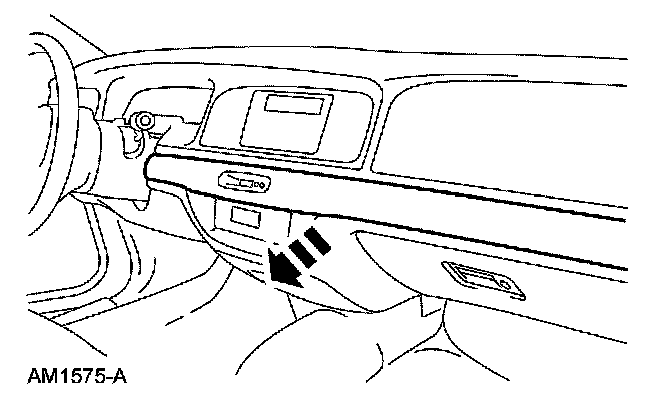

2. Detach the finish panel.

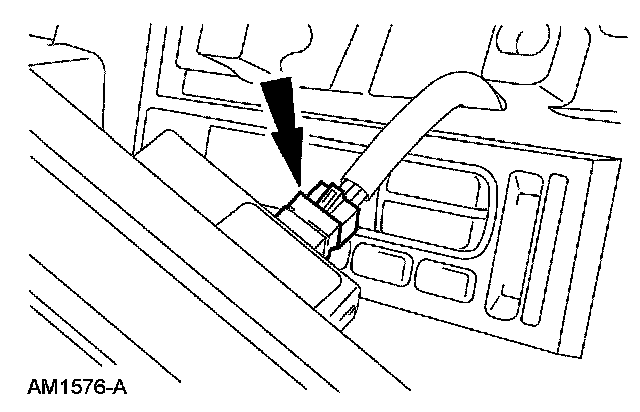

3. Disconnect the electrical connector.

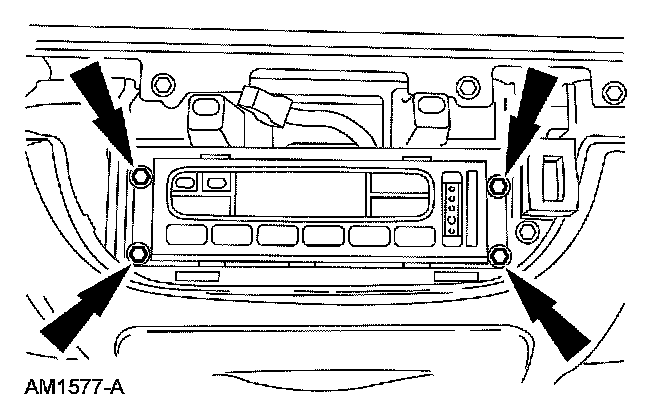

4. Remove the 4 climate control assembly screws.

5. Remove the climate control assembly.

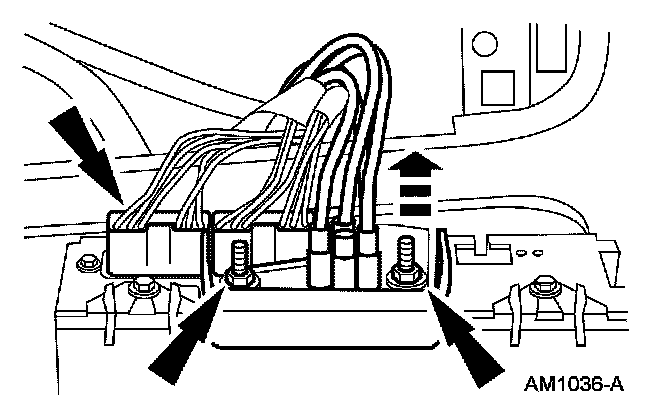

- Remove the nuts and disconnect the vacuum harness.
- Disconnect the wire harness connectors and remove the climate control assembly.

6. To install, reverse the removal procedure.
