Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

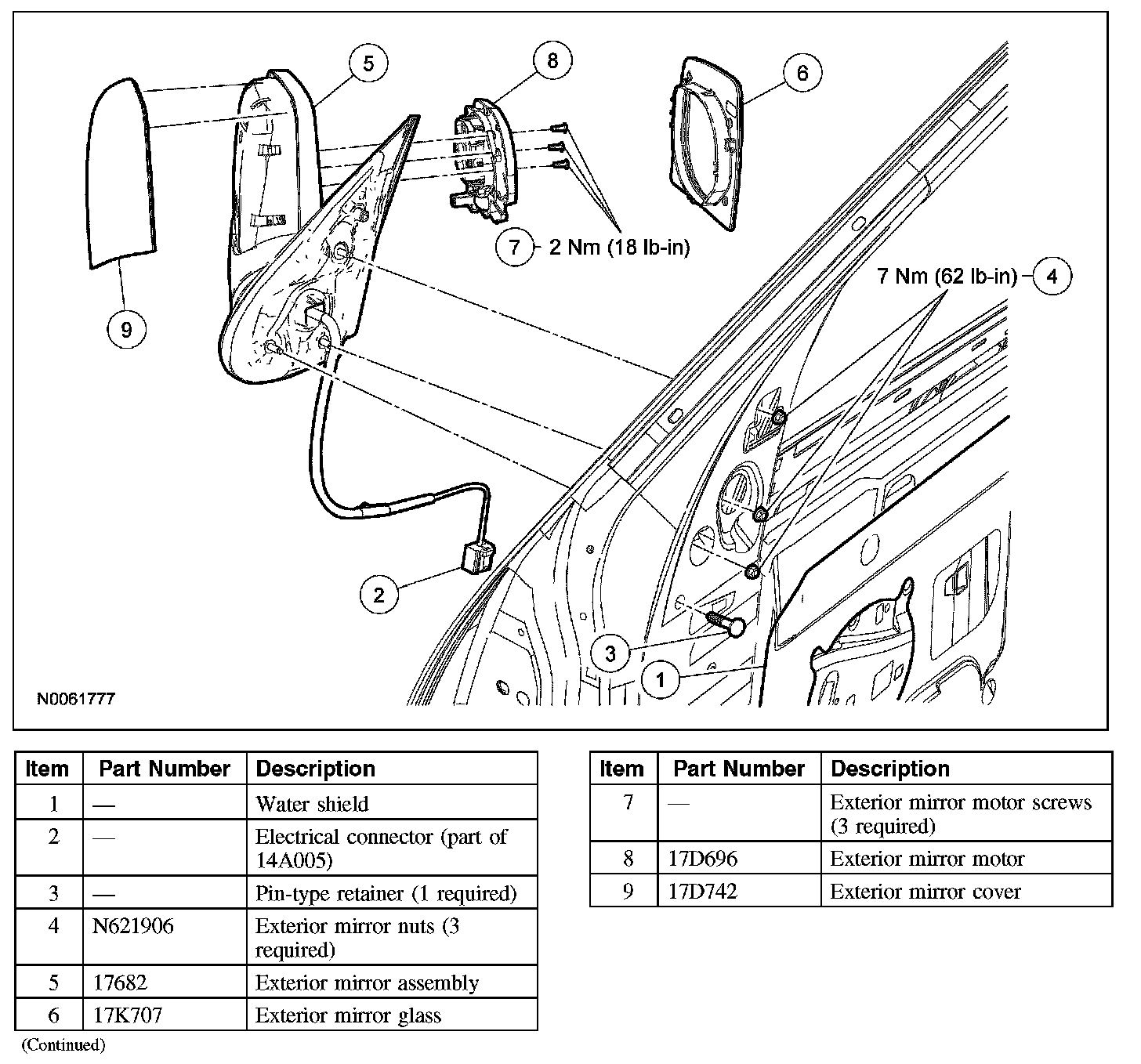

Exploded View

Removal and Installation







1. Push in the upper edge of the exterior mirror glass to the maximum travel and gently pull outward until the exterior mirror glass is released.
- If equipped, disconnect the mirror glass electrical connector.

2. Remove the exterior mirror motor screws.
- To install, tighten to 2 Nm (18 lb-in).

3. Disconnect the electrical connectors and remove the motor.
4. To install, reverse the removal procedure.
