Brake Caliper Support Bracket, Rear

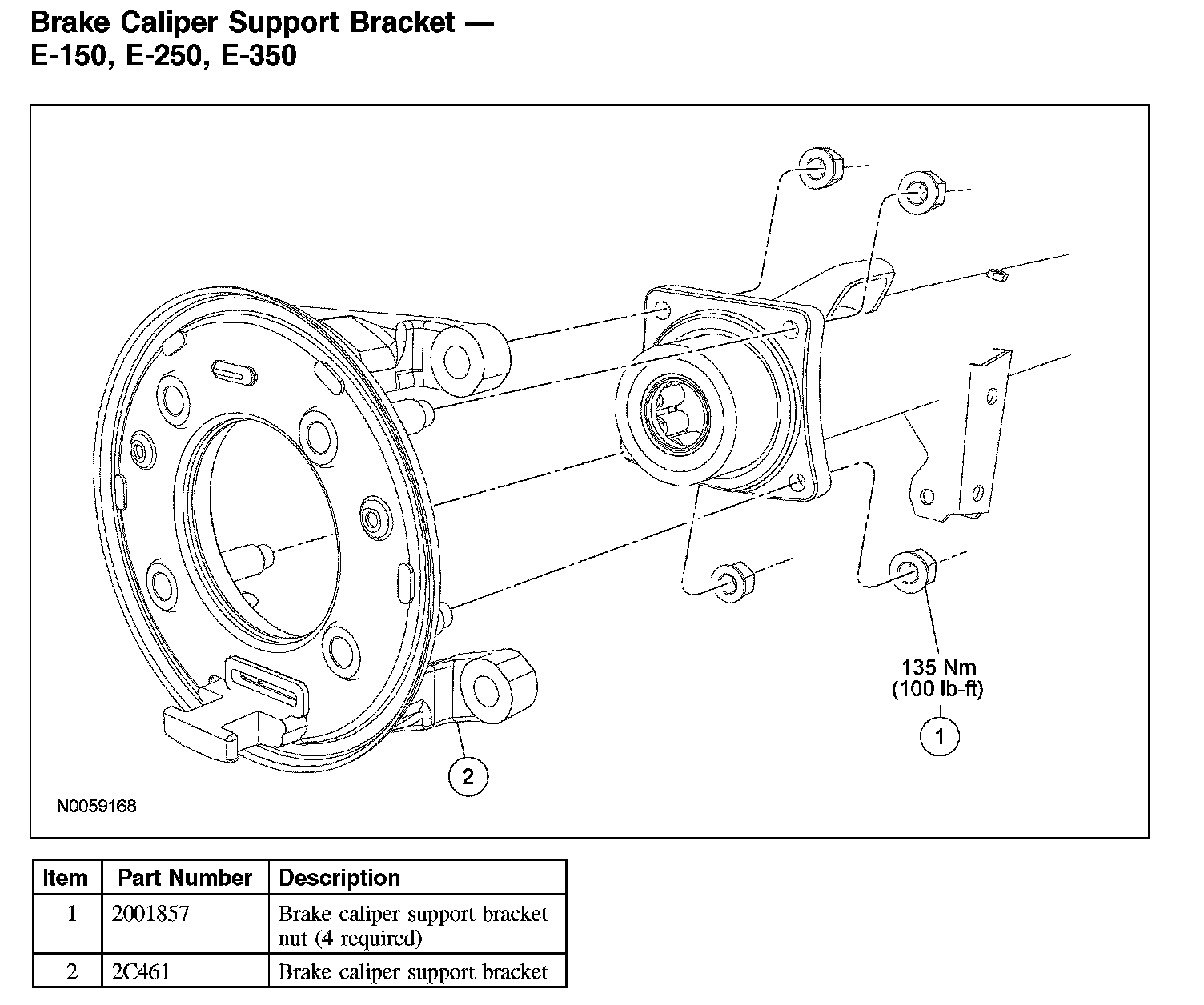

Brake Caliper Support Bracket - E-150, E-250, E-350Brake Caliper Support Bracket - E-150, E-250, E-350:
Removal and Installation 1.
Remove the
parking brake shoes.
2.
Disconnect the parking brake cable and conduit.
3.
Remove the 4
brake caliper support bracket nuts.
^
To install, tighten to
135 Nm (100 ft. lbs). 4.
To install, reverse the removal procedure.
