Air Flow Meter/Sensor: Service and Repair

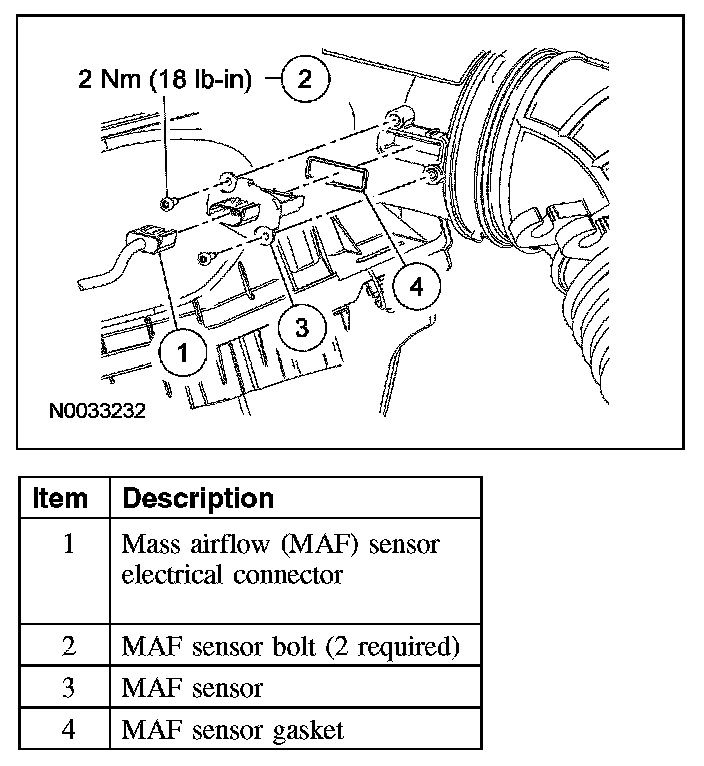

MASS AIR FLOW (MAF) SENSOR

Removal and Installation

1. CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

Turn the ignition switch to the OFF position.

2. Disconnect the mass airflow (MAF) sensor electrical connector.
3. Remove the 2 screws and the MAF sensor.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
