Exhaust Pressure Sensor: Service and Repair

EXHAUST PRESSURE SENSOR

Removal and Installation

1. CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

Turn the ignition switch to the OFF position.

2. Remove the engine cover.

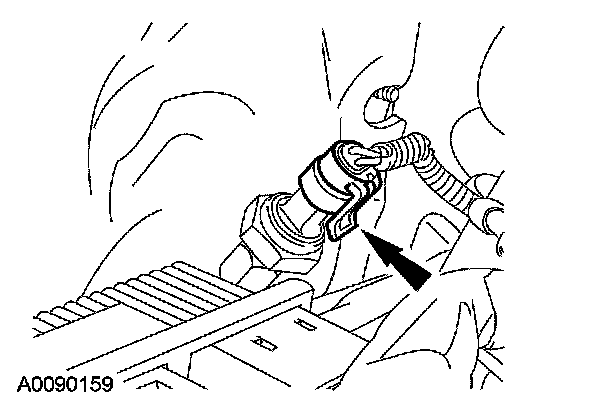

3. Disconnect the exhaust pressure (EP) sensor electrical connector.

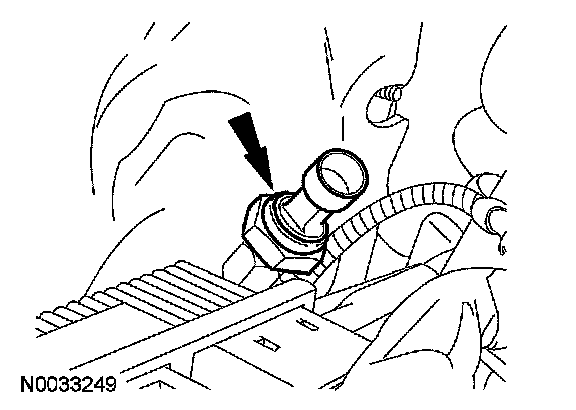

4. CAUTION: Support the EP sensor tube flange nut when removing the EP sensor.

Remove the EP sensor.
- To install, tighten to 20 Nm (15 lb-ft).

5. To install, reverse the removal procedure.
