Test P: Misfire/Injector Driver Circuit Operation



PINPOINT TEST P: MISFIRE/INJECTOR DRIVER CIRCUIT OPERATION

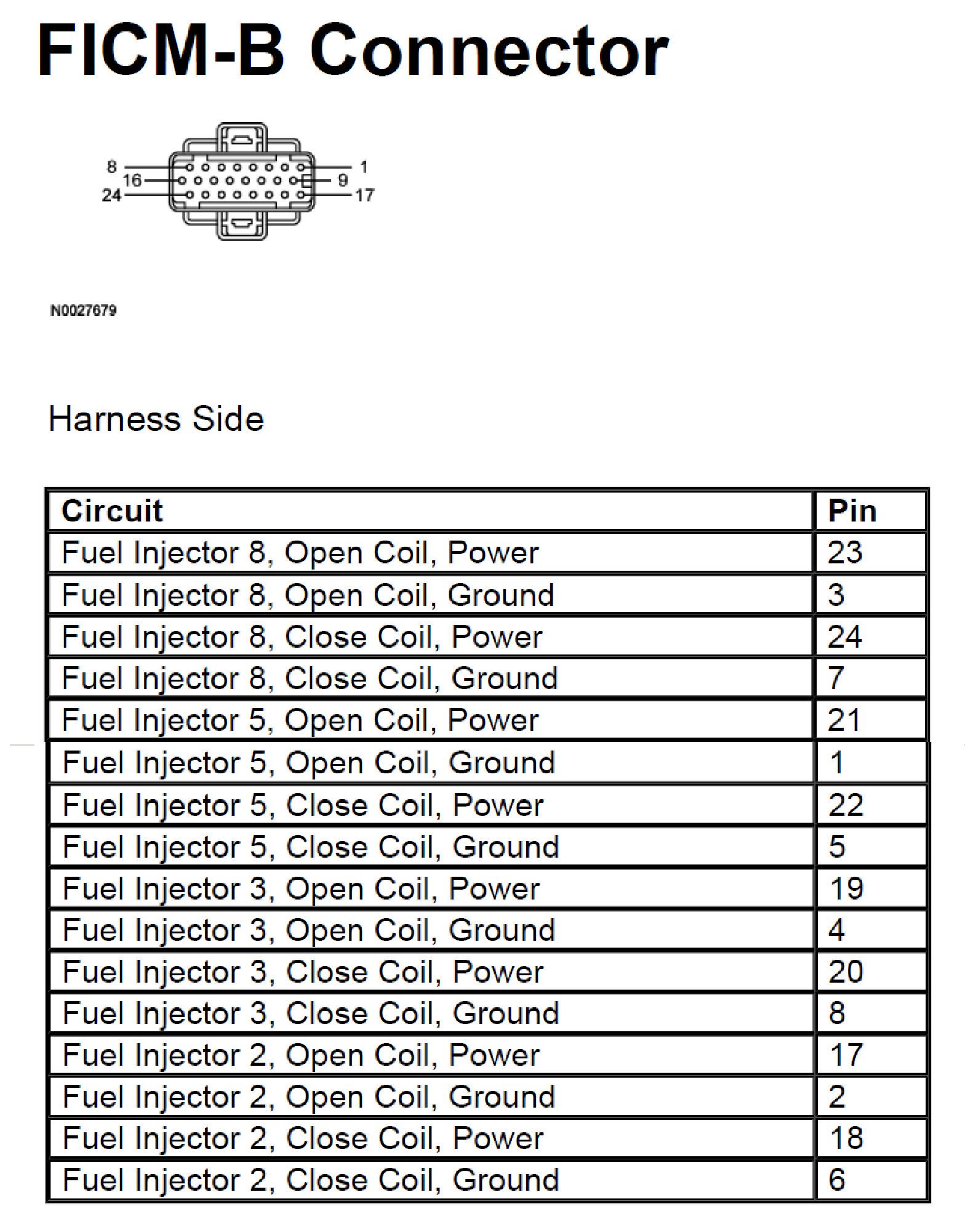

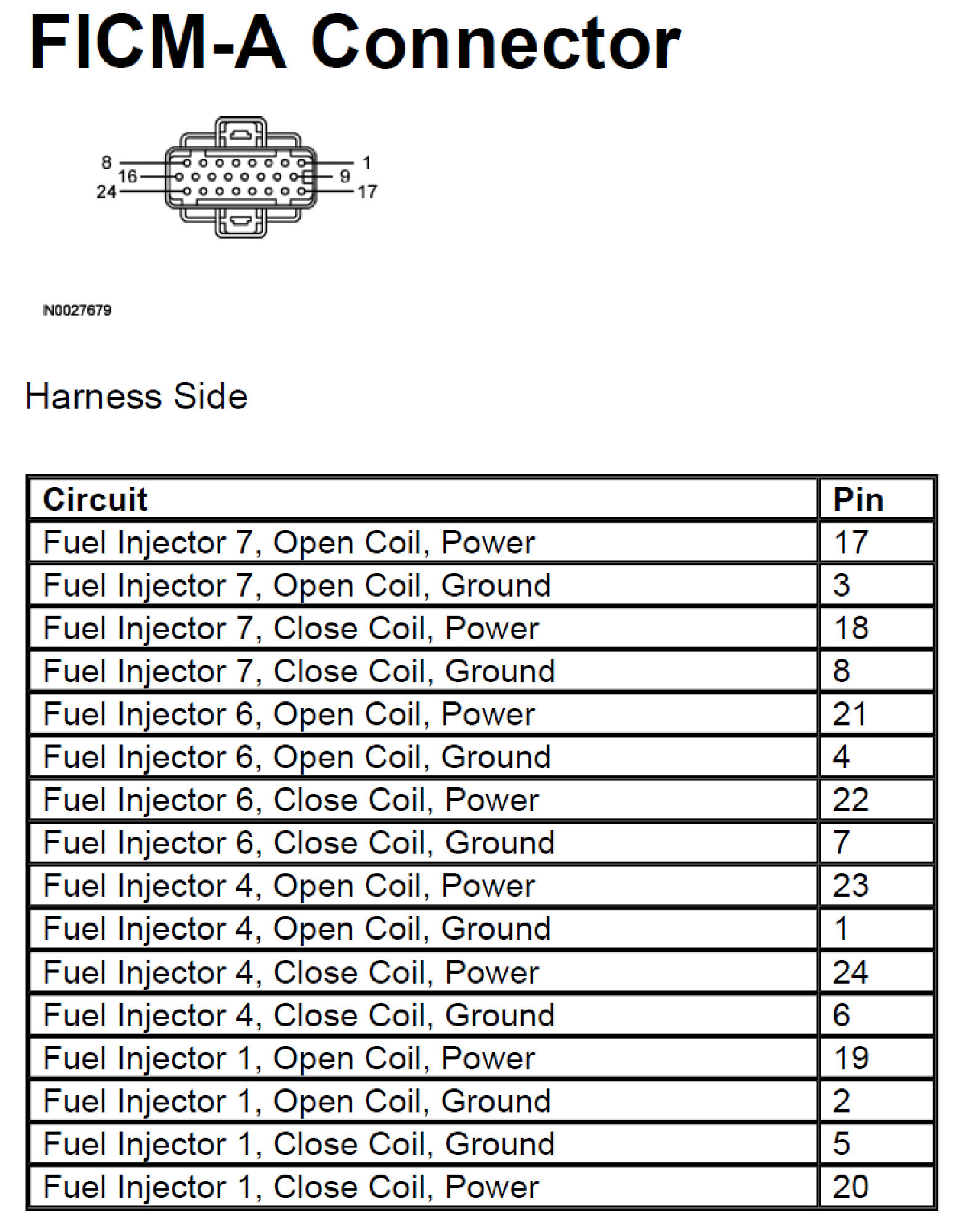

Note: Inspect the fuel injector control module ( FICM) harness for damage chafing and correct routing within the engine compartment and around engine components.

This pinpoint test is intended to diagnose the following:

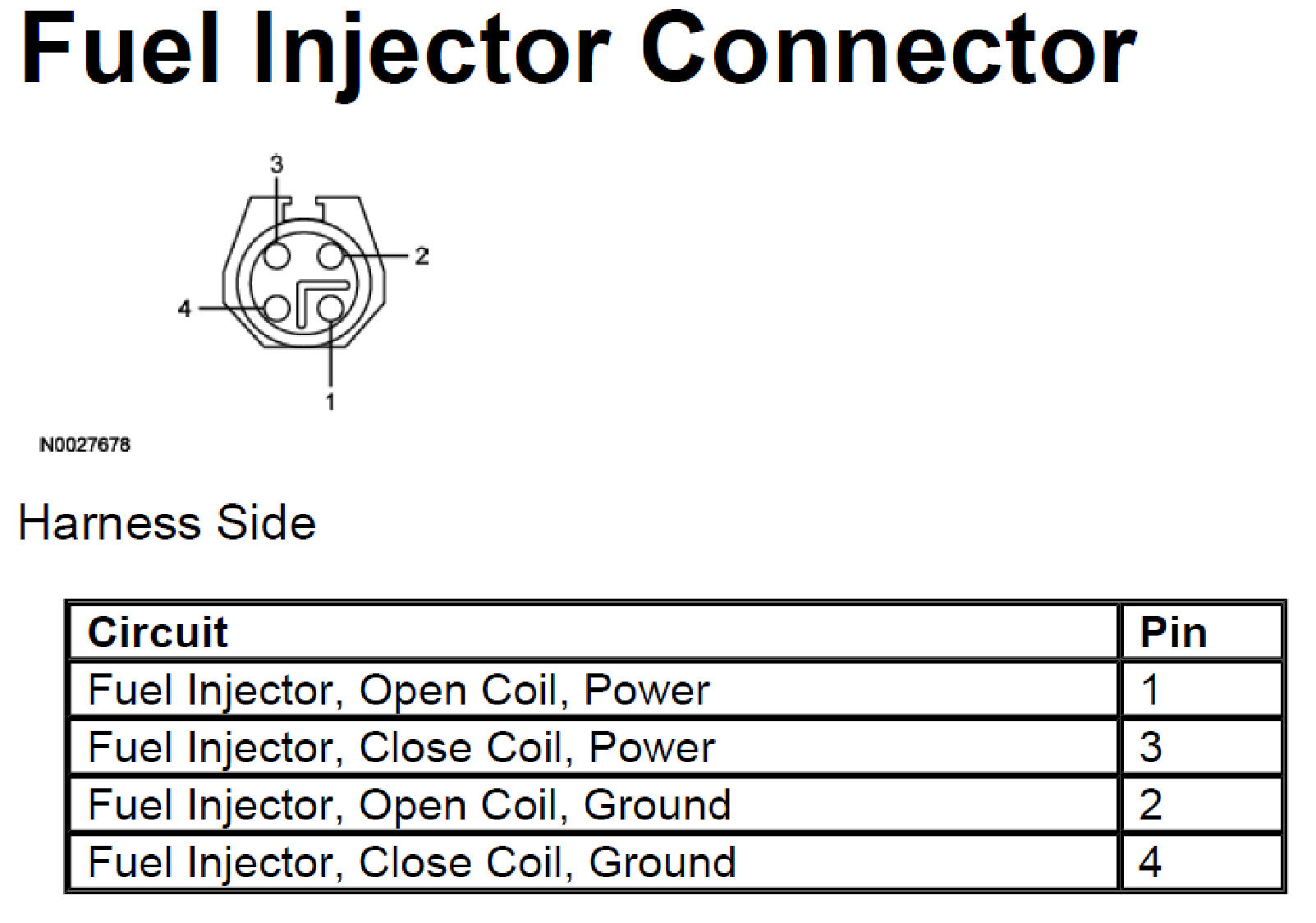

^ fuel injector

^ harness circuits: fuel injector close coil power and ground and fuel injector open coil power and ground

^ FICM (12B559)

^ powertrain control module ( PCM)

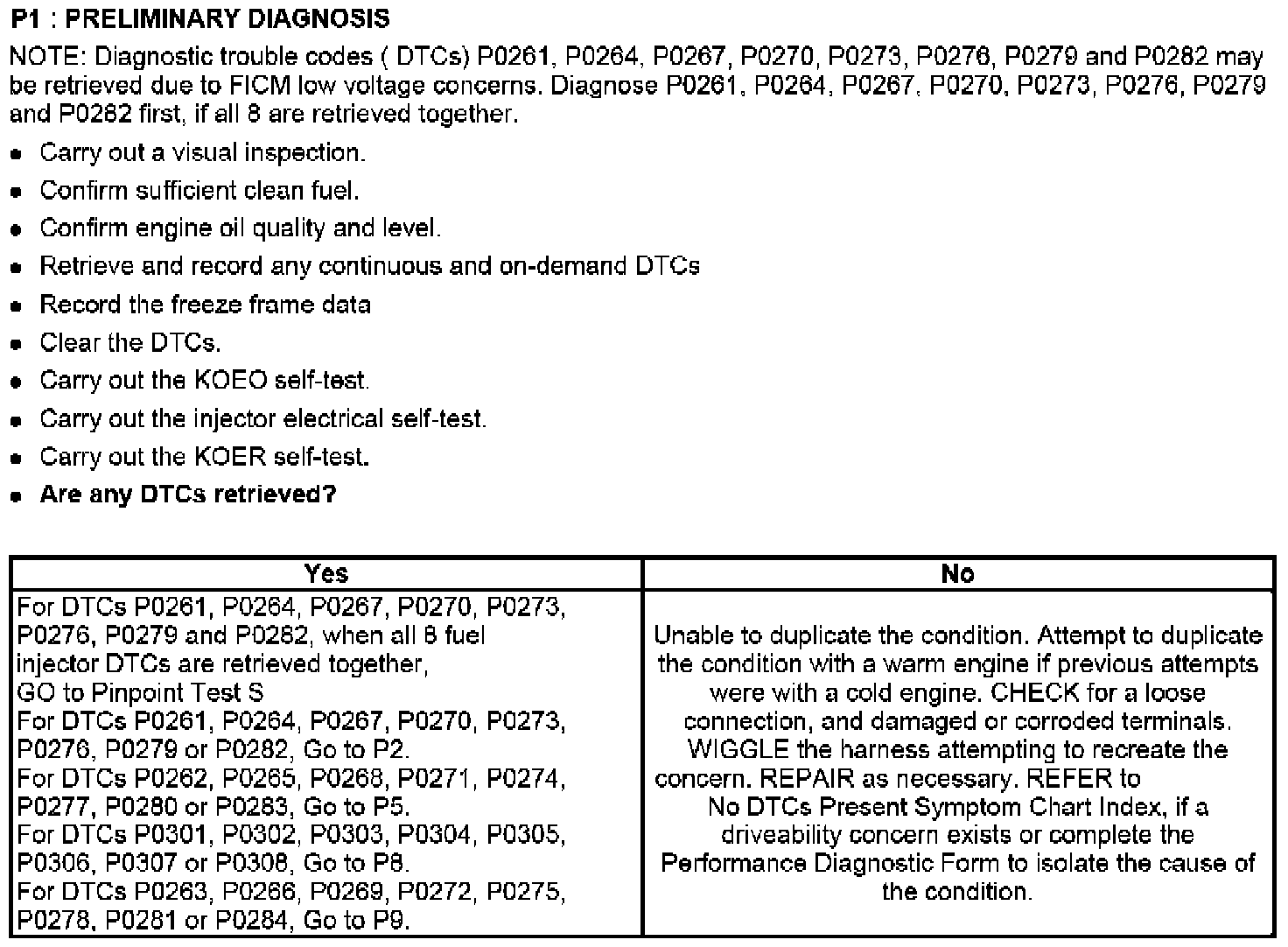

P1:

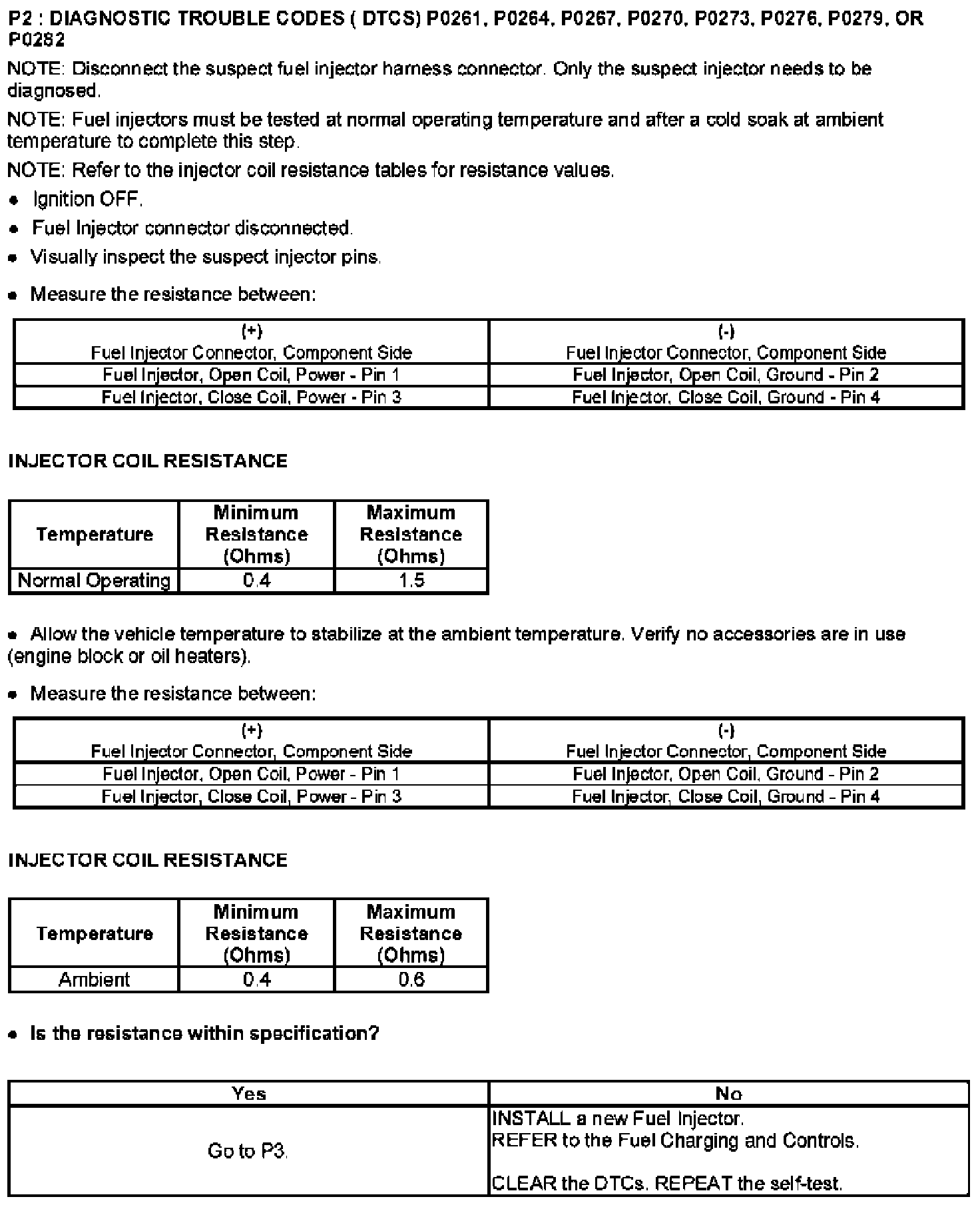

P2:

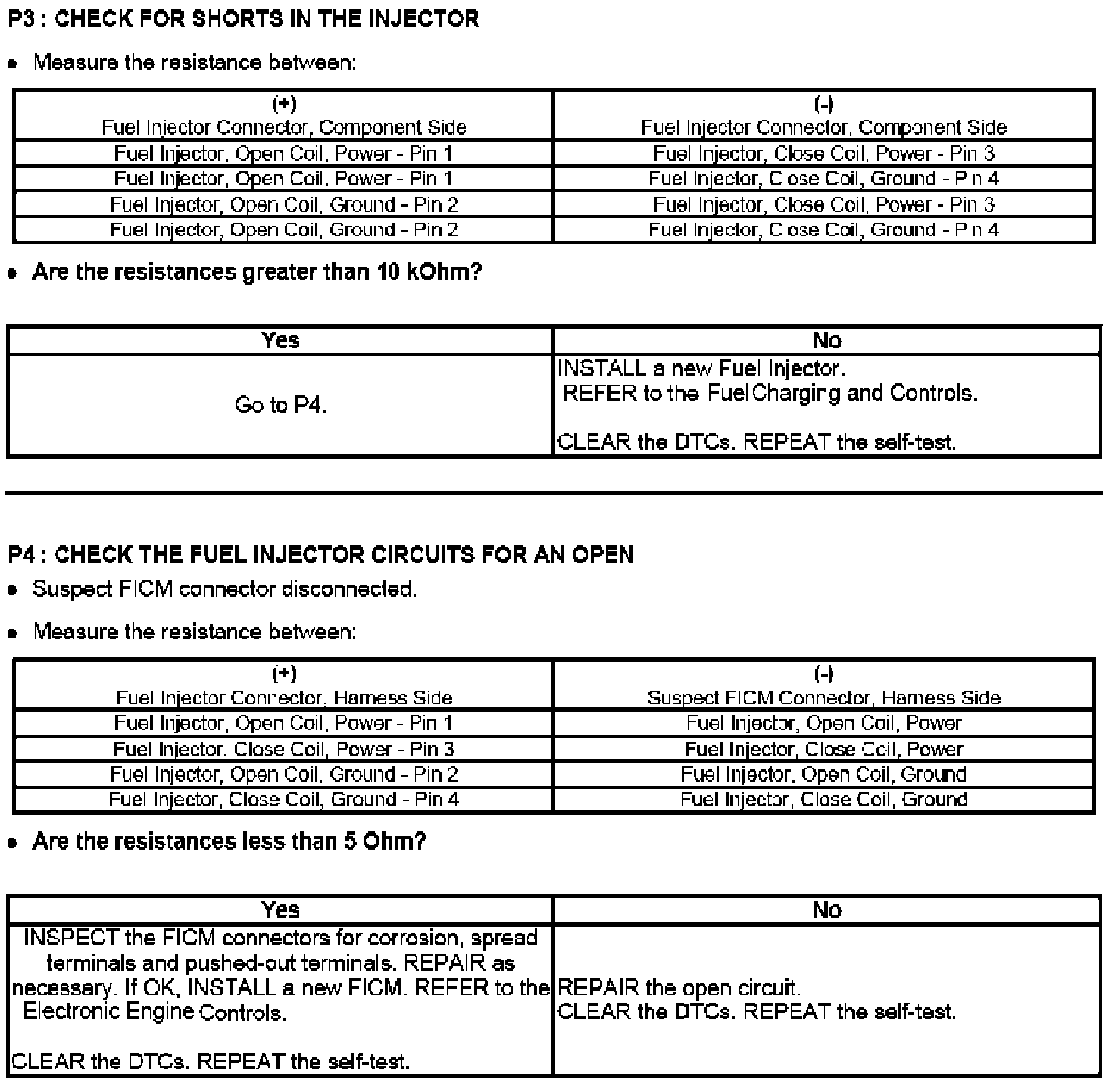

P3 - P4:

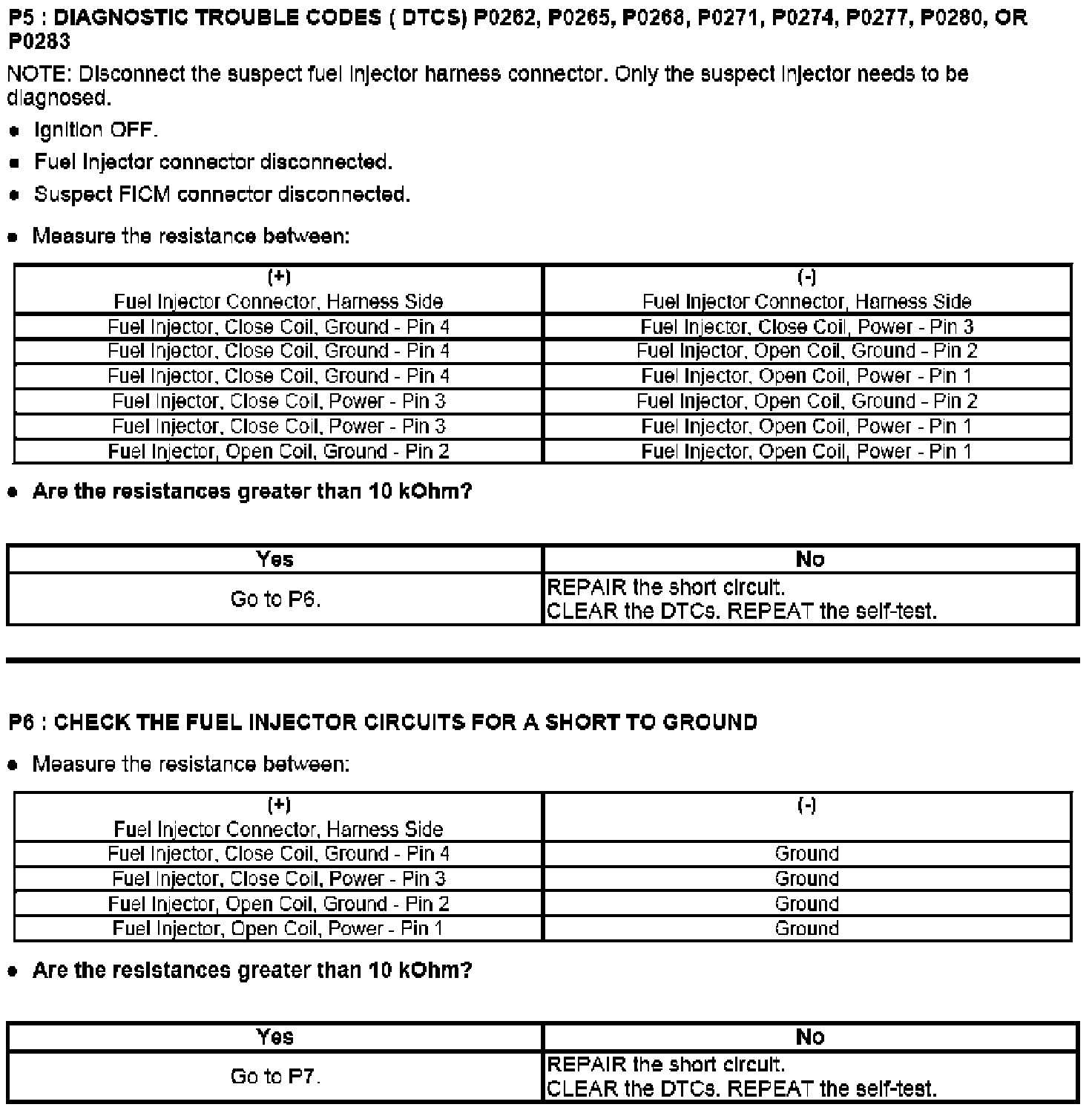

P5 - P6:

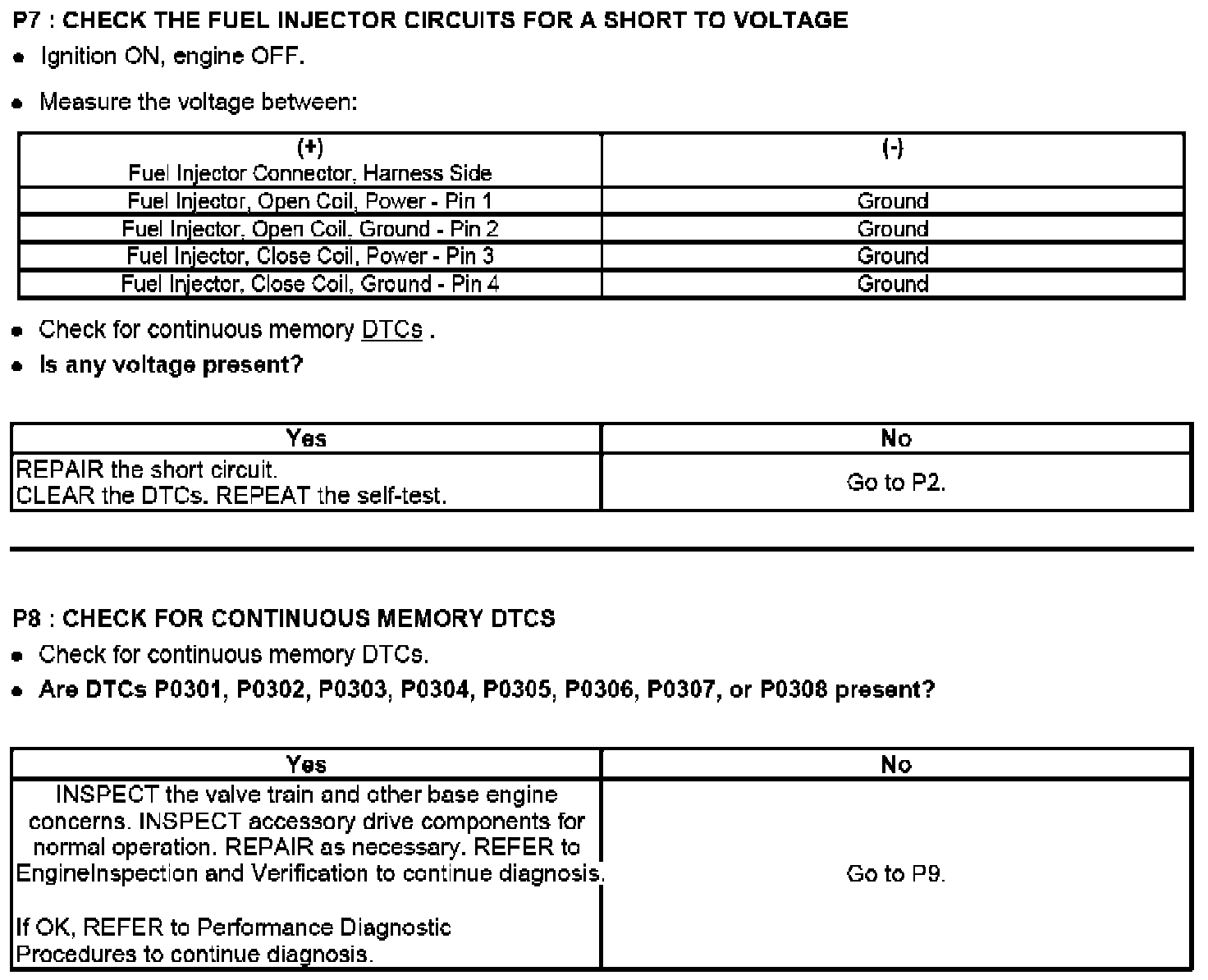

P7 - P8:

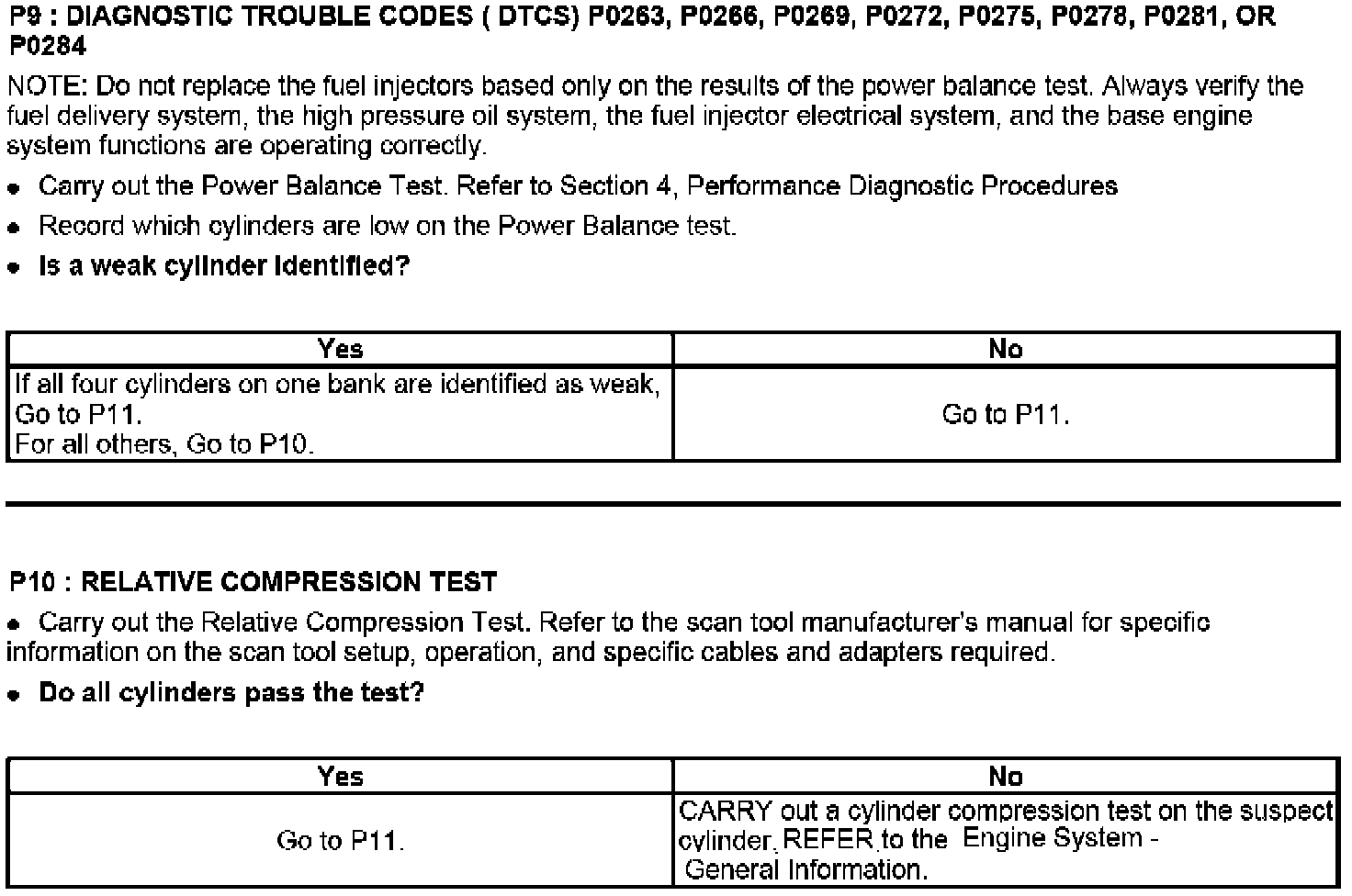

P9 - P10:

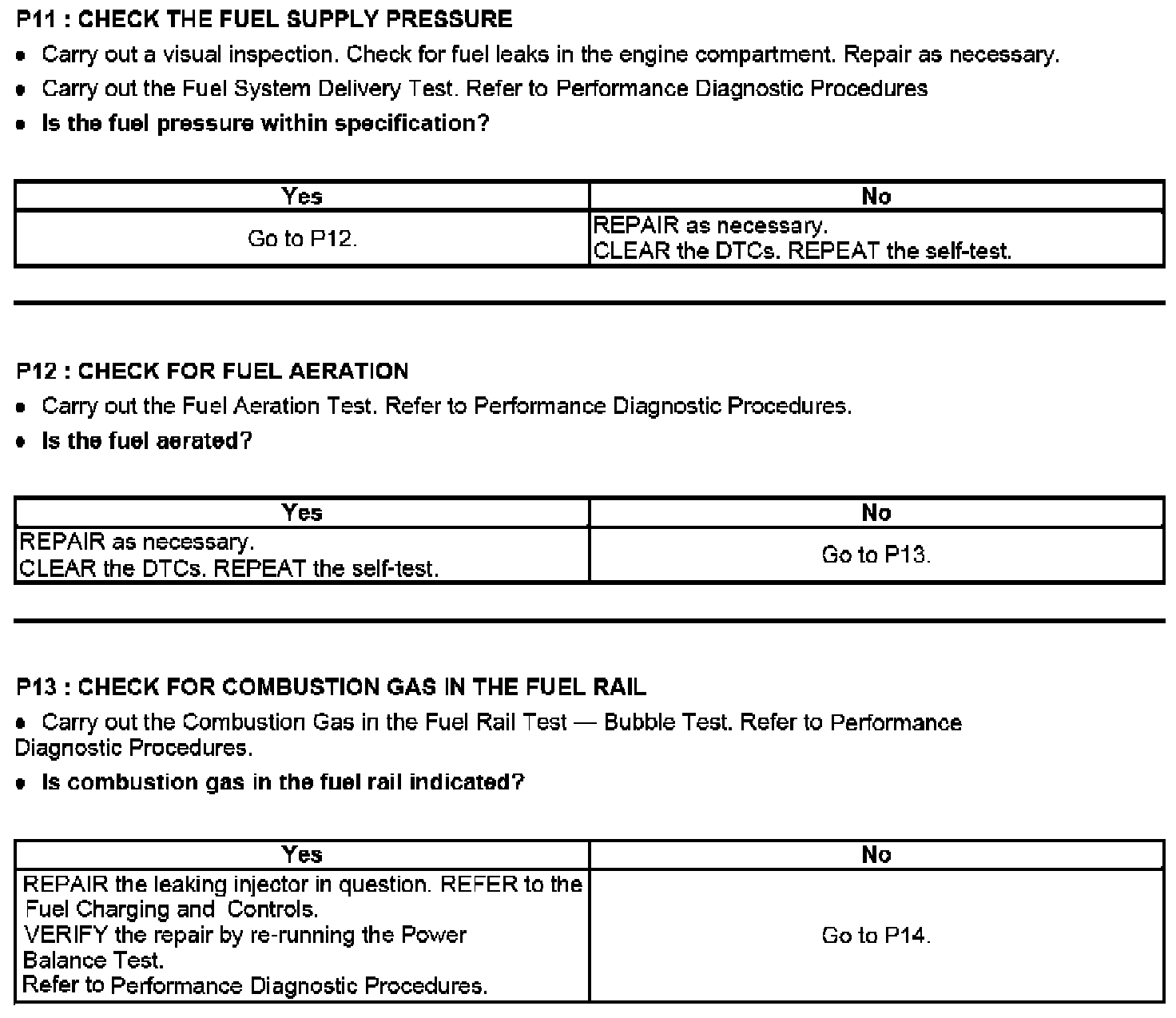

P11 - P13:

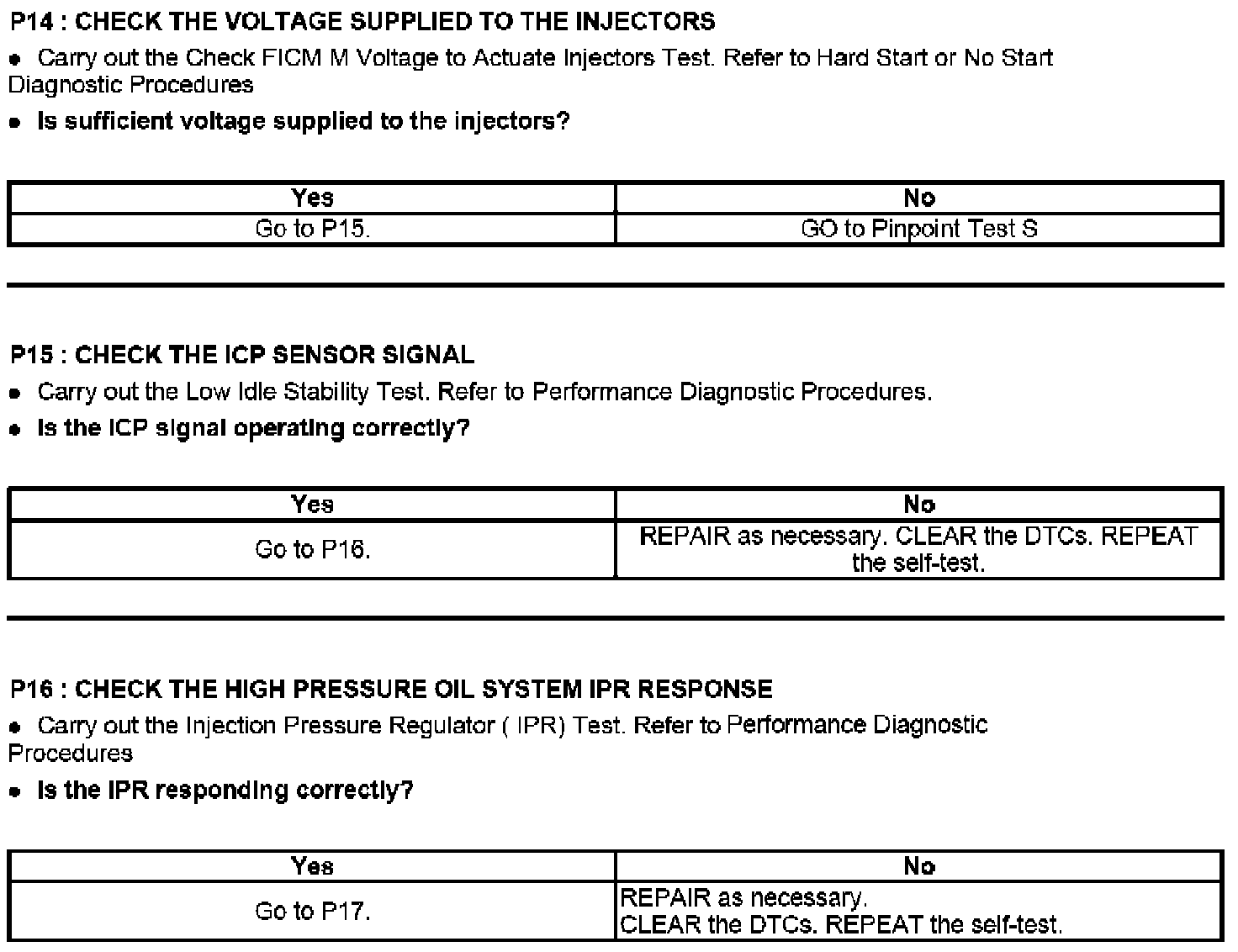

P14 - P16:





P17 - P19:
