Tests AO: Injector Control Pressure Too High
PINPOINT TEST AO: INJECTOR CONTROL PRESSURE TOO HIGHThis pinpoint test is intended to diagnose the following:
^
fuel system
^
high pressure oil system
^

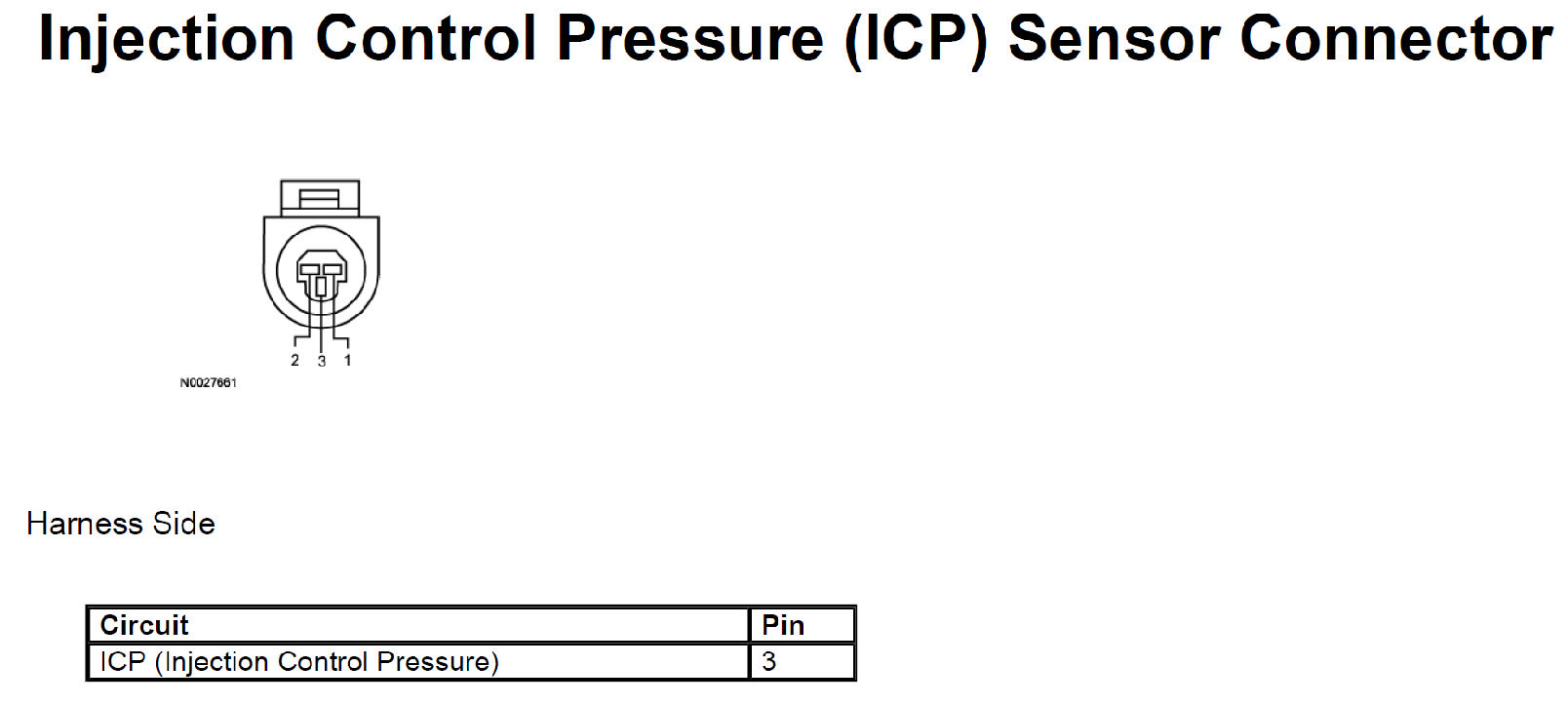

ICP sensor
^
IPR valve

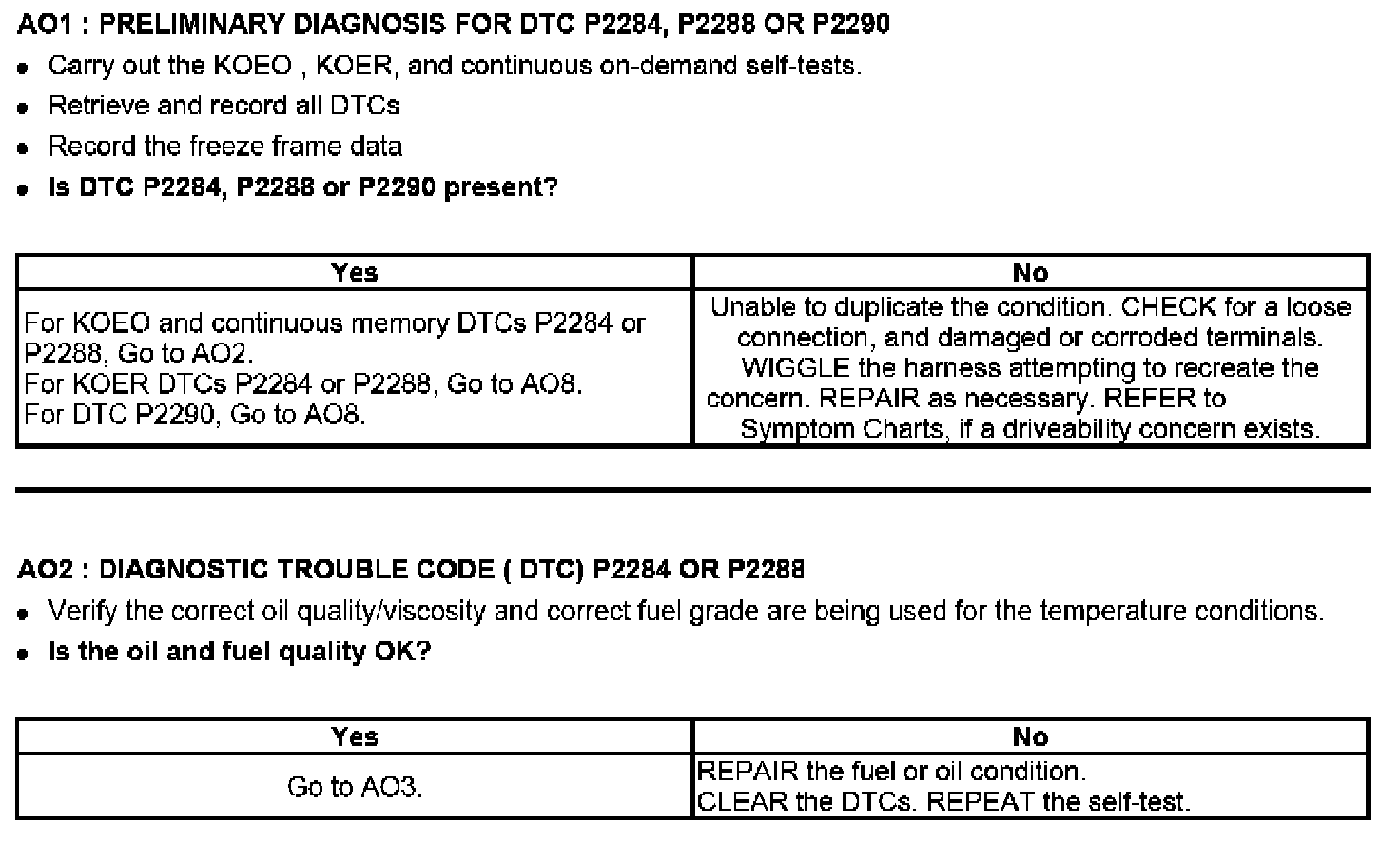

AO1 - AO2:

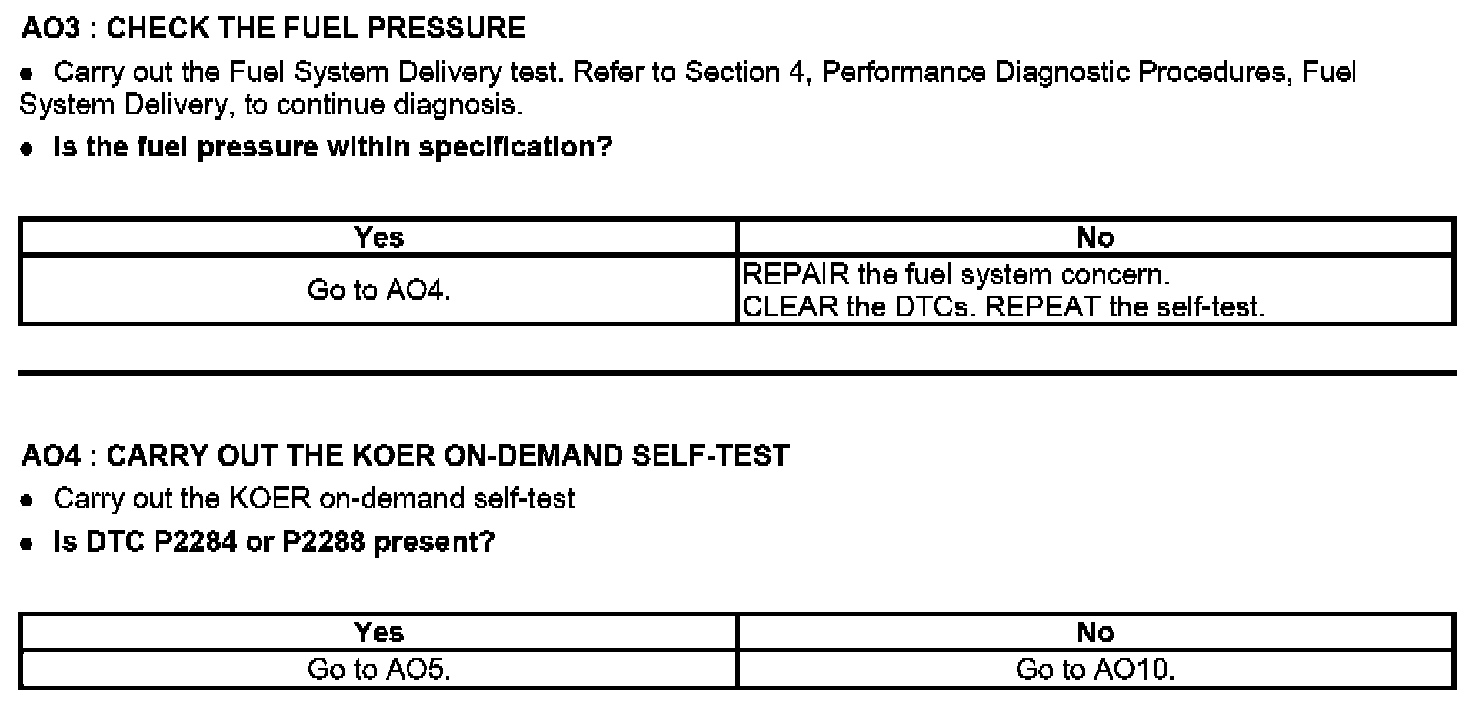

AO3 - AO4:

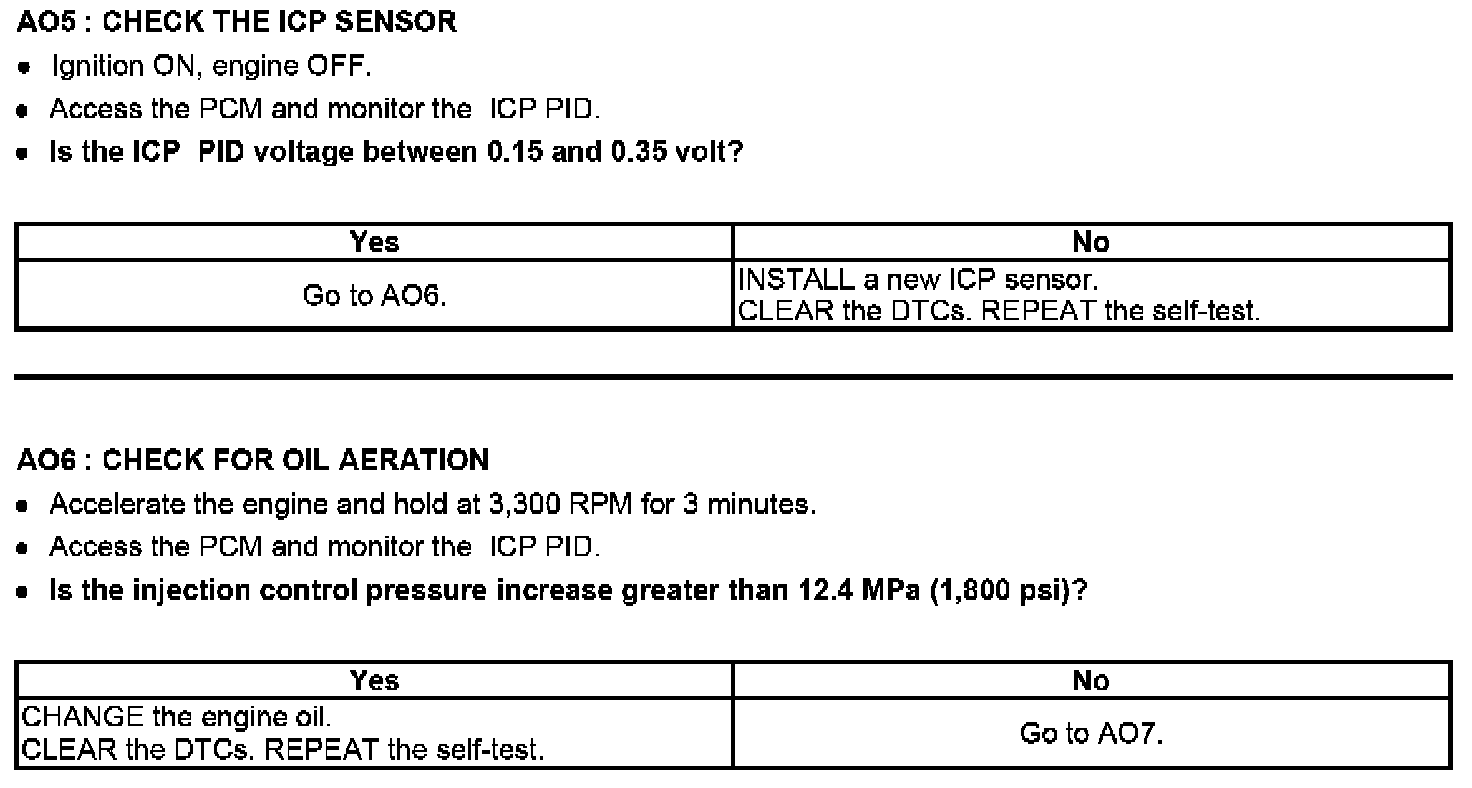

AO5 - AO6:

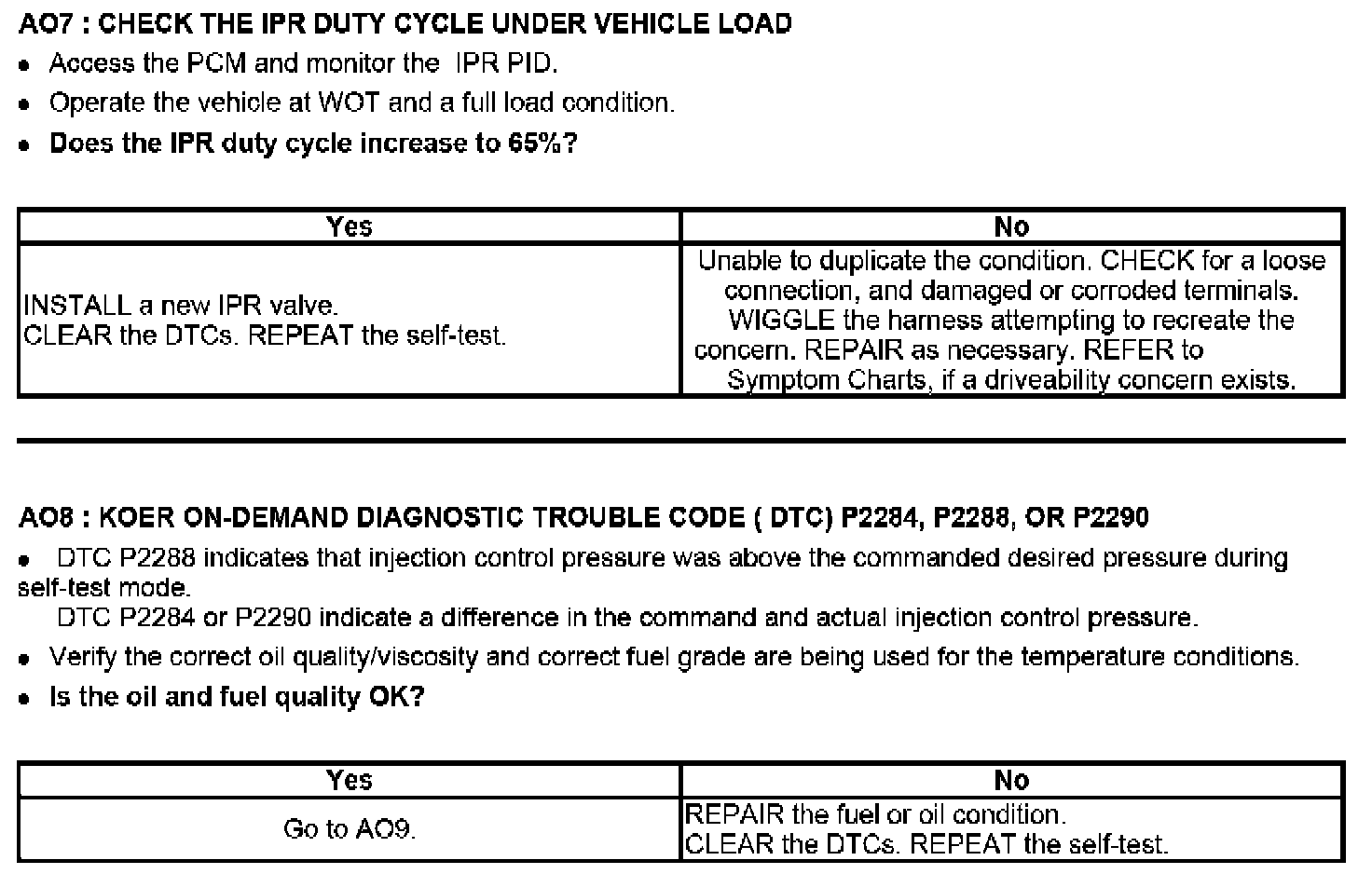

AO7 - AO8:

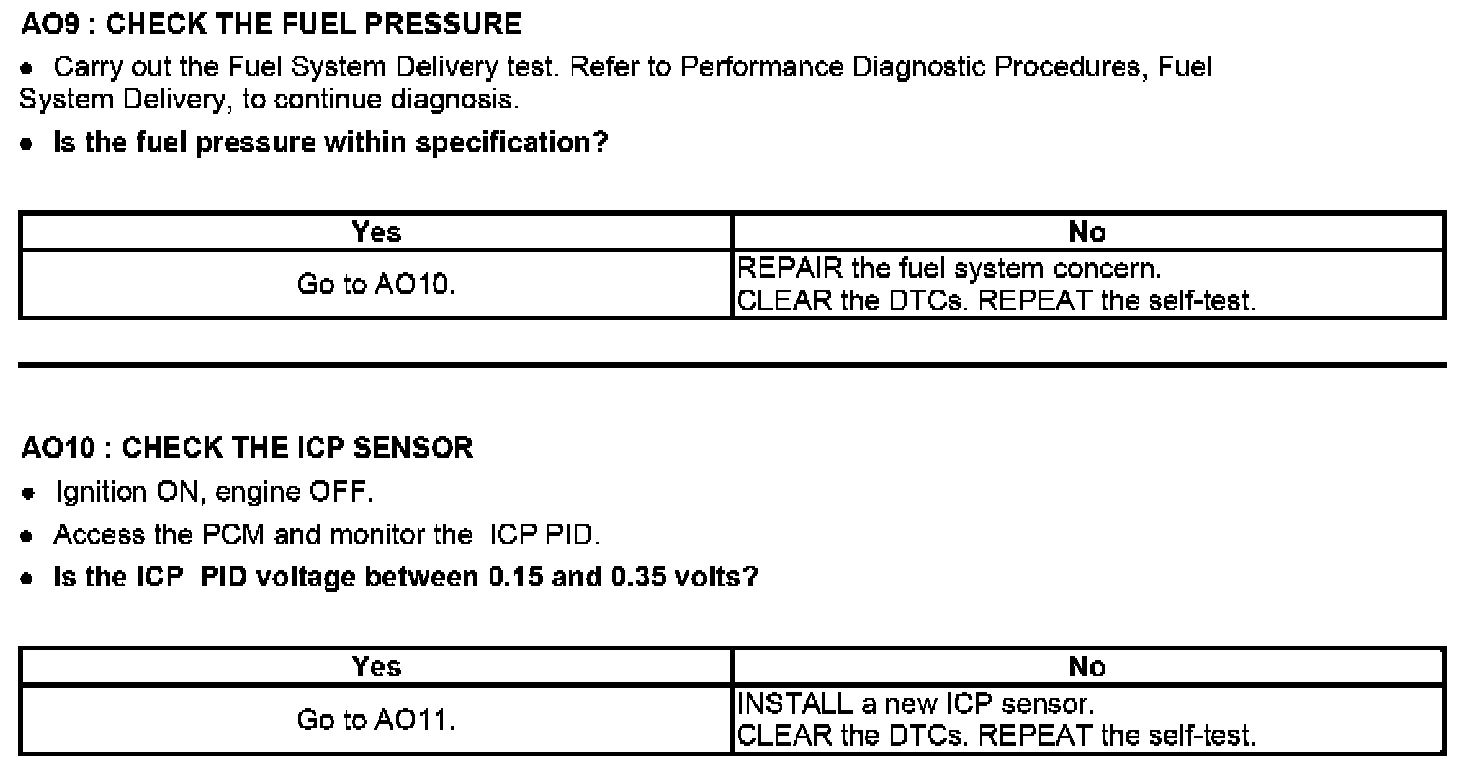

AO9 - AO10:

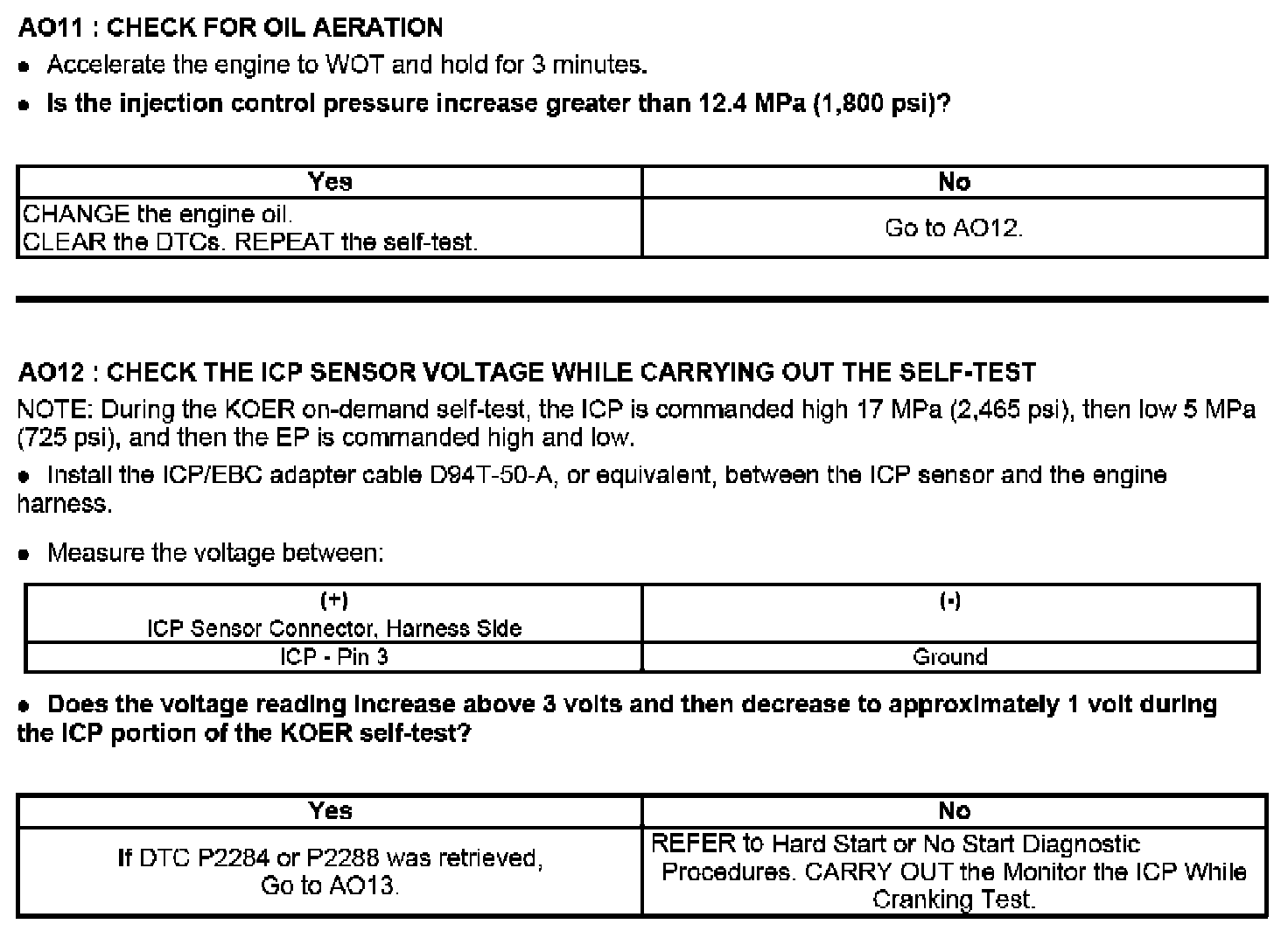

AO11 - AO12:

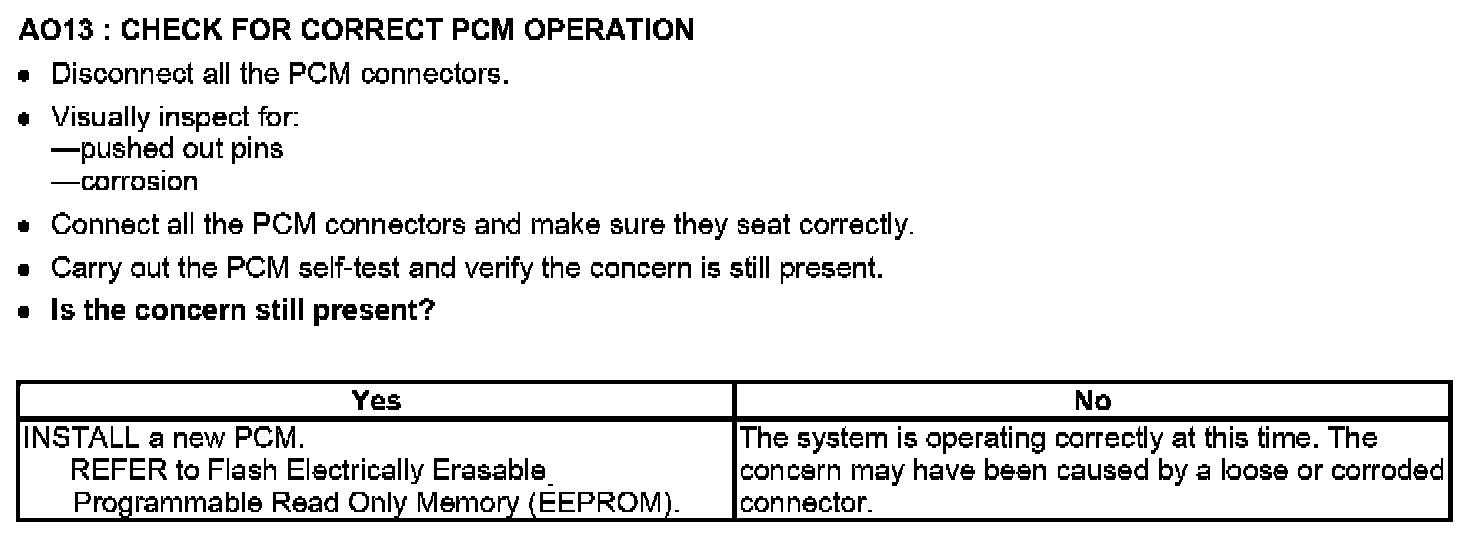

AO13:
