Tests AT: Fuel Injector Control Module (FICM) Circuit Fuel Delivery Error

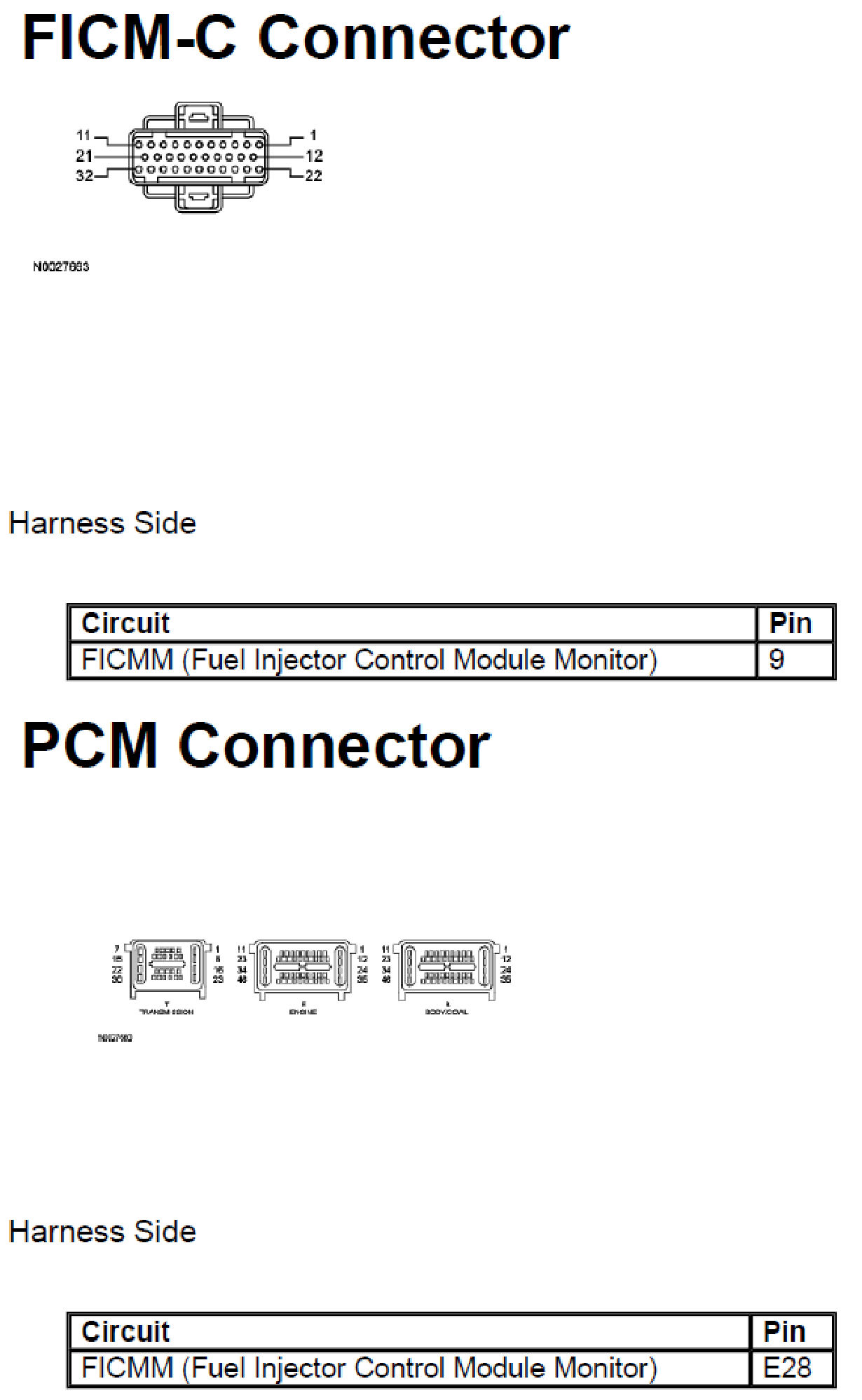

PINPOINT TEST AT: FUEL INJECTOR CONTROL MODULE (FICM) CIRCUIT FUEL DELIVERY ERRORThis pinpoint test is intended to diagnose the following:
^
FICMM circuitry open
^
FICMM circuitry short to ground
^
crankshaft position (CKP) or camshaft position (CM P) signal noise
^
powertrain control module ( PCM)

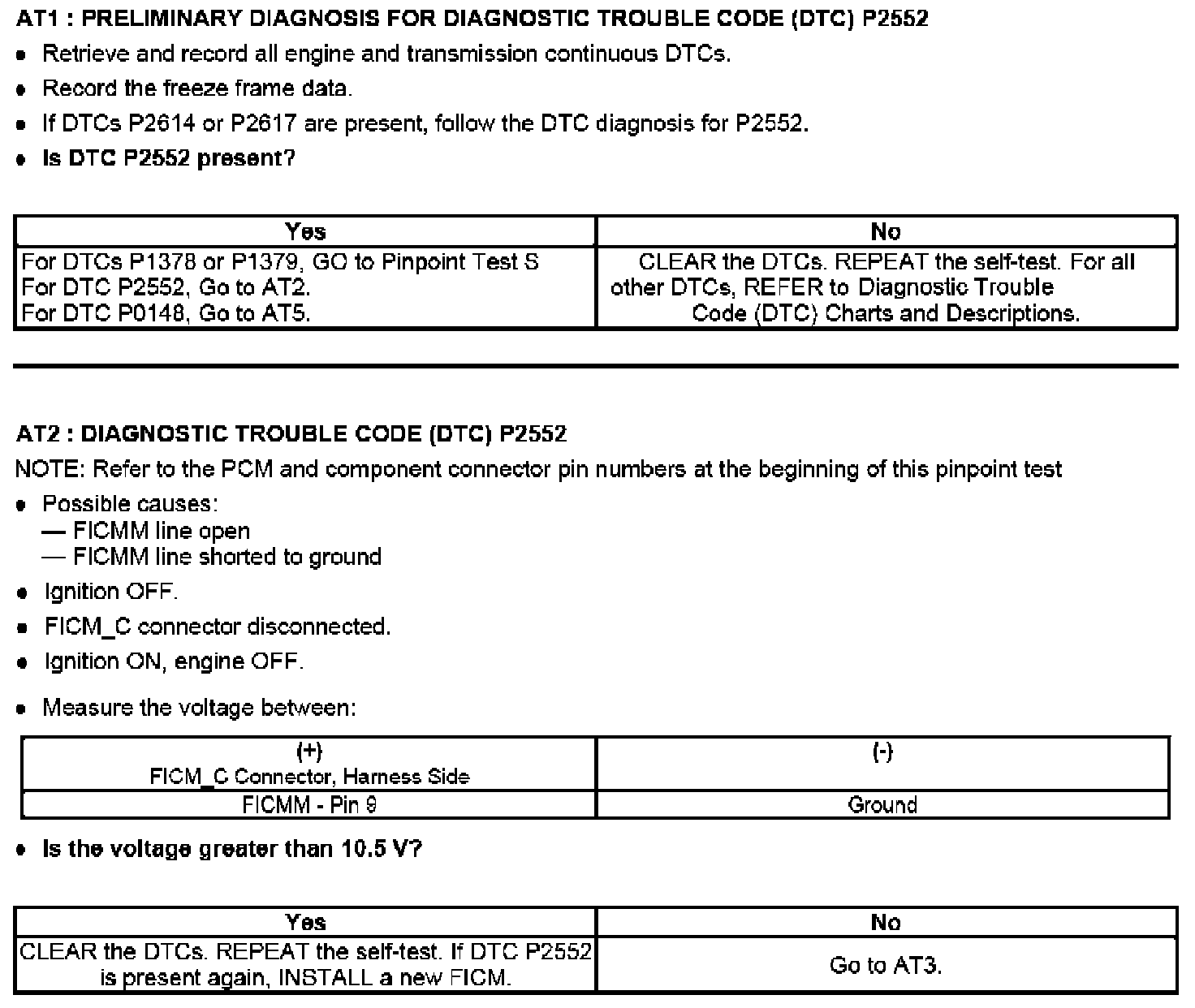

AT1 - AT2:

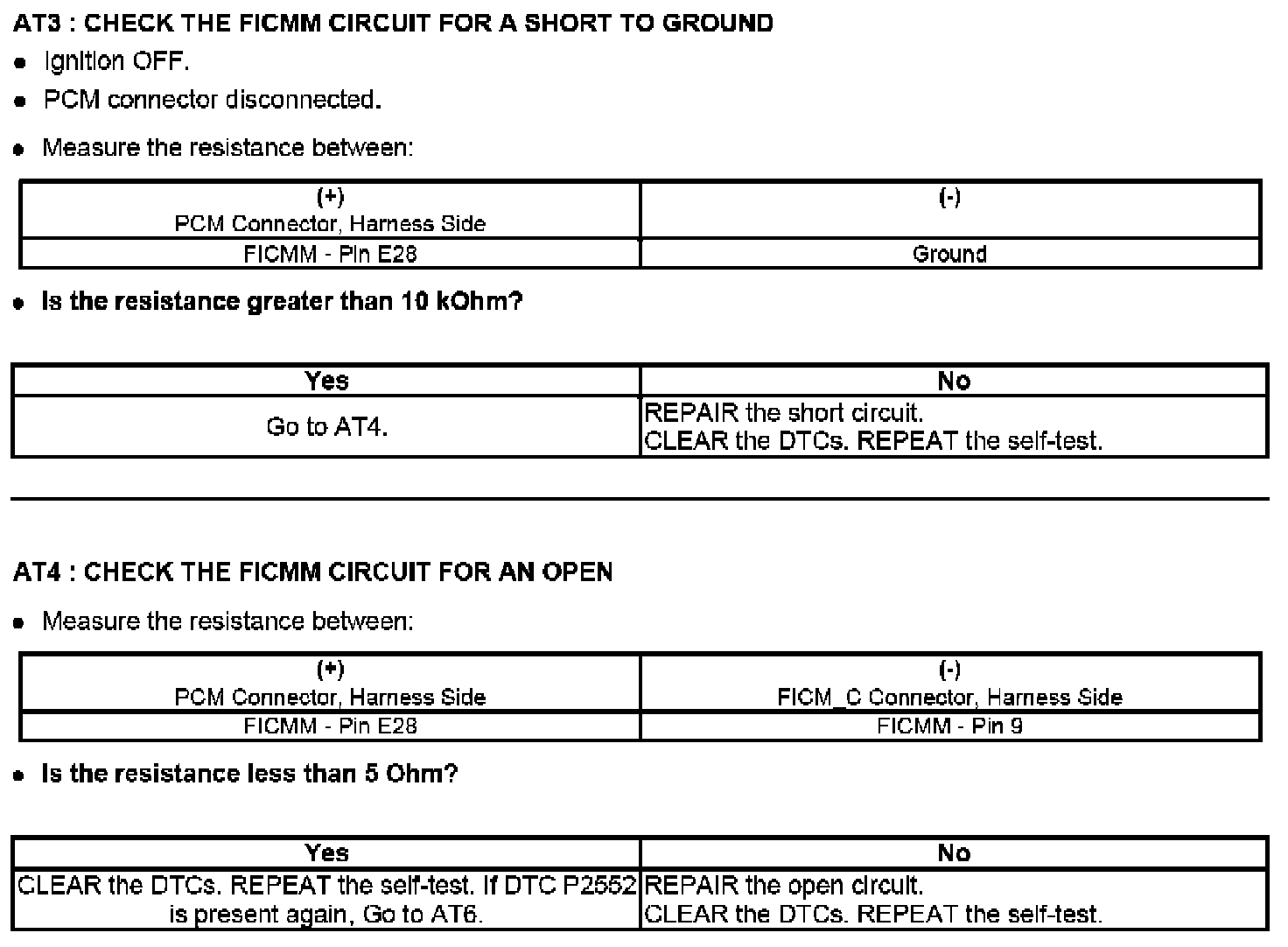

AT3 - AT4:

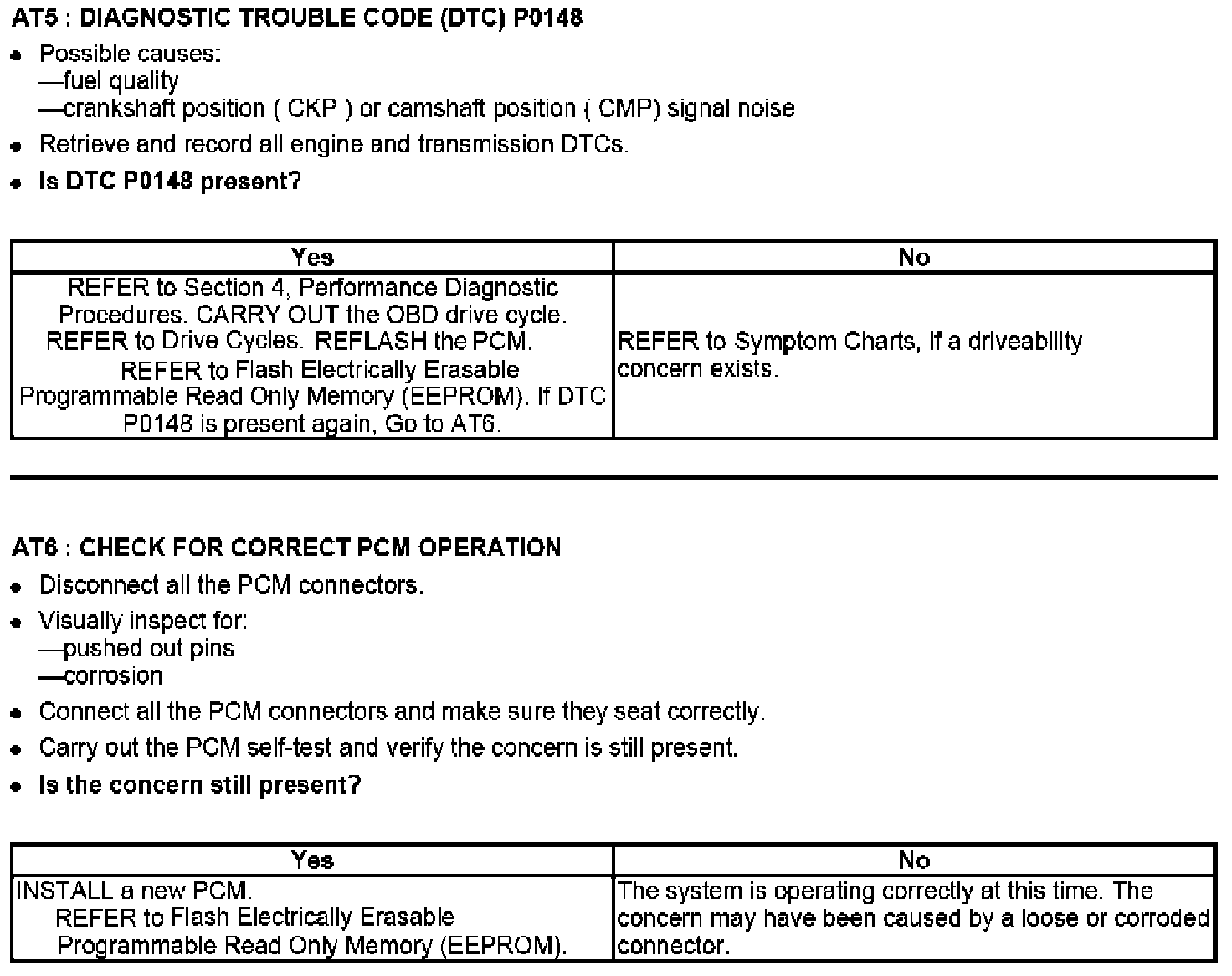

AT5 - AT6:
