Fuel Pump Control Unit: Service and Repair

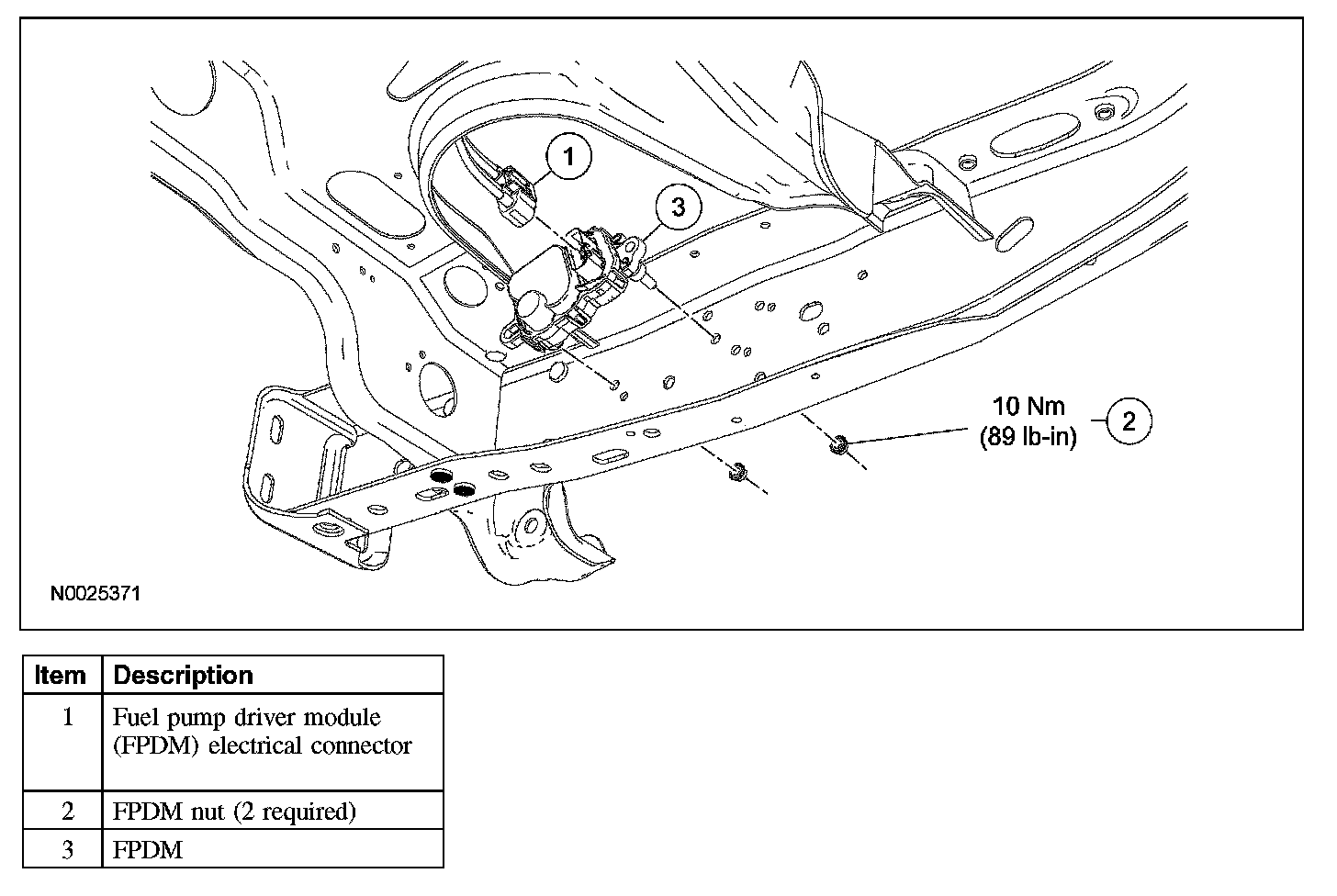

FUEL PUMP DRIVER MODULE (FPDM)Removal and Installation 1.
With the vehicle in NEUTRAL, position it on a hoist.
2.
NOTE: The fuel pump driver module (FPDM) is mounted to the left inside frame rail.
Disconnect the FPDM electrical connector.
3.
Remove the 2 retaining nuts and FPDM.
-
To install, tighten to
10 Nm (89 lb-in).
4.
To install, reverse the removal procedure.
