No DTCs Present Symptom Chart



Chart 1:





Chart 2:

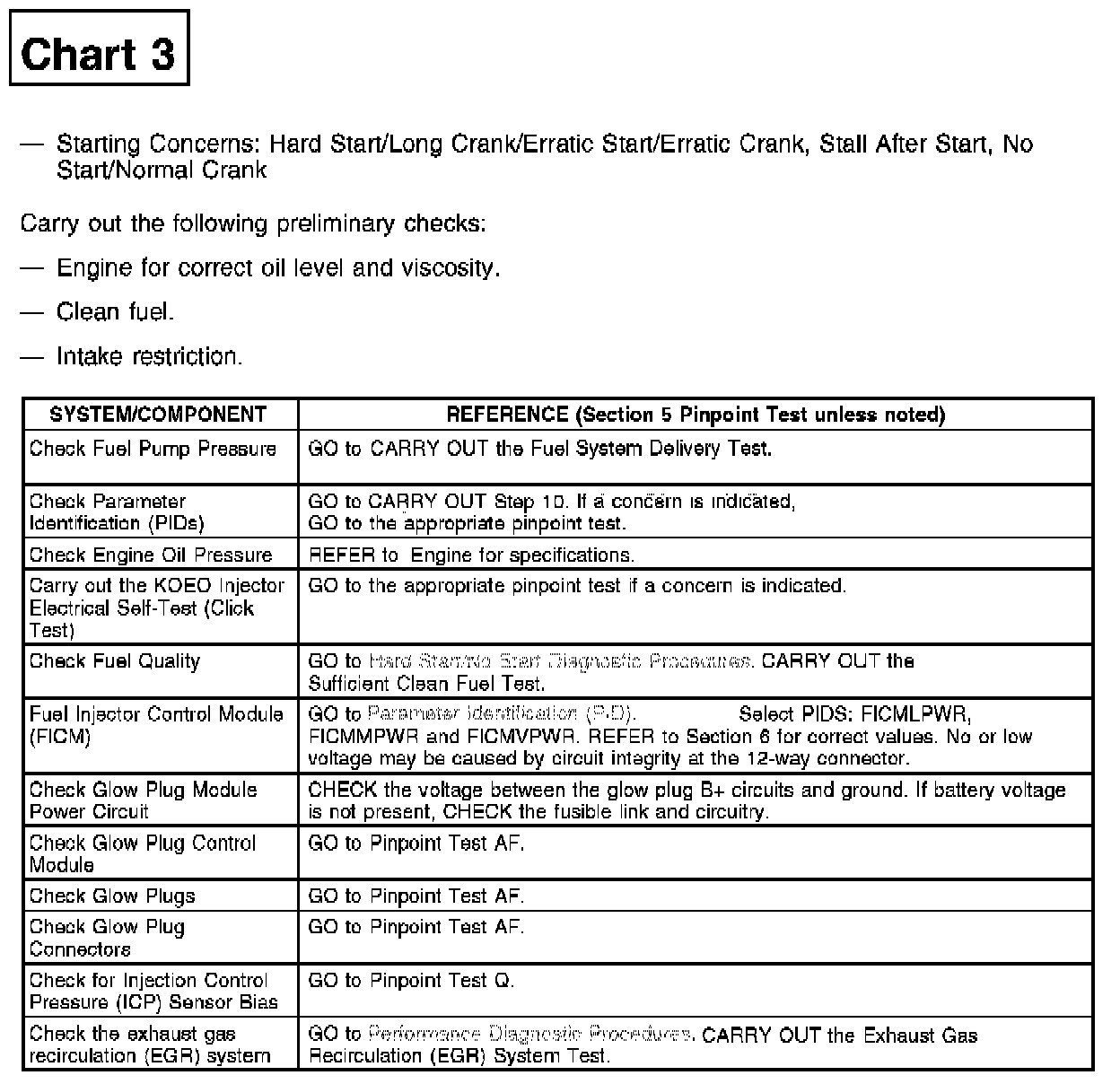

Chart 3:





Chart 4:

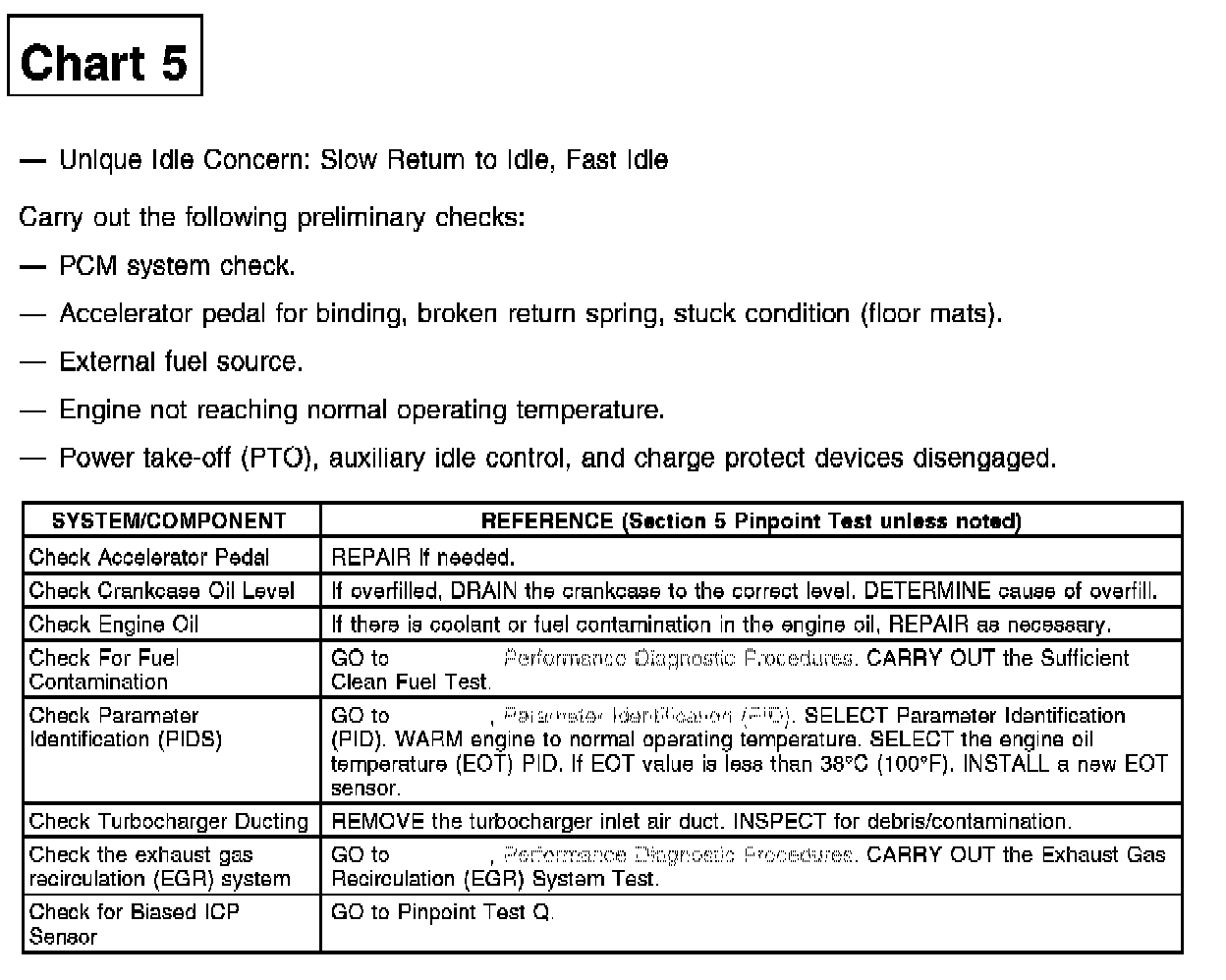

Chart 5:

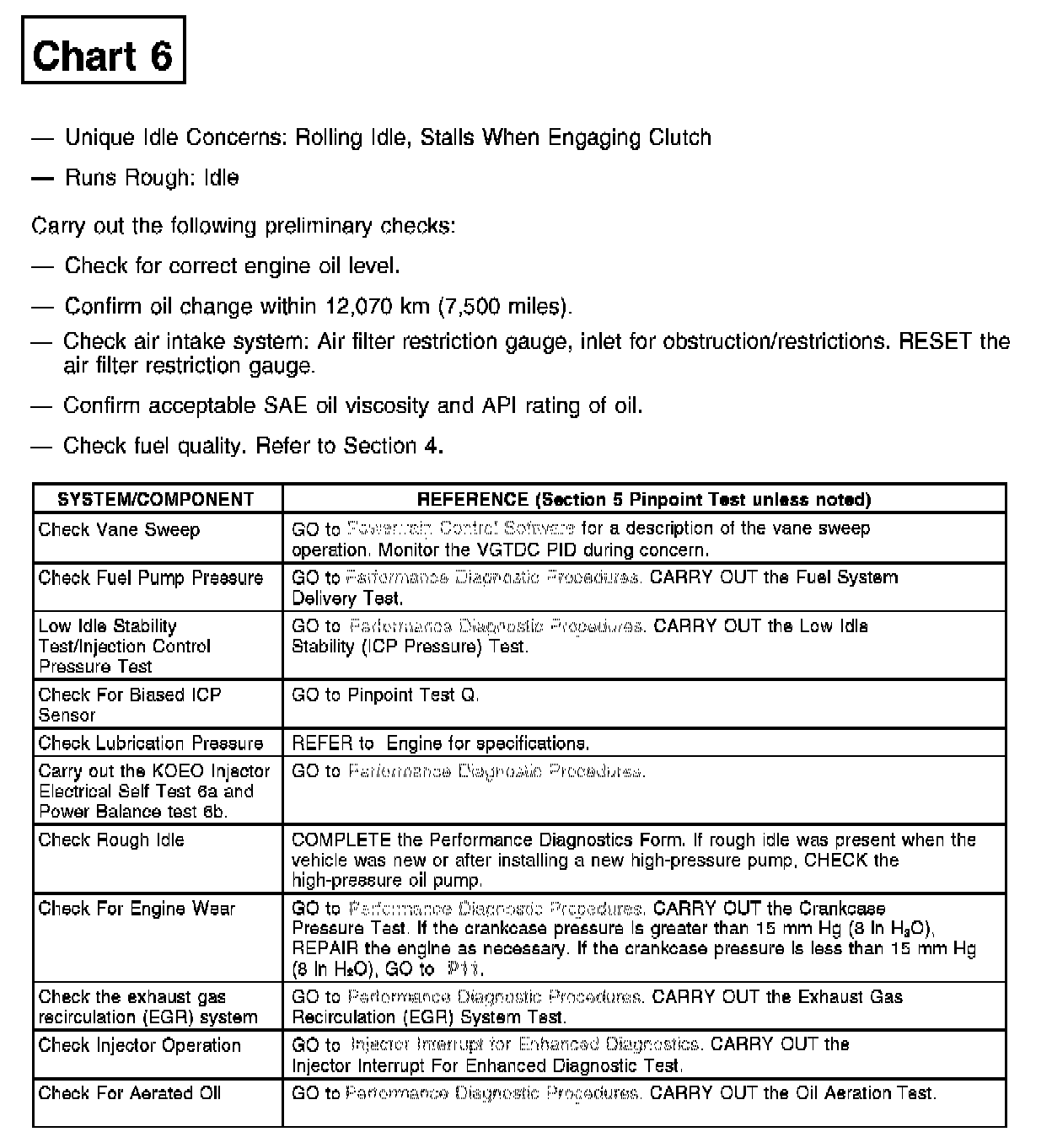

Chart 6:

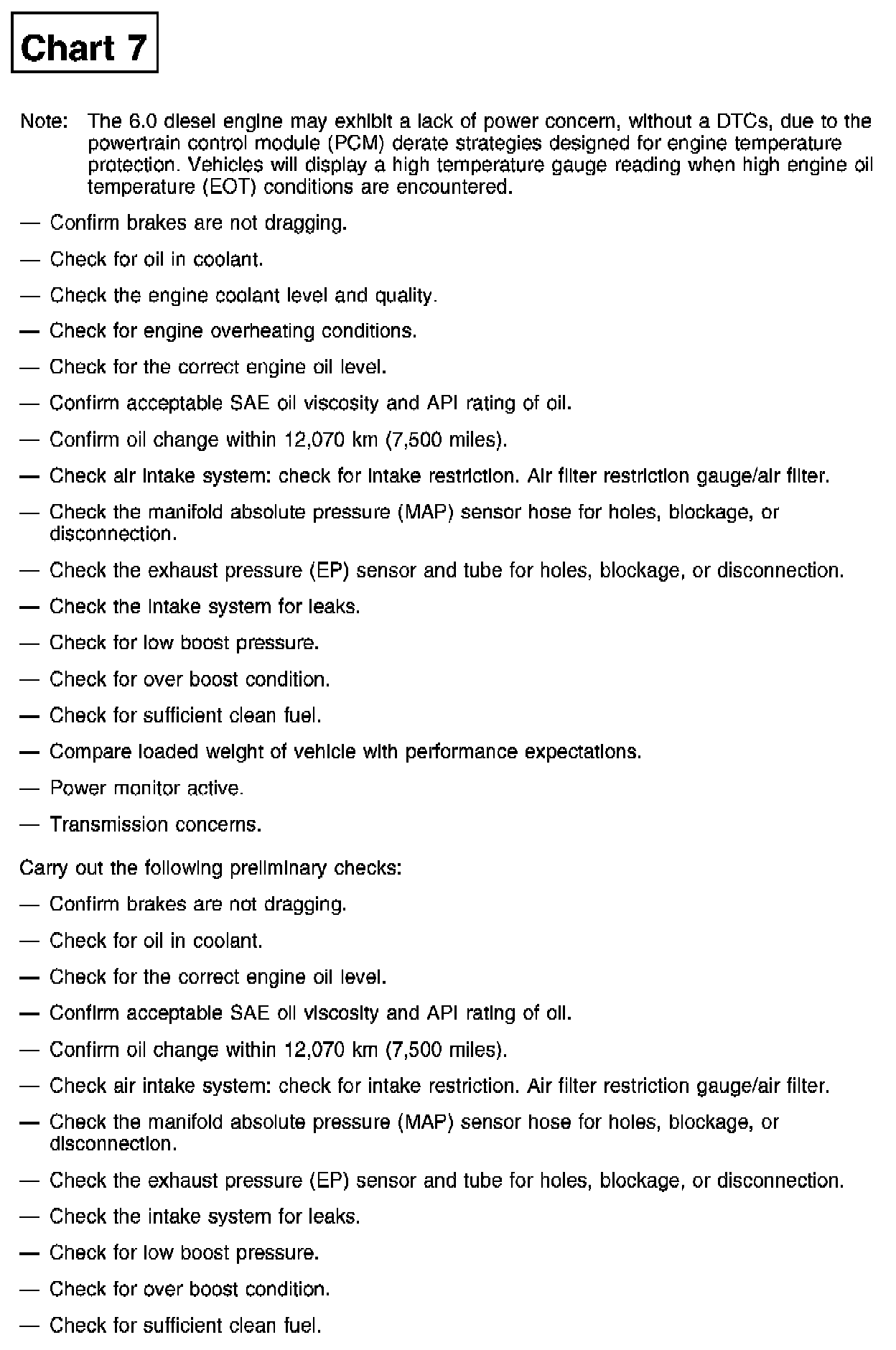

Chart 7:

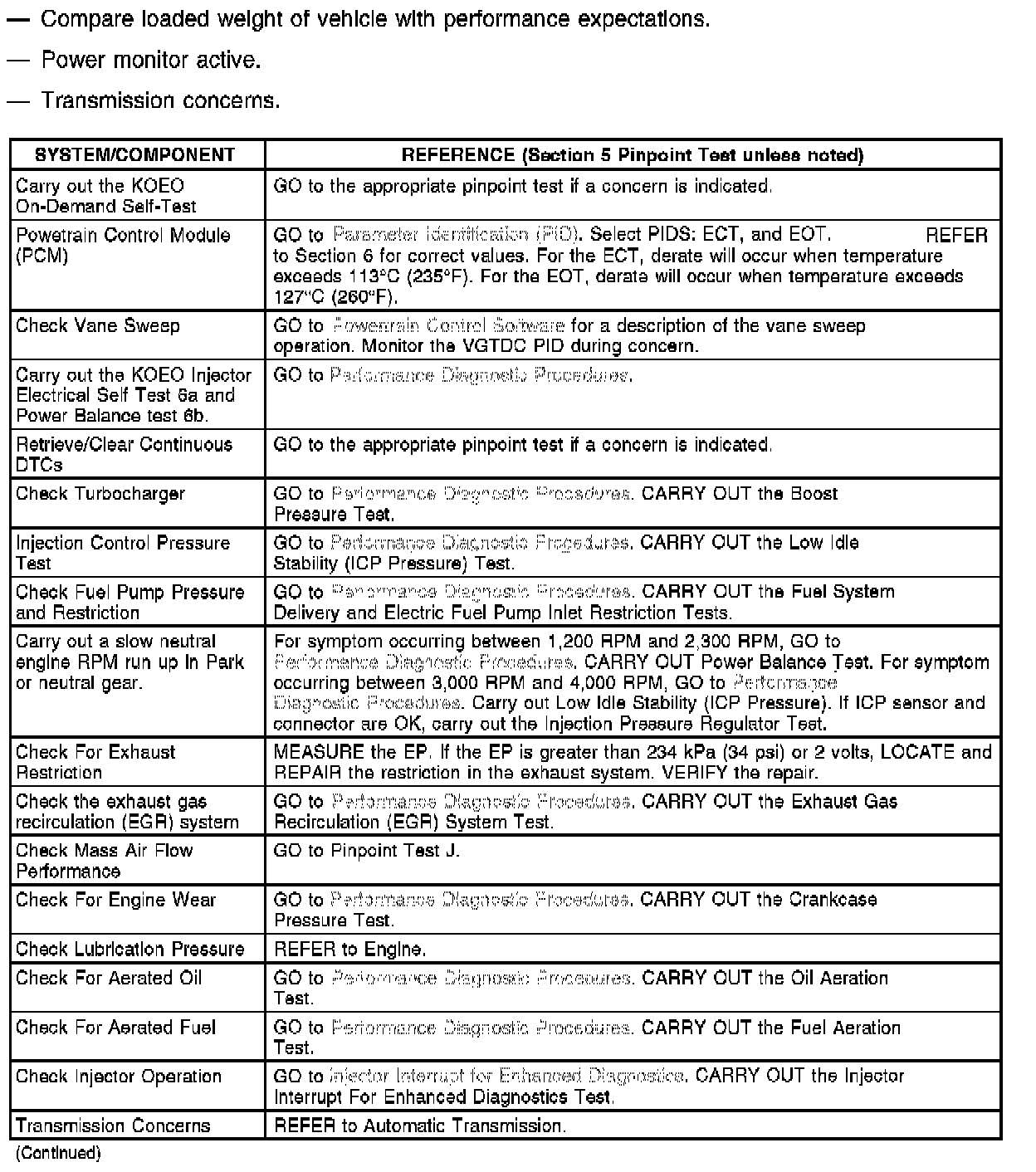

Chart 7:





Chart 7:





Chart 8:

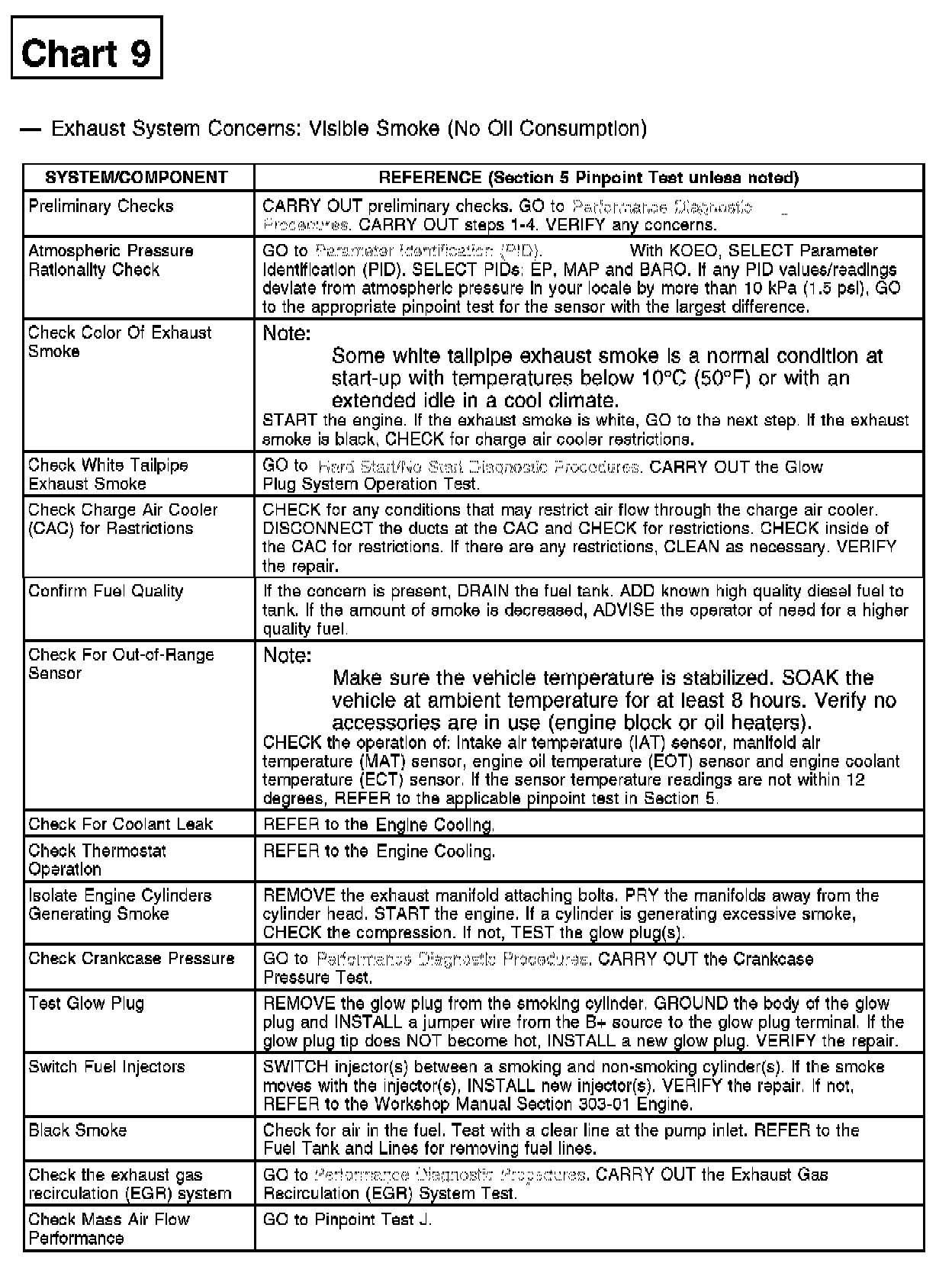

Chart 9:





Chart 10:

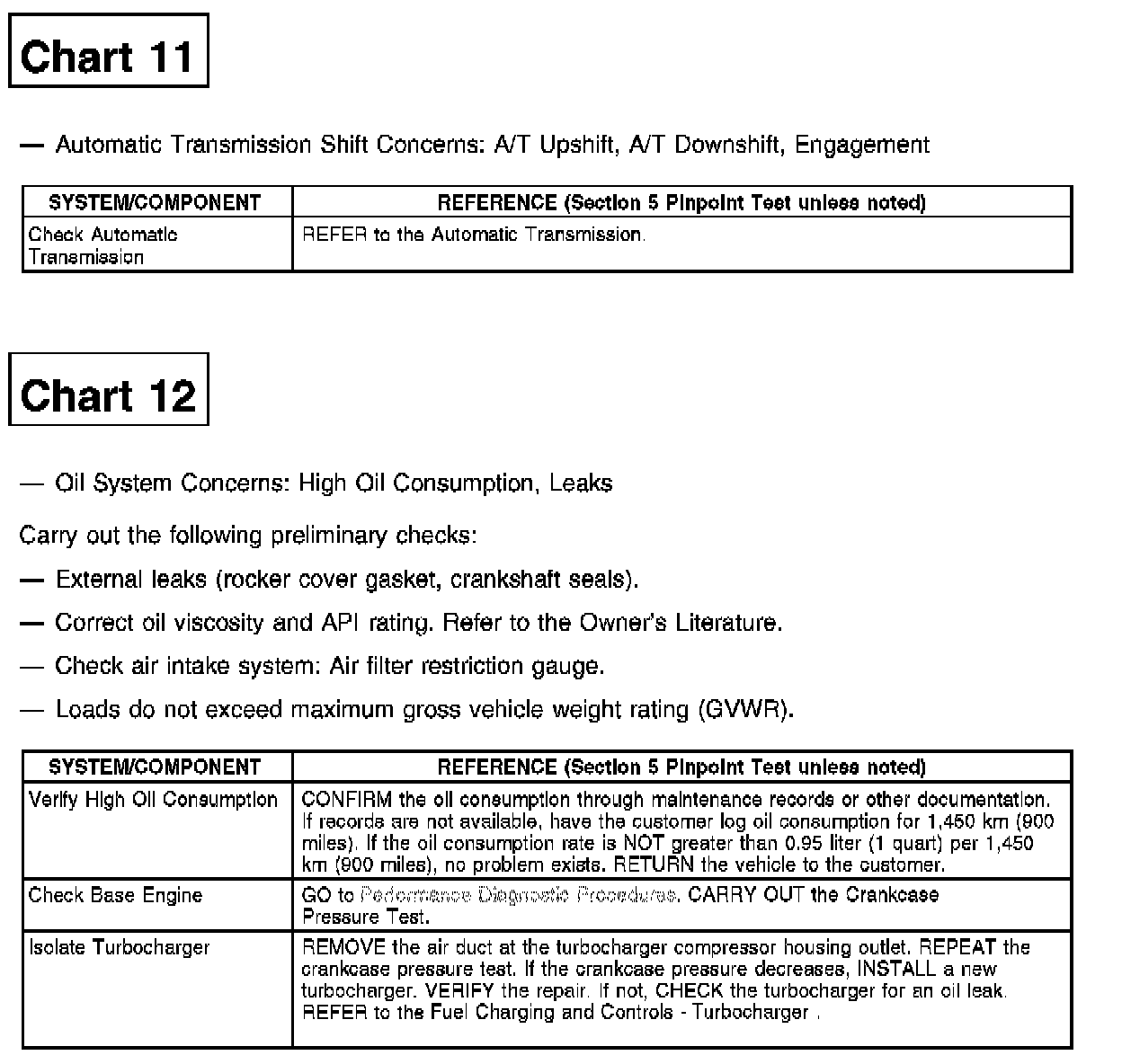

Chart 11 - 12:





Chart 13 - 14:
