Antenna: Service and Repair

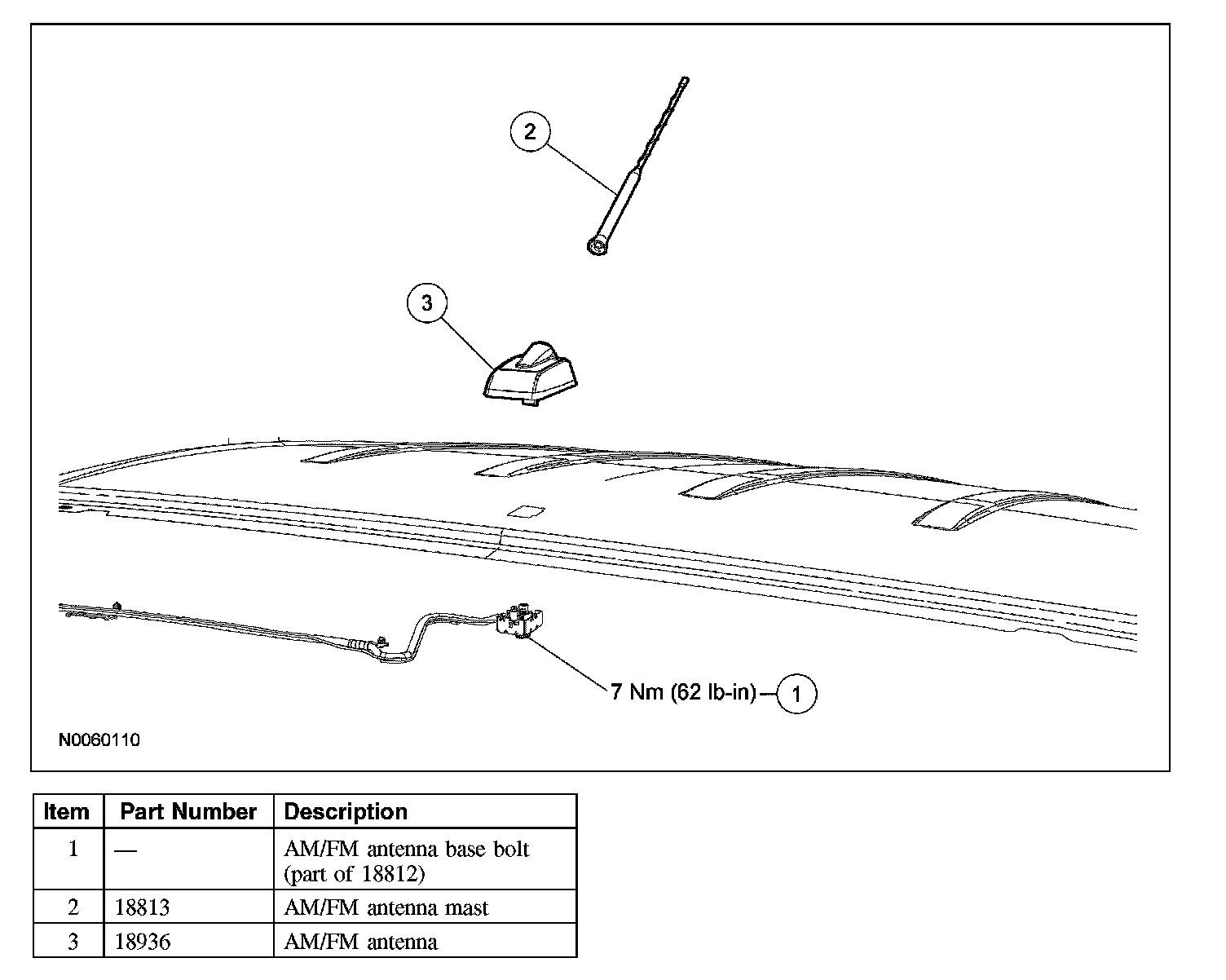

ANTENNA - AM/FMRemoval and Installation 1.
Remove the AM/FM antenna mast, if desired.
2.
Remove the dome lamp.
3.
Loosen the AM/FM antenna base bolt.
-
To install, tighten to
7 Nm (62 lb-in).
4.
Remove the AM/FM antenna.
5.
To install, reverse the removal procedure.
