Pinpoint Tests
PINPOINT TEST A: THE UNIVERSAL TRANSMITTER IS INOPERATIVEA1:

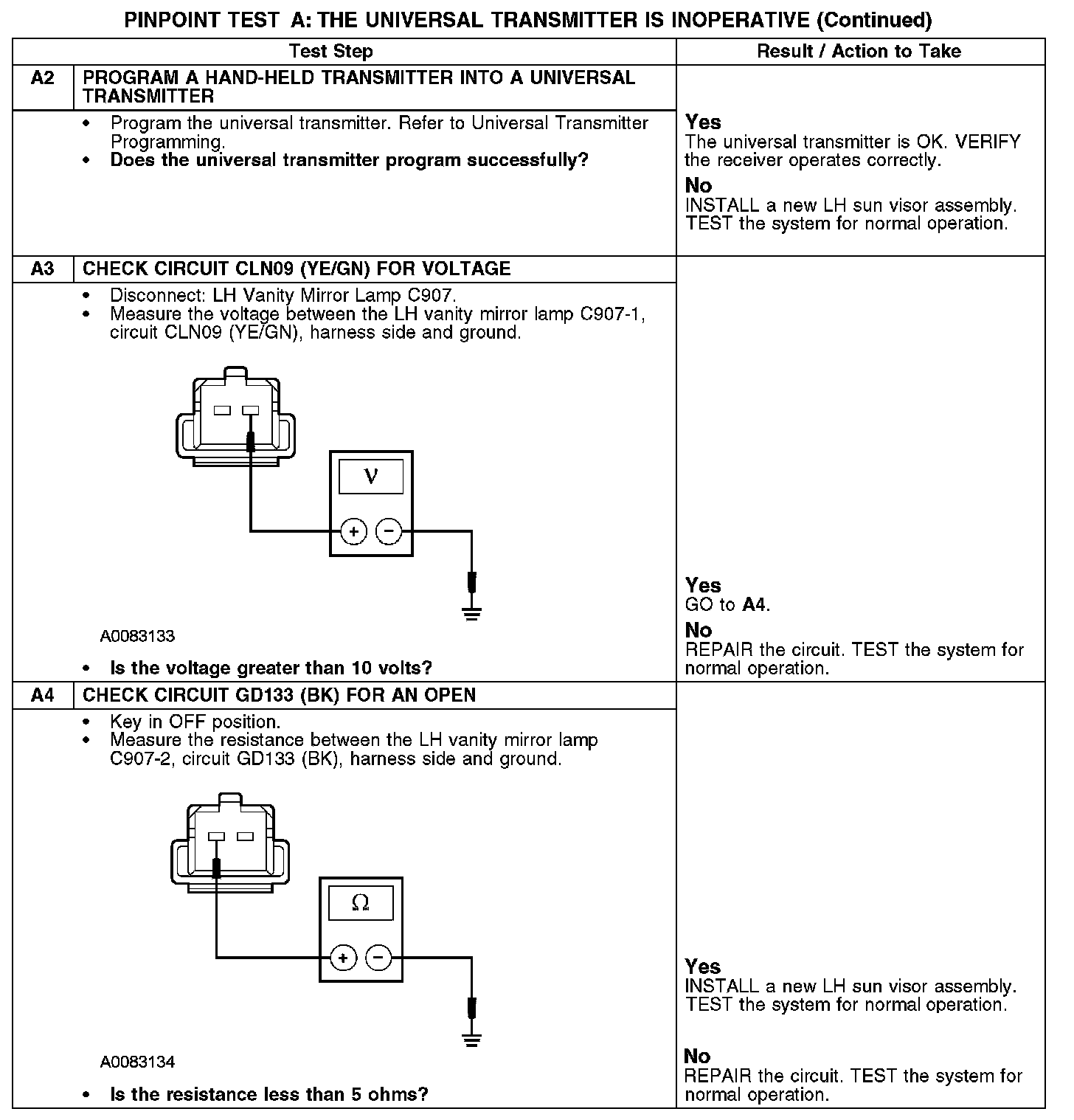

A2-A4:
Normal Operation The universal transmitter receives voltage on circuit CLN09 (YE/GN) and is grounded through circuit GD133 (BK).
Possible Causes -
Circuitry
-
Universal transmitter
-
Receiver unit
