Global Positioning System Antenna: Service and Repair

GLOBAL POSITIONING SYSTEM (GPS) ANTENNA

Removal and Installation

MKX
1. Remove the instrument cluster.

All vehicles
2. Remove the audio unit.

3. NOTE: For vehicles without THX(R) audio, the vehicle will have an upper storage bin, rather than an instrument panel speaker.

Remove the instrument panel speaker.

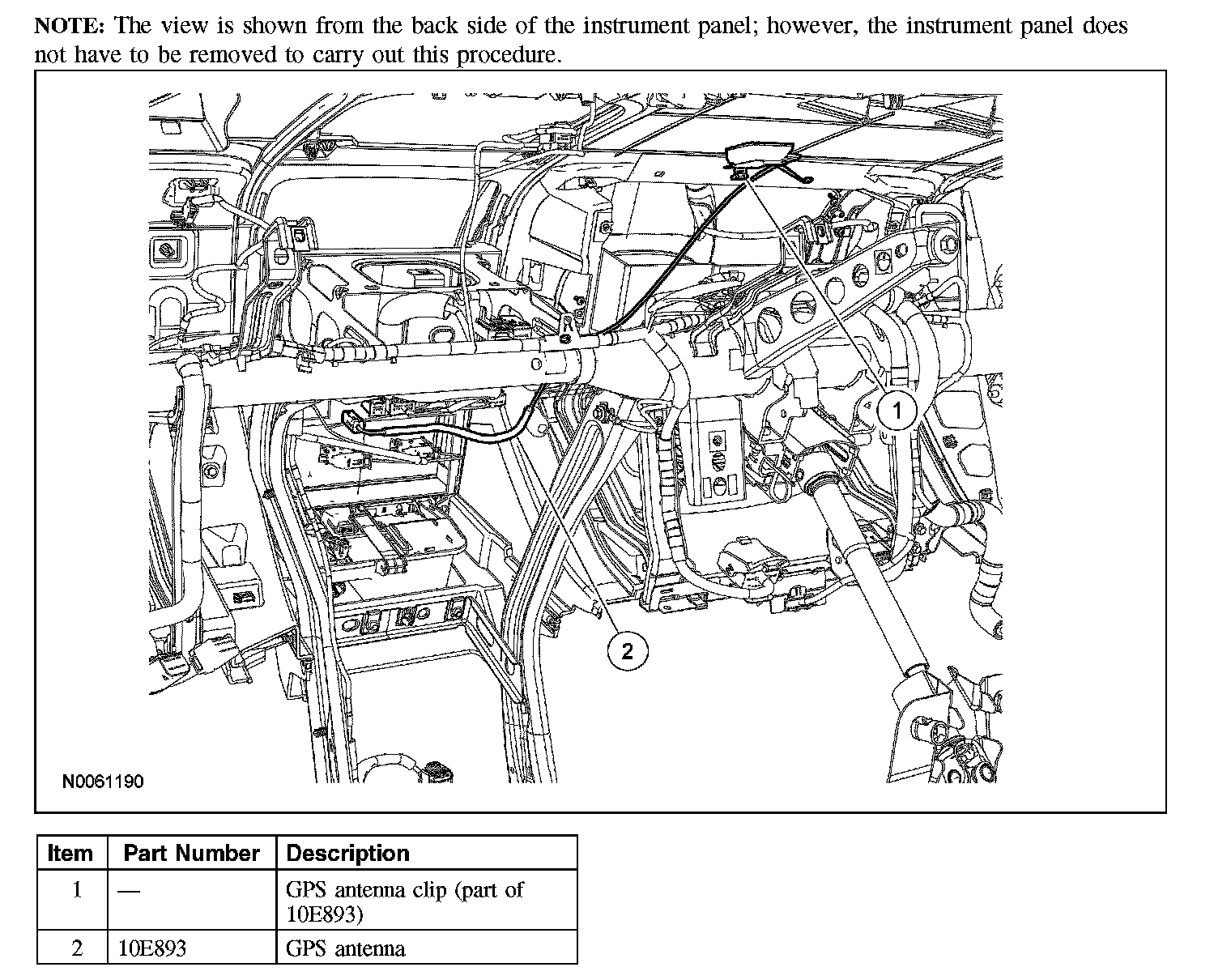

4. Release the clip and remove the GPS antenna.
5. To install, reverse the removal procedure.
