Quarter Trim Panel

INTERIOR TRIM - EXPLODED VIEW


Part 1:






Part 2:






QUARTER TRIM PANEL

Removal and Installation

LH side with power liftgate

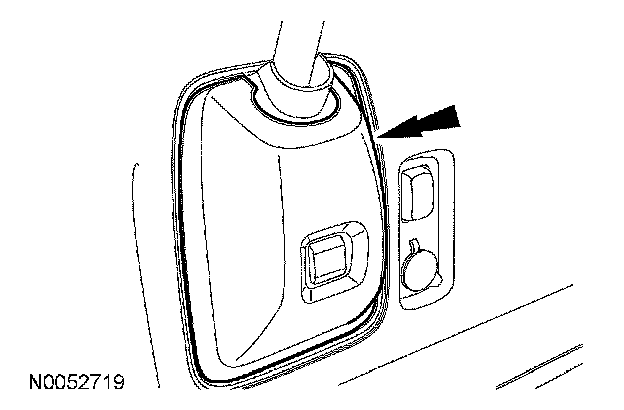

1. Remove the cover and the switch from the LH quarter trim panel.
- Disconnect the electrical connector.

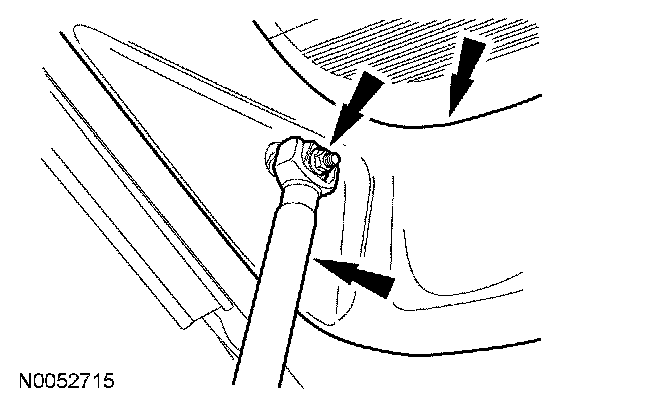

2. Remove the power liftgate rod-to-liftgate cover and nut.
- To install, tighten to 11 Nm (8 lb-ft).

All vehicles
3. Remove the rear cargo load area.
- Remove the foam blocks from the spare tire well.

4. NOTE: Inspect the safety belt lower anchor bolt cover for damage. If the safety belt lower anchor bolt cover does not remain in place, install a new cover.

Remove the safety belt lower anchor bolt cover and remove the safety belt lower anchor bolt.
- To install, tighten to 54 Nm (40 lb-ft).

5. NOTE: Make sure the pushpin retainers are removed with the quarter trim panel.

Remove the RH or LH quarter trim panel.
- Disconnect the electrical connectors, if equipped.

6. To install, reverse the removal procedure.
