Parking Brake Shoe: Service and Repair

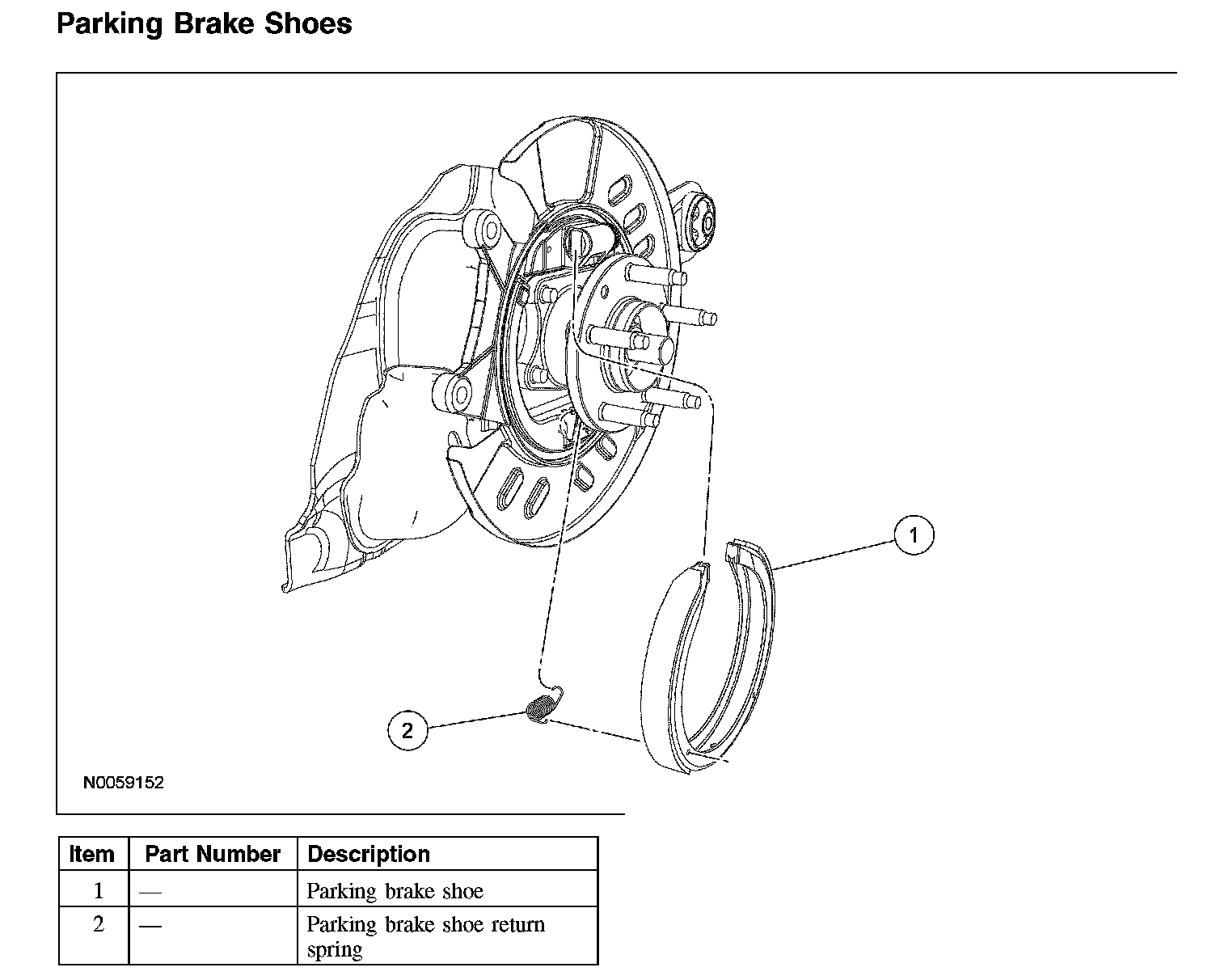

Parking Brake ShoesParking Brake Shoes:
Removal and Installation 1.
Remove the rear brake disc.
2.
Remove the
parking brake shoe return spring.
3.
Remove the
parking brake shoe.
4.
To install, reverse the removal procedure.
^
Check the parking brake for normal operation.
